125KVA Cummins Diesel Generator-50Hz
● GENLITEC POWER® 100KW/125KVA CUMMINS DIESEL GENERATOR SET FEATURES
○ Brand new original CUMMINS 6BTAA5.9-G2 brand water cooled diesel engine
○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 220/380V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system
● GENERATOR SET
Open Type Model
GPC125D5
Silent Type Model
GPC125S5
Prime Power
100KW/125KVA
Standby Power
110KW/138KVA
Phase & Wire
3 Phase, 4 Wire
Power Factor
0.8
Frequency
50Hz
Voltage
220/380V, 230/400V, 240/415V
Fuel Tank Capacity
200L
● DIESEL ENGINE
Model
CUMMINS 6BTAA5.9-G2
Cylinder Number
6
Aspiration System
Turbocharged, Charge After-Cooled
Cooling Method
Water Cooled
Governor Type
Electronic
Bore x Stroke
102 x 120 mm
Compression Ratio
17.3:1
Rated Speed
1500 RPM
Displacement
5.9L
Rated Power
120KW
Standby Power
130KVA
Fuel System
AD Type Pump
Oil Capacity
16.4L
Coolant Capacity
10L (Engine Only)
Electric Starting System
DC 24V
● FUEL CONSUMPTION
100% Prime Load
30L/H
75% Prime Load
23L/H
50% Prime Load
16L/H
25% Prime Load
9L/H
● ALTERNATOR
Number of Phase
3
Rated Power
100KW/125KVA
Frequency
50Hz
Power Factor
0.8
Poles
4
Temp. Rise
125K
Terminals
12
Insulation Type
H Class
Ambient Temp.
40℃
IP Rating
IP23
Excitation System
Self-Excited
Bearing
Single Bearing
Coating
Vacuum Impregnation
Voltage Regulator
A.V.R
Coupling
Flexible Disc
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

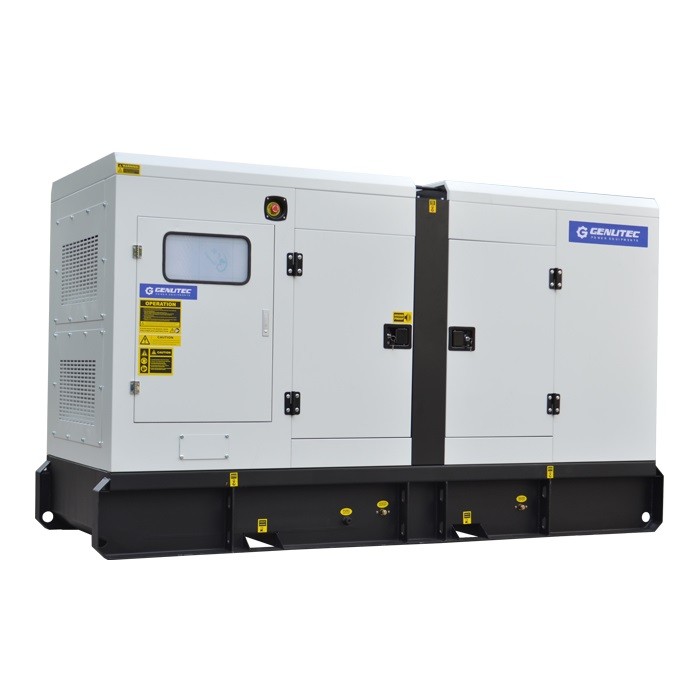

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS (for automatic start & stop when electricity power off & on)
○ Single axle trailer
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
