Short Description:

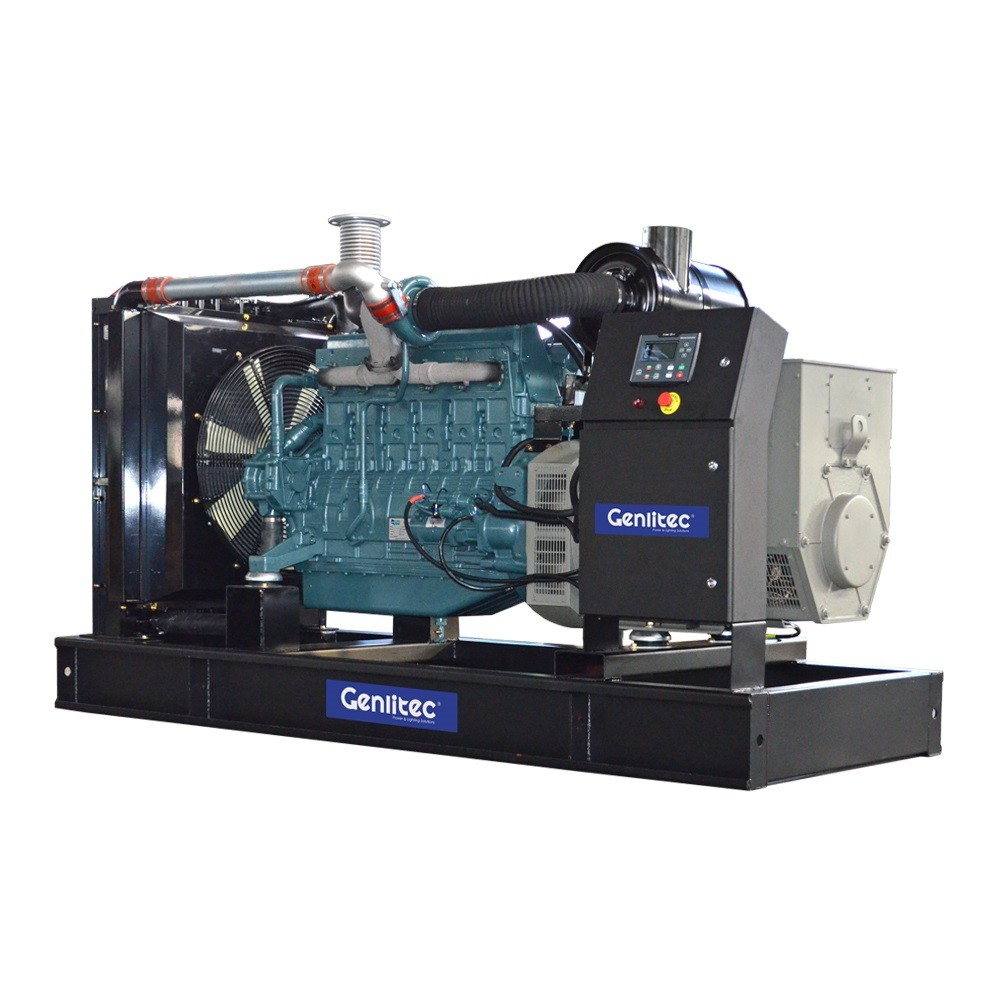

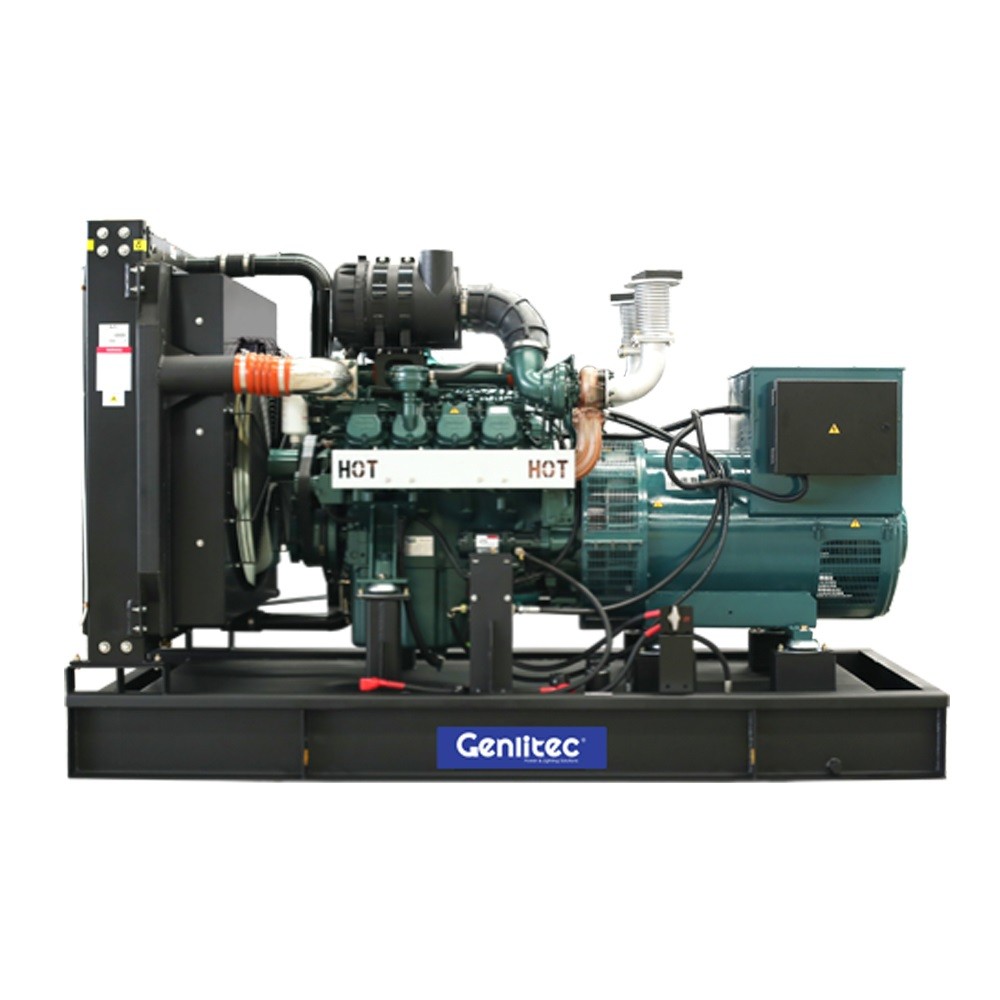

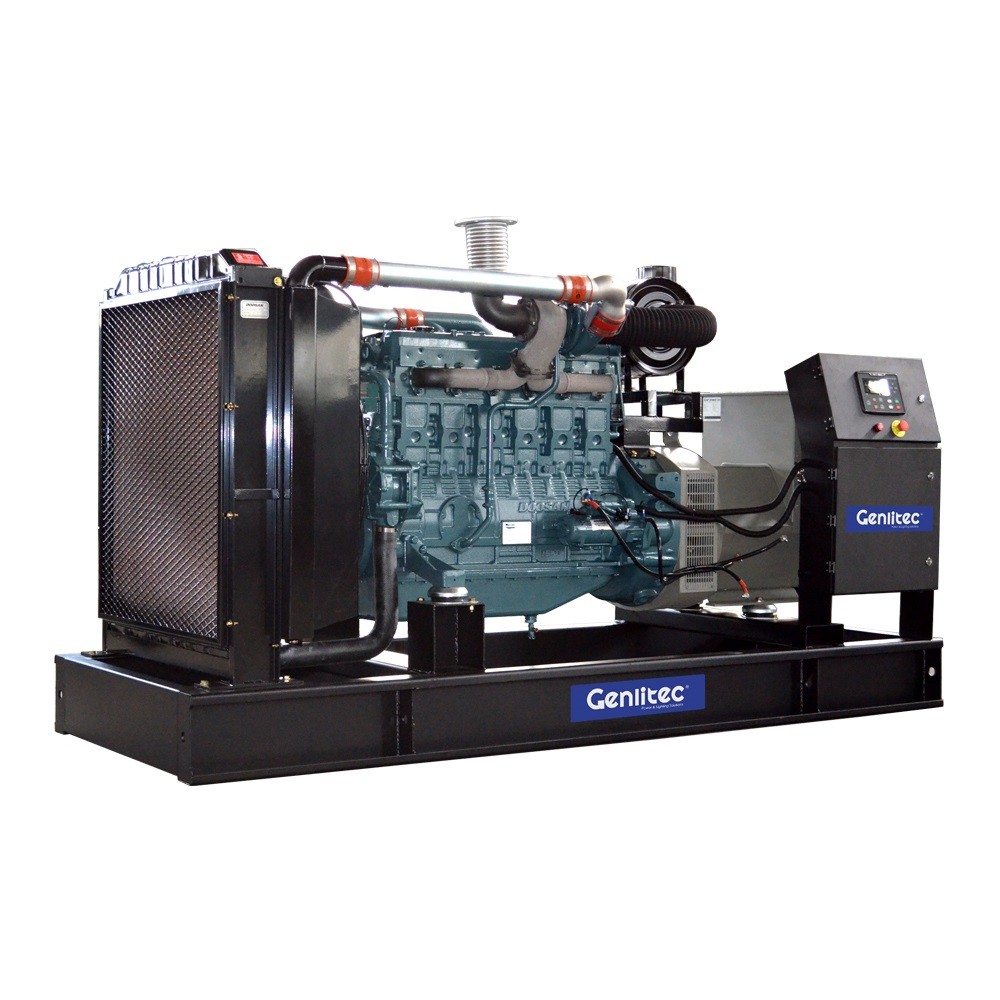

GENLITEC POWER® GDS150D5 (open type), GDS150S5 (silent type) powered by original DOOSAN diesel engine P086TI-I, with prime power 120KW/150KVA and standby power 132KW/165KVA....


  • Model: GDS150D5 | GDS150S5
  • Engine: DOOSAN P086TI-I
  • Prime Power: 120KW/150KVA
  • Standby Power: 132KW/165KVA
  • Voltage: 220/380V | 230/400V | 240/415V

Product Details

Product Tags

120KW/150KVA DOOSAN DIESEL GENERATOR SET SPECIFICATIONS

  • Standby Power: 132KW/165KVA
  • Prime Power: 120KW/150KVA
  • Frequency: 50Hz
  • Speed: 1500 RPM
  • Voltage: 220/380V (230/400V or 240/415V available according to different countries)
  • Fuel Tank Capacity: 8~10 hours continuous running


ENGINE

  • Powered by: DOOSAN
  • Engine Model: P086TI-I


ALTERNATOR

  • Alternator Model: GENLITEC S274G120 (STAMFORD & LEROY SOMER alternators for options)
  • High Efficiency
  • IP23 Protection


CONTROL PANEL

  • Emergency stop button
  • Main circuit breaker
  • Float baterry charger
  • Manual/Autostart control panel
  • Fuel level meter
  • Controller power switch
  • Alarm buzzer


SOUND ATTENUATED ENCLOSURE

  • Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
  • Highly Corrosion Resistant Construction


WARRANTY

  • 12 months or 1000 working hours, whichever comes first


OPTIONS

  • ATS (for automatic start & stop when electricity power off & on)
  • Trailer Type
  • 12 hours fuel tank
  • 24 hours fuel tank
  • Power Sockets (CEE or AUS standard)
  • Remote & Monitoring System
