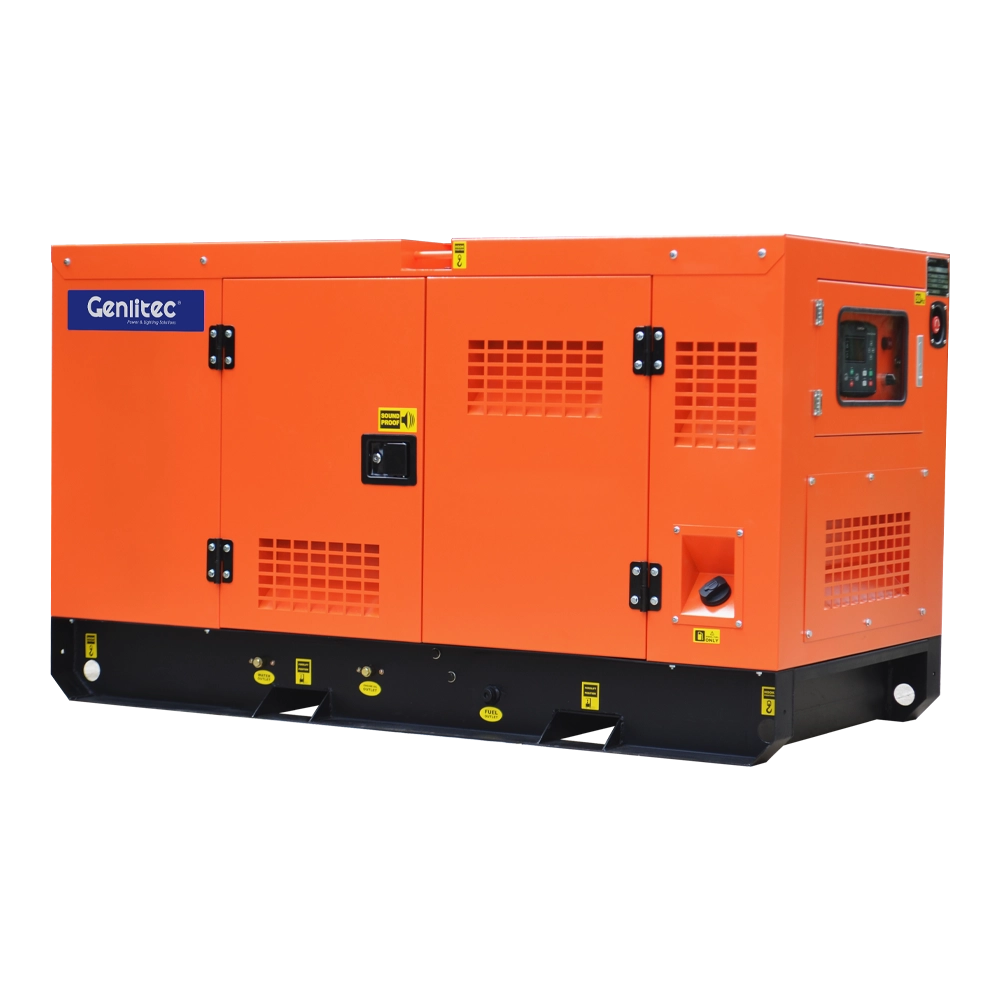

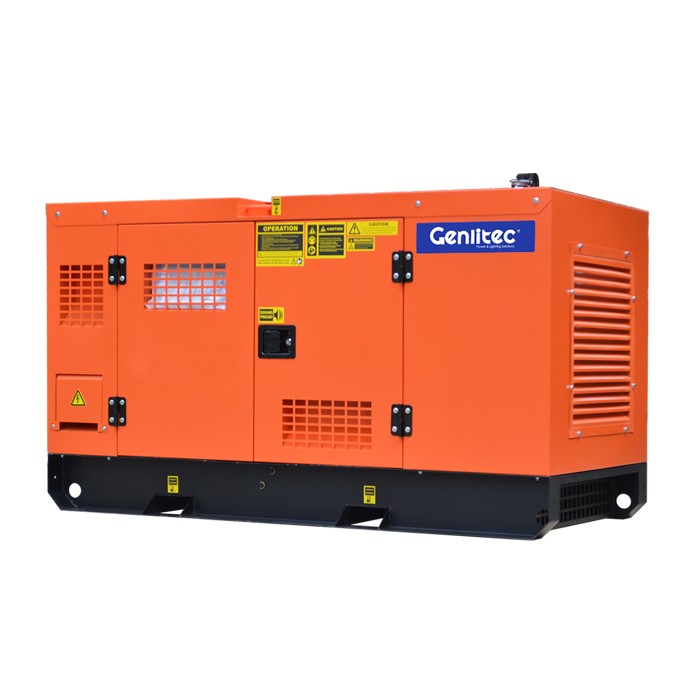

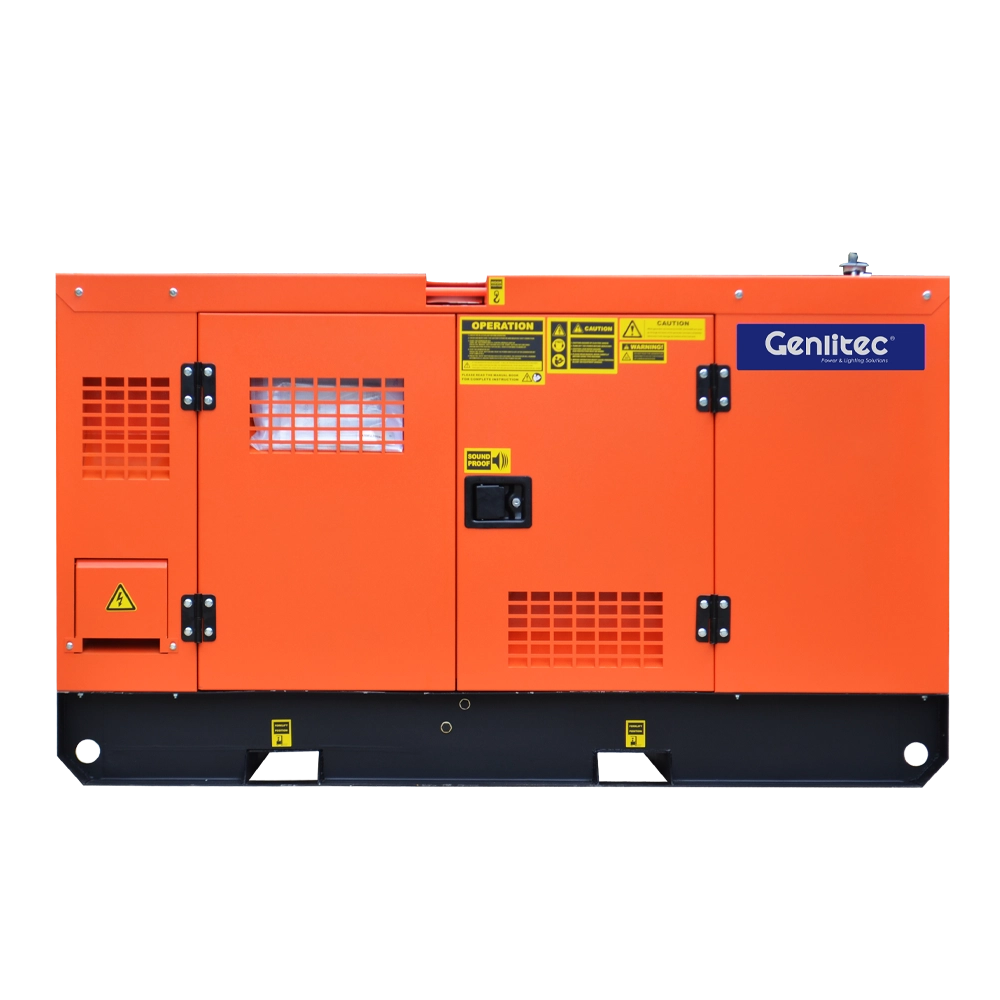

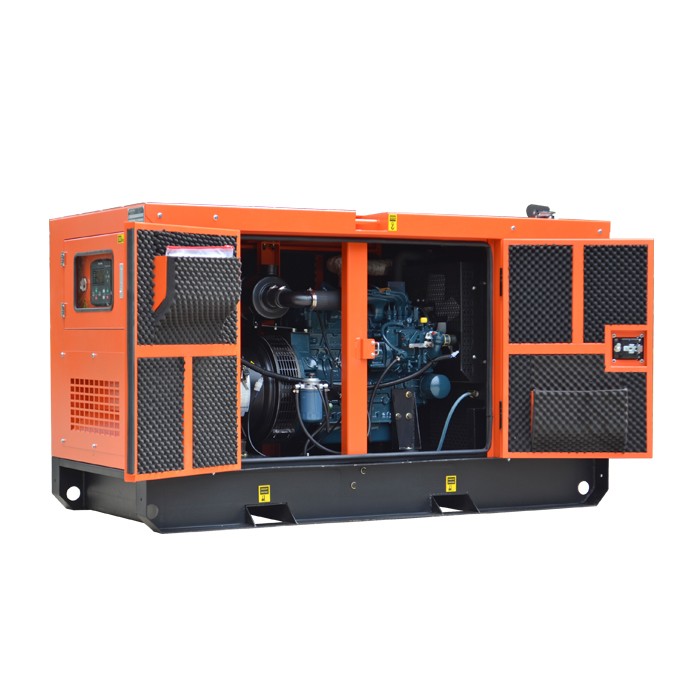

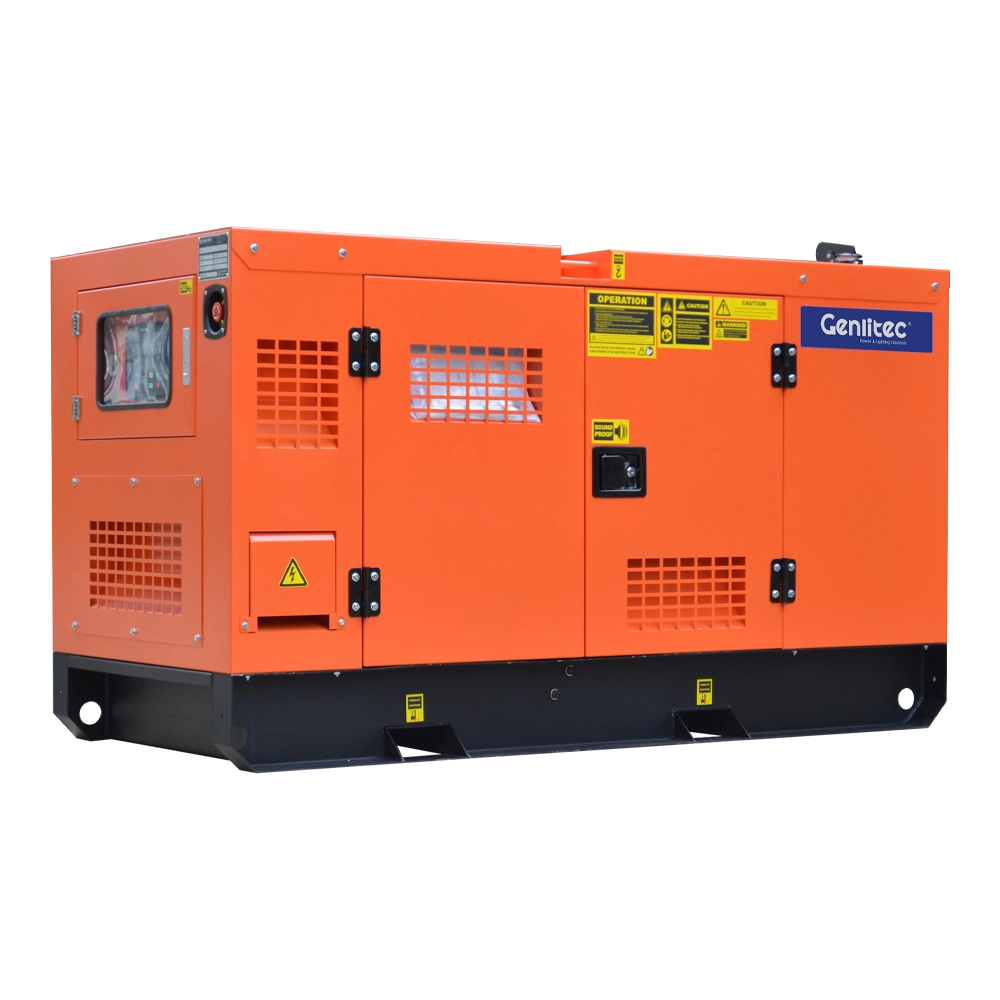

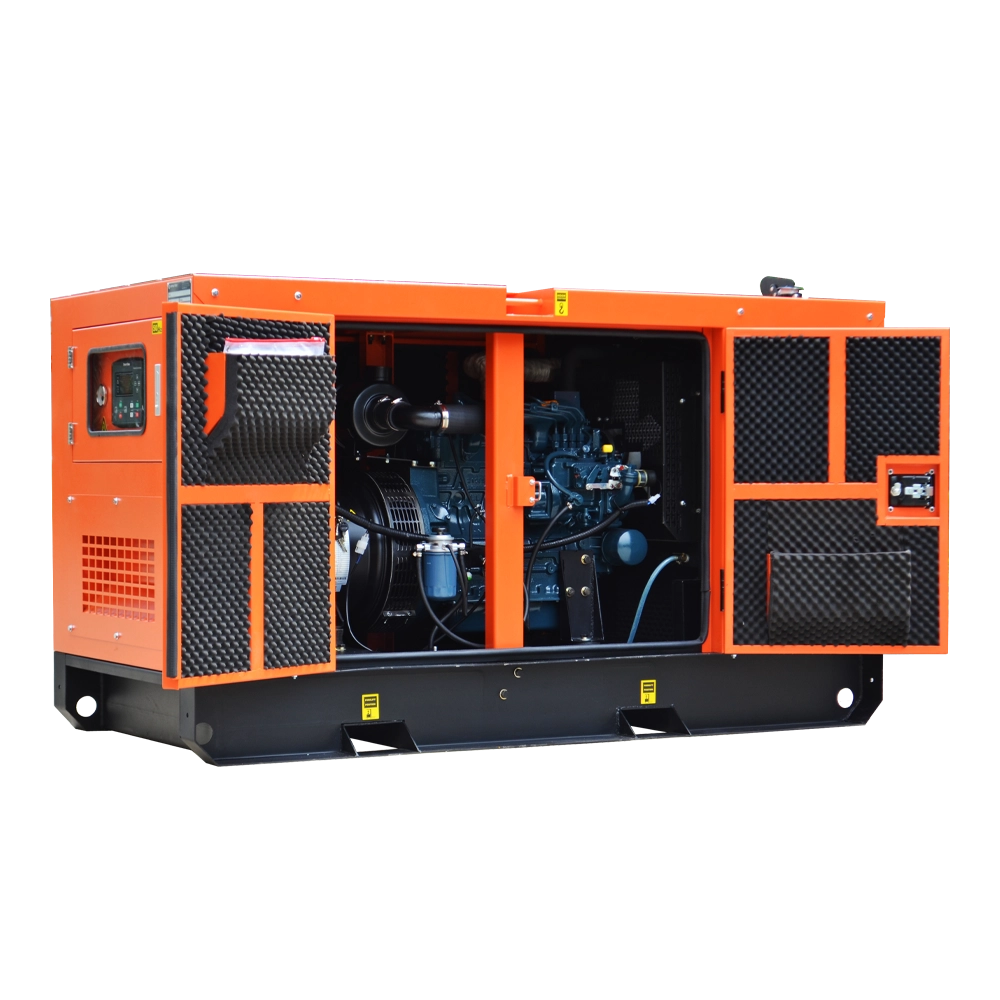

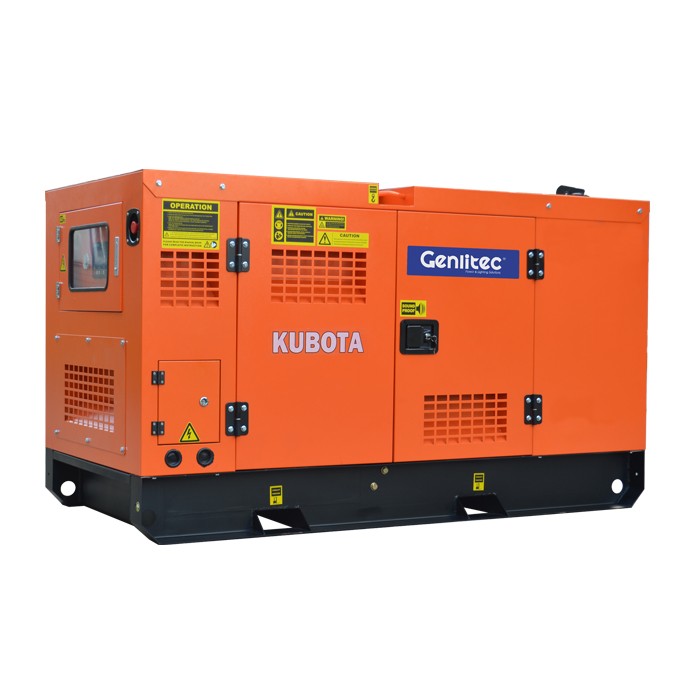

18KVA Kubota Diesel Generator-50Hz
● GENLITEC POWER® 15KW/18KVA KUBOTA DIESEL GENERATOR SET FEATURES
○ Brand new original KUBOTA V2203-E2BG-CHN brand water cooled diesel engine
○ STAMFORD or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 12V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system
● GENERATOR SET

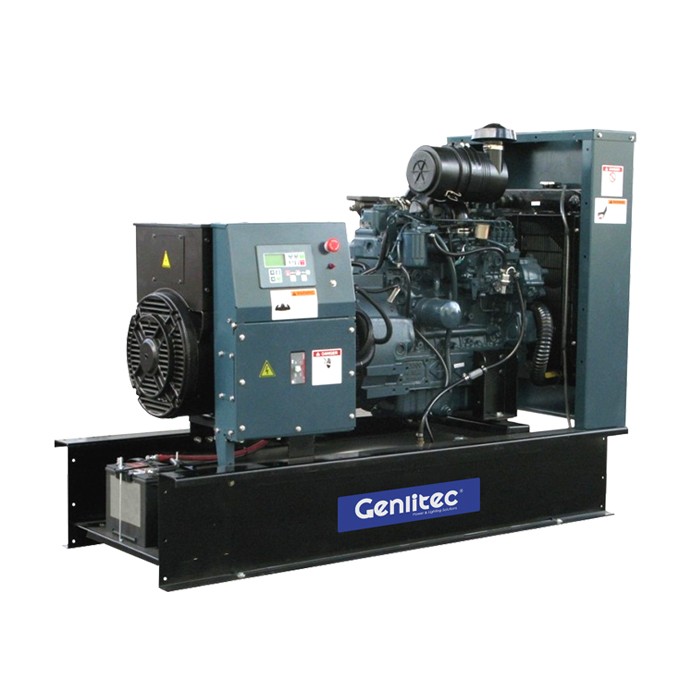

Open Type Model
GPK18D5
Silent Type Model
GPK18S5
Frequency
50Hz
Phase & Wires
3 Phase, 4 Wires
Power Factor
0.8
Prime Power
15KW/18KVA
Standby Power
16.5KW/21KVA
Rated Voltage
380~415V
Fuel Tank Capacity
35L
● DIESEL ENGINE
Engine Model
Kubota V2203-E2BG-CHN
Aspiration System
Natural
Cooling Method
Water Cooled
Combustion System
E-TVCS
Bore x Stroke
87 x 92.4mm
Compression Ratio
23:1
Rated Speed
1500 RPM
Displacement
2.197L
Rated Power
17.2KW
Standby Power
20.1KW
Fuel Injection Pump
Bosch Type PFR MD Pump
Cylinder Number
4
Oil Capacity
9.7L
Charger Alternator Capacity
12V
Electric Starting System
DC 12V
● FUEL CONSUMPTION
100% Prime Load
5.0L/H
75% Prime Load
3.8L/H
50% Prime Load
2.7L/H
25% Prime Load
1.5L/H
● ALTERNATOR
Coupling
Flexible Disc
Number of Phase
3
Rated Power
15KW/18.75KVA
Frequency
50Hz
Power Factor
0.8
Poles
4
Temp. Rise
125K
Insulation Class
H
Ambient Temp.
40℃
IP Rating
IP23
Excitation System
Self-excited
Bearing
Single
Coating
Vacuum Impregnation
Voltage Regulator
A.V.R
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer
● GENLITEC POWER® D-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS (for automatic start & stop when electricity power off & on)
○ Heavy-Duty trailer
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
○ Heaters
