200KW/250KVA DOOSAN DIESEL GENERATOR SET SPECIFICATIONS

• Standby Power: 220KW/275KVA
• Prime Power: 200KW/250KVA
• Frequency: 60Hz
• Speed: 1800 RPM
• Voltage: 120/208V (110/190V, 127/220V, 254/440V or 277/480V available according to different countries)
• Fuel Tank Capacity: 8~10 hours continuous running

ENGINE

• Powered by: DOOSAN
• Engine Model: DP086LA

ALTERNATOR

• Alternator Model: GENLITEC S274G200 (STAMFORD & LEROY SOMER alternators for options)
• High Efficiency
• IP23 Protection

CONTROL PANEL

• Emergency stop button
• Main circuit breaker
• Float baterry charger
• Manual/Autostart control panel
• Fuel level meter
• Controller power switch
• Alarm buzzer

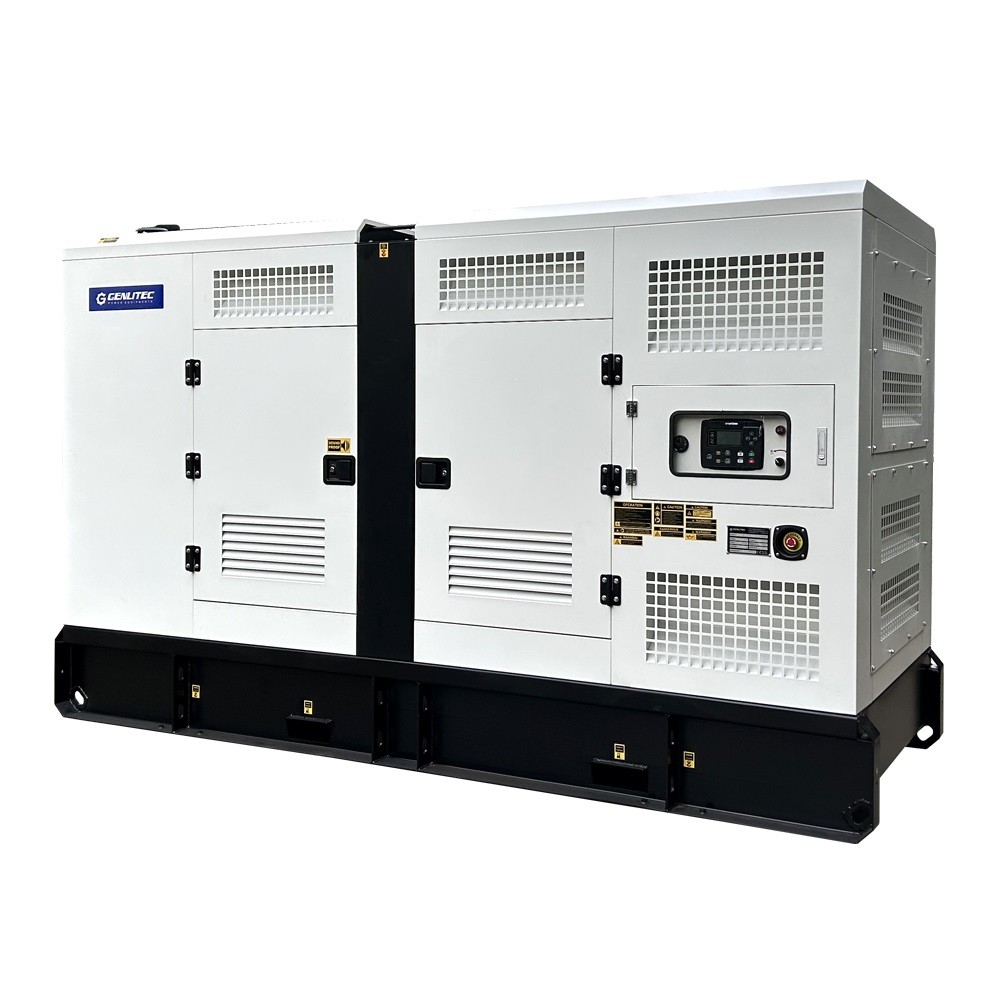

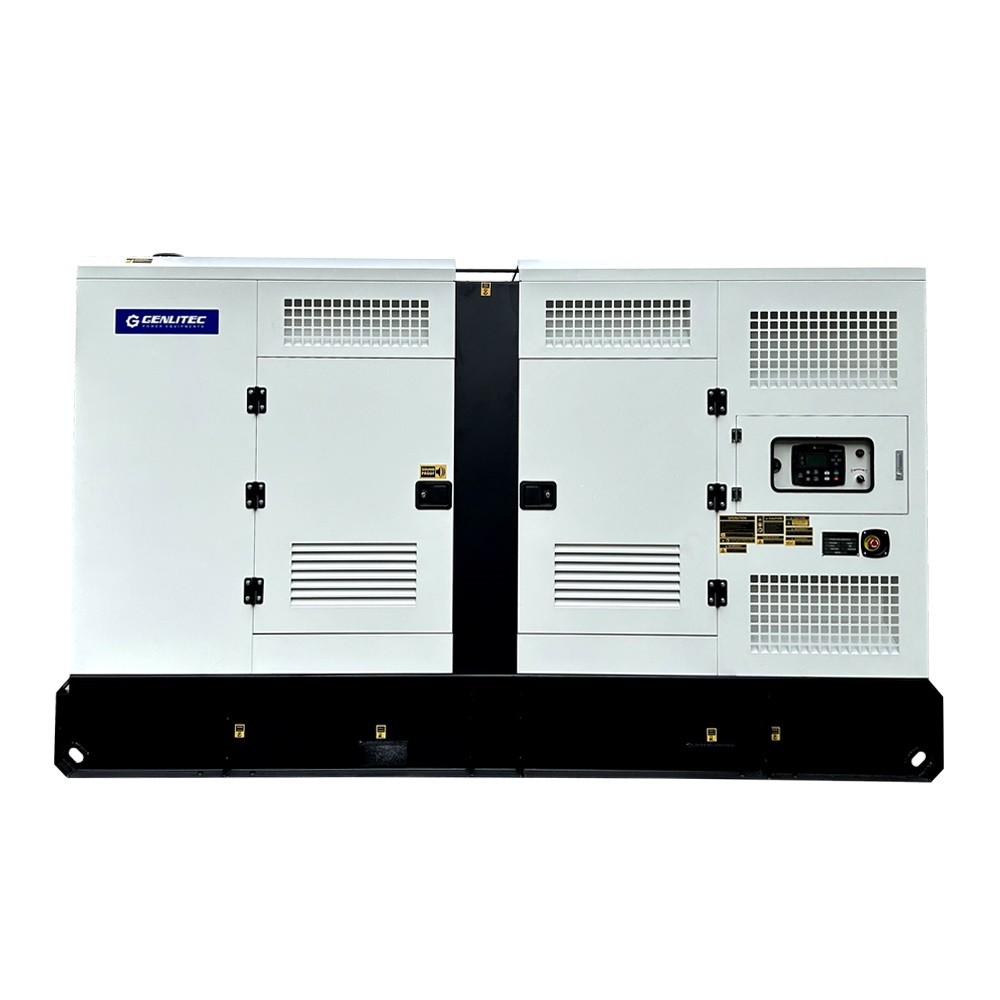

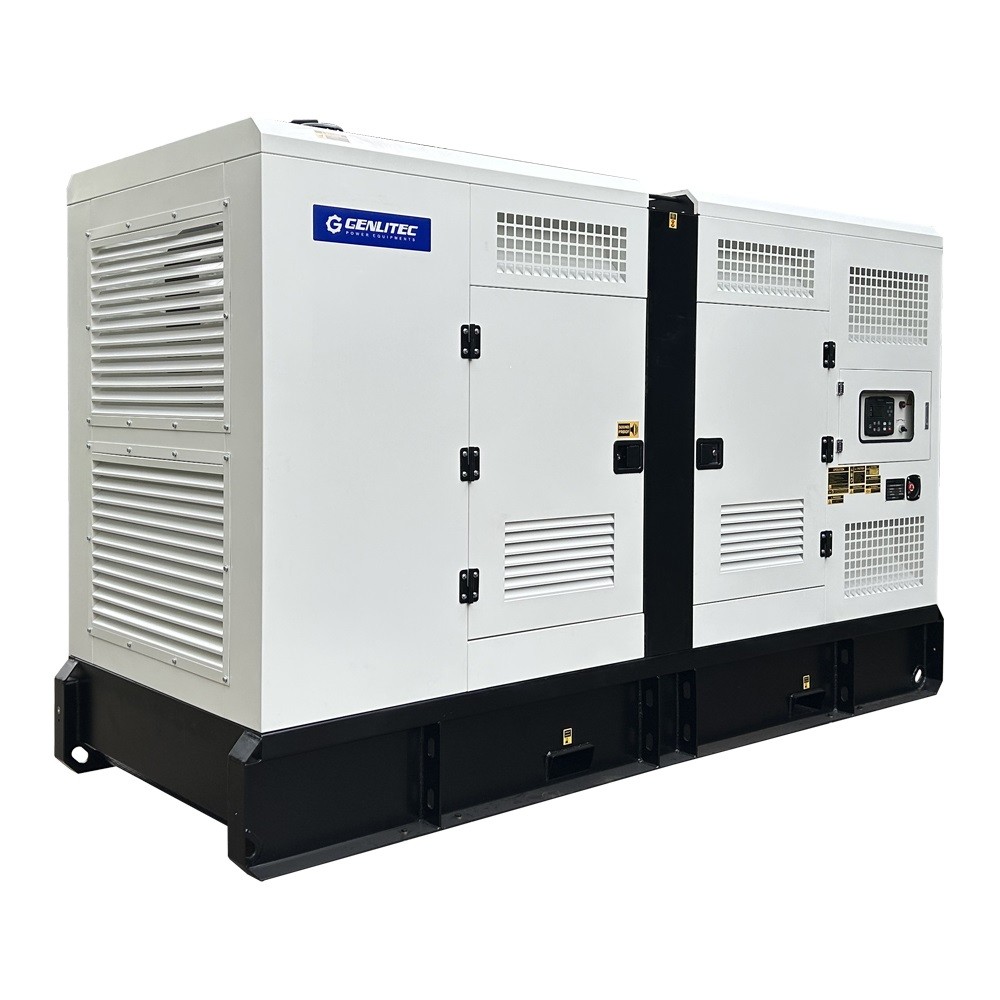

SOUND ATTENUATED ENCLOSURE

• Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
• Highly Corrosion Resistant Construction

WARRANTY

• 12 months or 1000 working hours, whichever comes first

OPTIONS

• ATS (for automatic start & stop when electricity power off & on)
• Trailer Type
• 12 hours fuel tank
• 24 hours fuel tank
• Power Sockets (CEE or AUS standard)
• Remote & Monitoring System
