313KVA Cummins (6LTAA9.5-G1) Diesel Generator-60Hz
● GENLITEC POWER® 250KW/313KVA CUMMINS DIESEL GENERATOR SET FEATURES
○ Brand new original CUMMINS 6LTAA9.5-G1 brand water cooled diesel engine
○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 127/220V, 3-Phase 4-Wires, 60Hz, 1800RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system
● GENERATOR SET

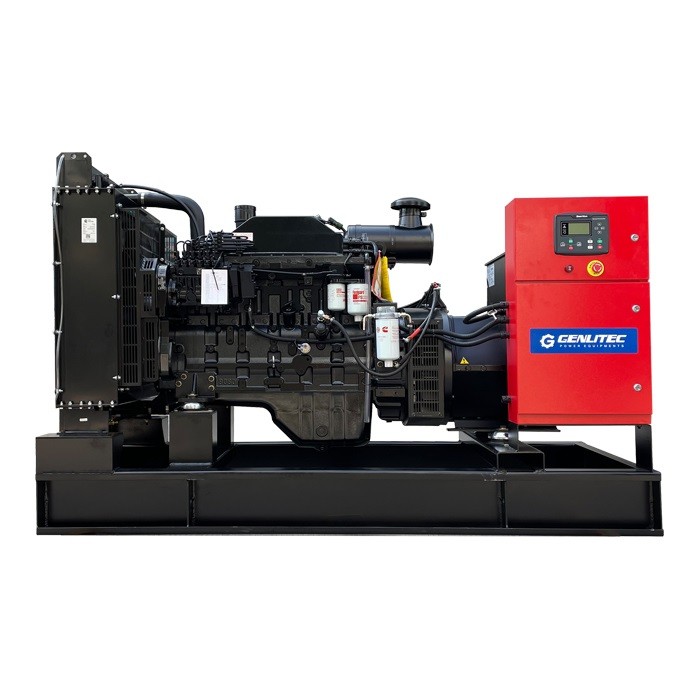

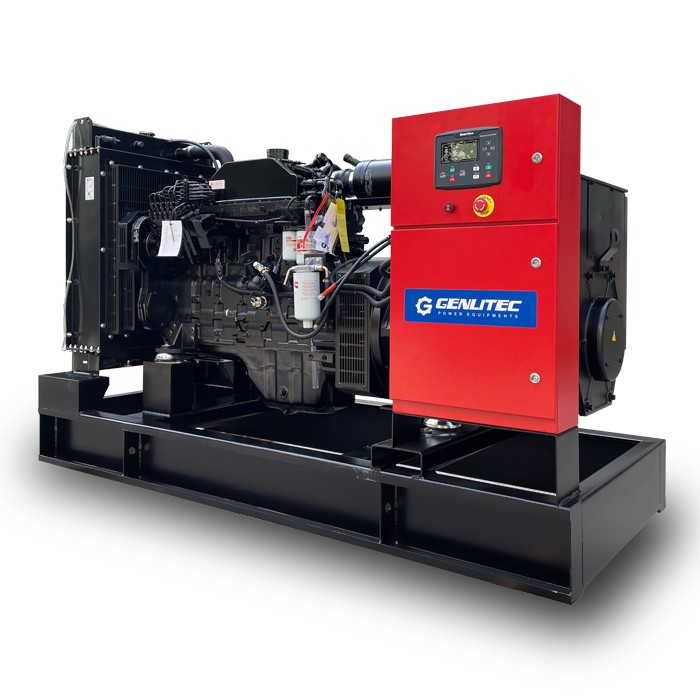

Open Type Model
GPC313D6-I
Silent Type Model
GPC313S6-I
Prime Power
250KW/313KVA
Standby Power
275KW/344KVA
Phase & Wire
3 Phase, 4 Wires
Power Factor
0.8
Frequency
60Hz
Voltage
110/190V, 120/208V, 127/220V, 254/440V, 277/480V
● DIESEL ENGINE
Model
CUMMINS 6LTAA9.5-G1
Cylinder Number
6
Aspiration System
Turbocharged & Charge Air Cooled
Cooling Method
Water Cooled
Governor Type
Electronic
Bore x Stroke
114 x 148 mm
Compression Ratio
16.6:1
Rated Speed
1800 RPM
Displacement
9.5L
Rated Power
280KW
Standby Power
310KW
Fuel System
Direct Injection
Oil Capacity
28.1L
Coolant Capacity
11.1L (Engine Only)
Electric Starting System
DC 24V
● FUEL CONSUMPTION
| 100% Prime Power | 68L/H |
|
75% Prime Power |
50L/H |
|
50% Prime Power |
34L/H |
|
25% Prime Power |
19L/H |
● ALTERNATOR
Number of Phase
3
Rated Power
250KW/313KVA
Frequency
60Hz
Power Factor
0.8
Poles
4
Temp. Rise
125K
Terminals
6/12
Insulation Type
H Class
Ambient Temp.
40℃
IP Rating
IP23
Excitatin System
Self-Excited
Bearing
Single Bearing
Coating
Vacuum Impregnation
Voltage Regulator
A.V.R
Coupling
Flexible Disc
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

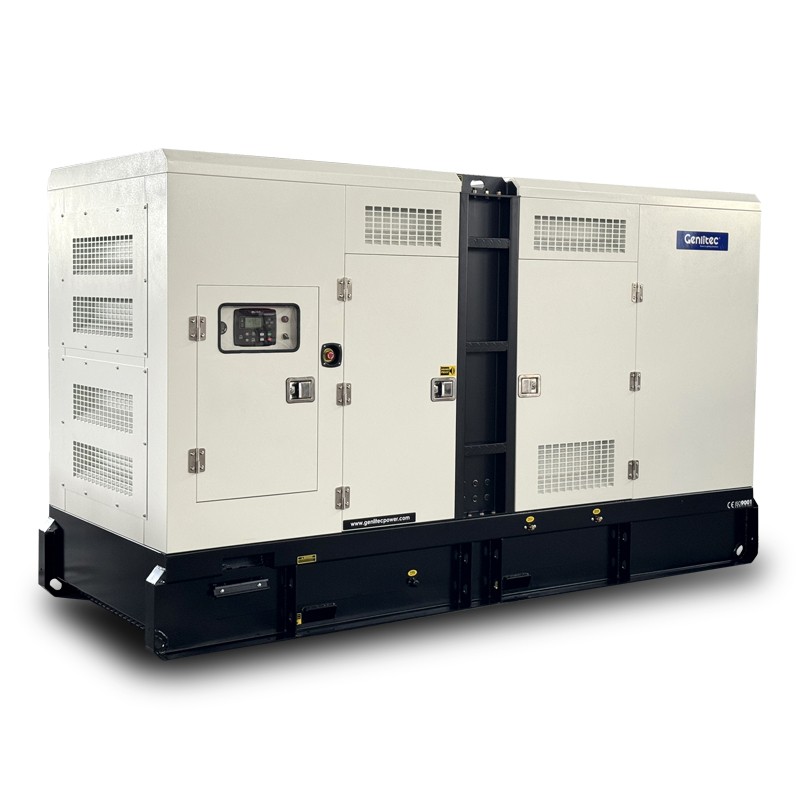

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS (for automatic start & stop when electricity power off & on)
○ Single axle trailer
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
○ Heaters
○ Remote & Monitoring System
