350KVA SDEC Diesel Generator-50Hz
● GENLITEC POWER® 280KW/350KVA SDEC DIESEL GENERATOR SET FEATURES
○ Brand new original SDEC SC12E460D2 brand water cooled diesel engine
○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system

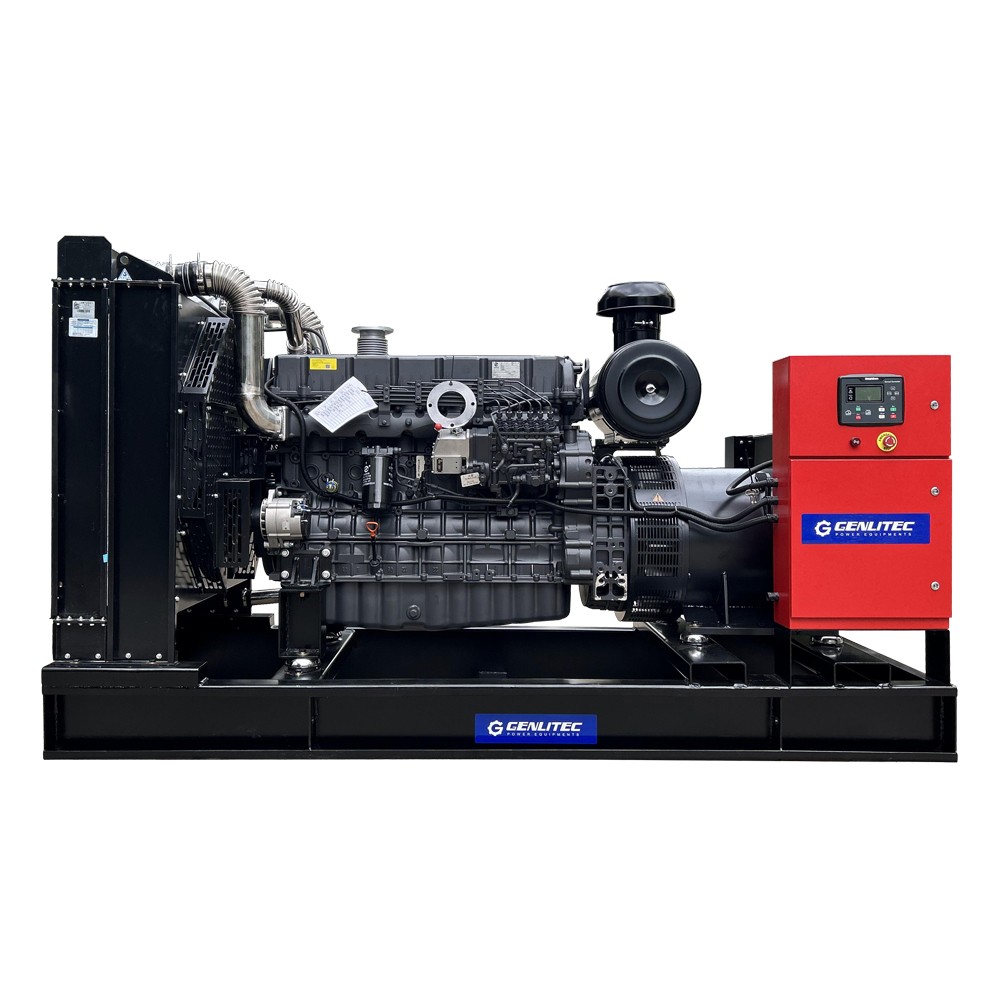

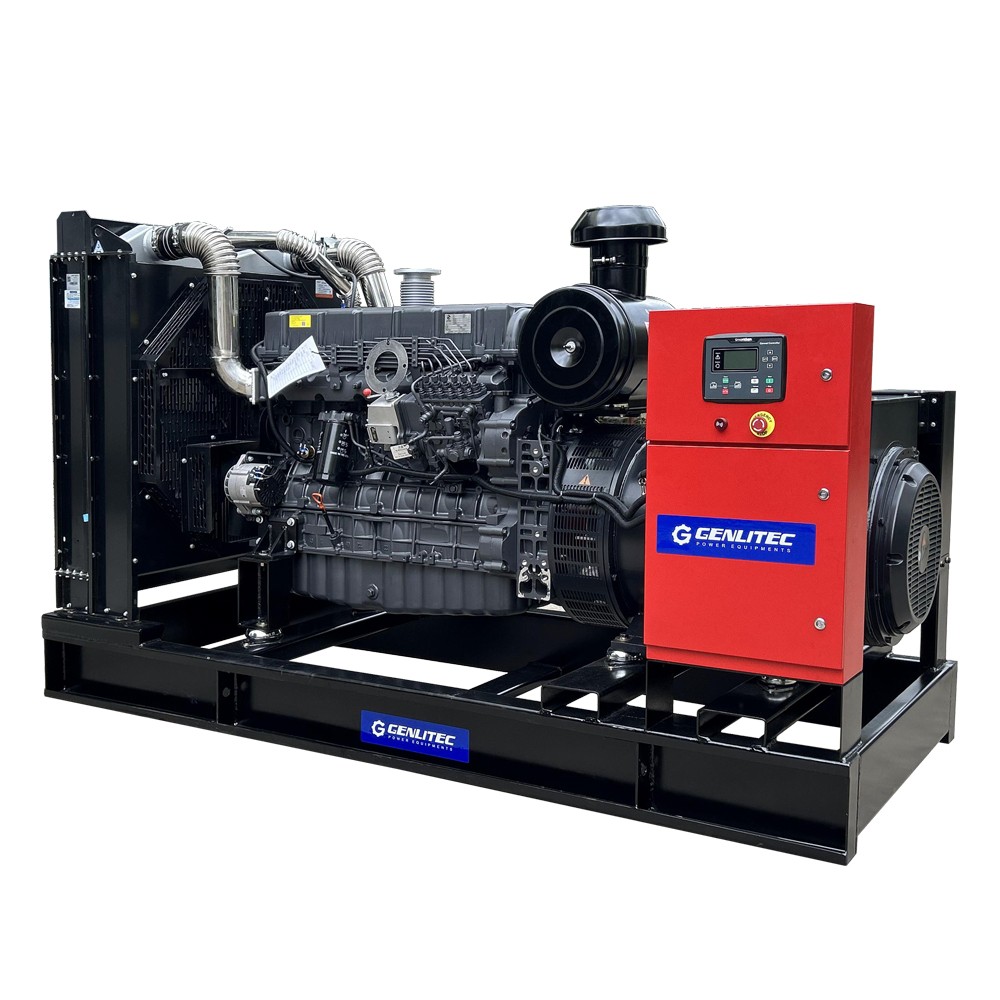

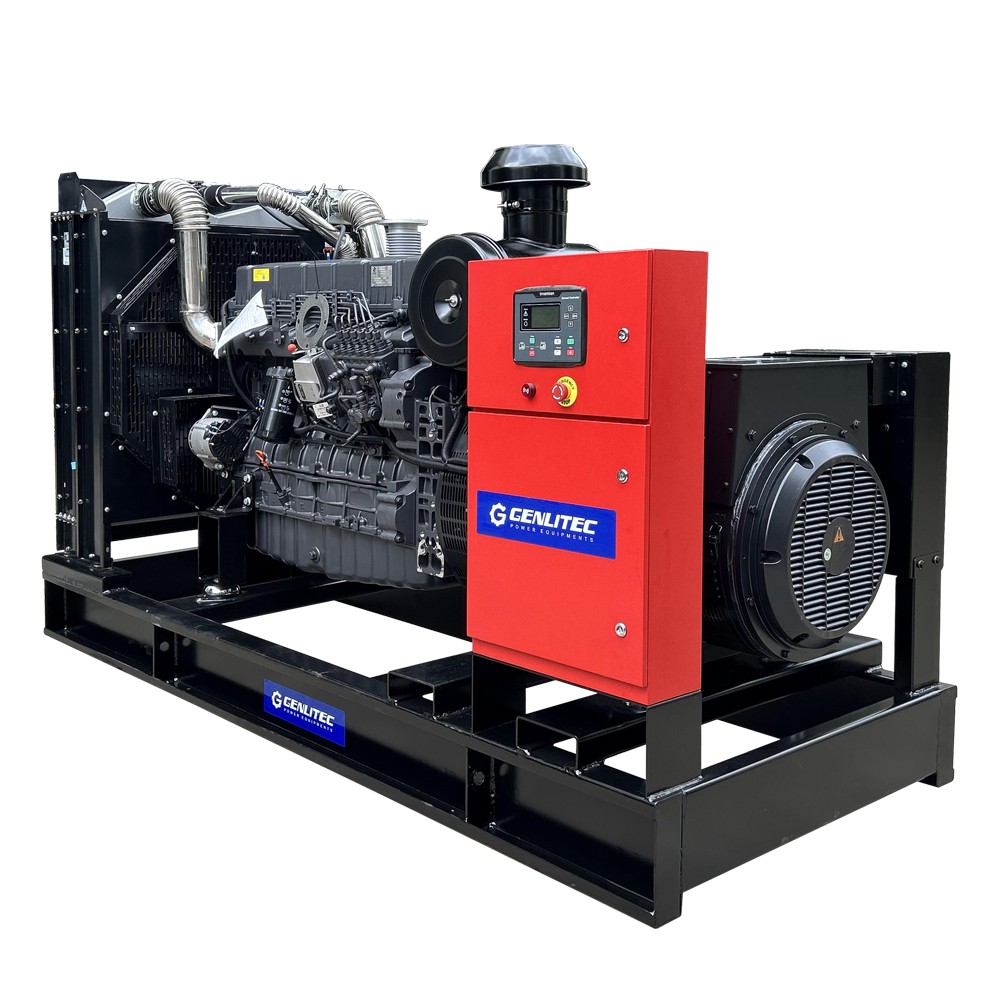

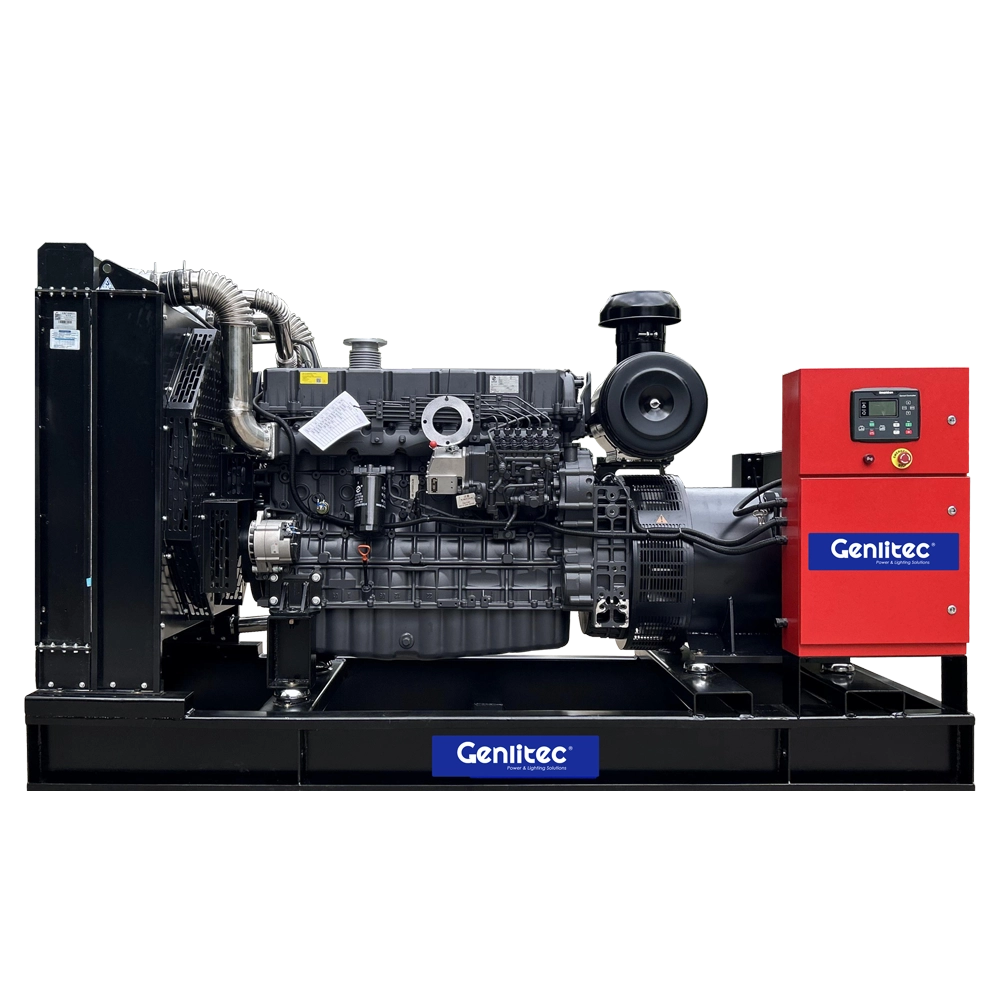

● GENERATOR SET

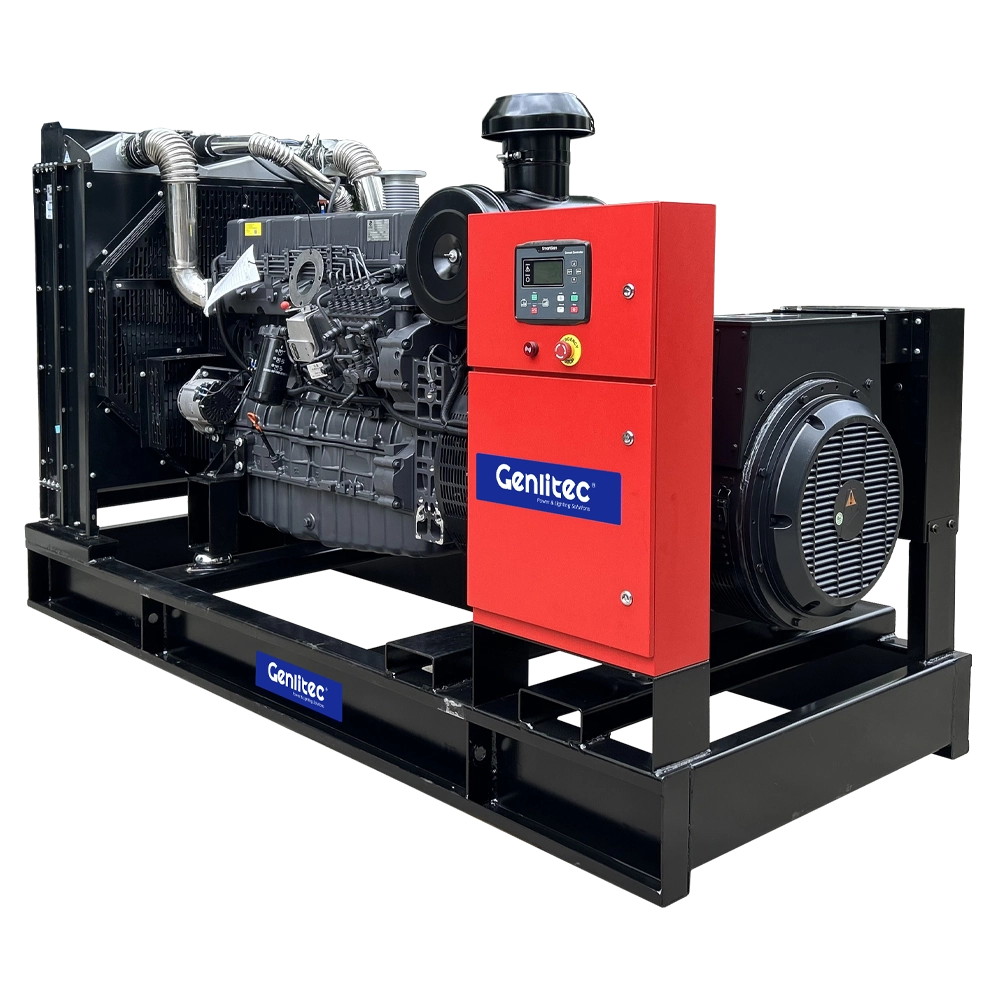

| Open Type Model | GSC350D5 |
| Silent Type Model | GSC350S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 280KW/350KVA |
| Standby Power | 308KW/385KVA |
| Rated Voltage | 380~415V |
| Fuel Tank Capacity | 530L |
● DIESEL ENGINE
| Engine Model | SDEC SC12E460D2 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, Air to Air Intercooled |
| Cooling System | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 128 x 153 mm |
| Compression Ratio | 17:1 |
| Rated Speed | 1500RPM |
| Displacement | 11.8L |
| Rated Power | 307KW |
| Standby Power | 338KW |
| Coolant Capacity | 23.2L (Engine Only) |
| Oil Capacity | 33~41L |
| Fuel System | Direct Injection |
| Electric Starting System | DC 24V |
● FUEL CONSUMPTION
| 100% Prime Load | 71.7L/H |
|
75% Prime Load |
53.4L/H |
| 50% Prime Load | 36.1L/H |
| 25% Prime Load | 19.8L/H |
● ALTERNATOR
| Number of Phase | 3 |
| Rated Power | 280KW/350KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage | A.V.R |
| Coupling | Flexible Disc |
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

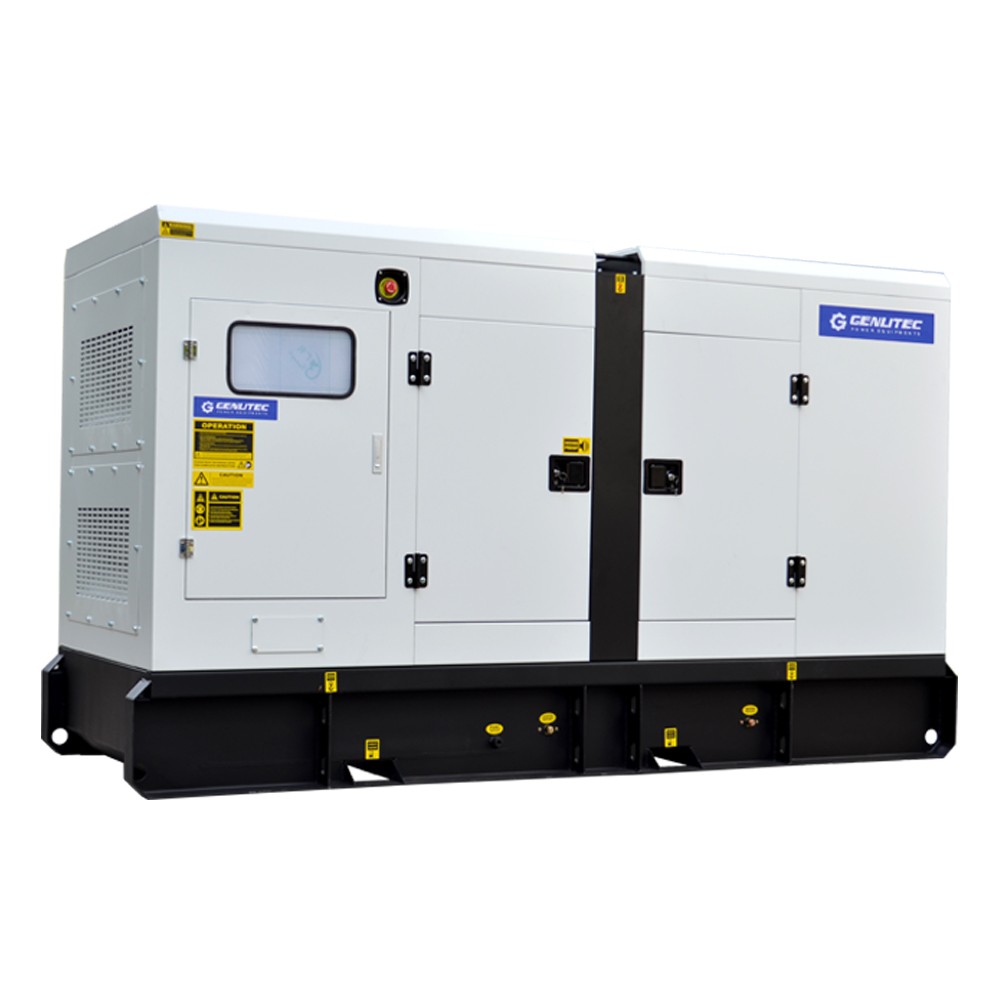

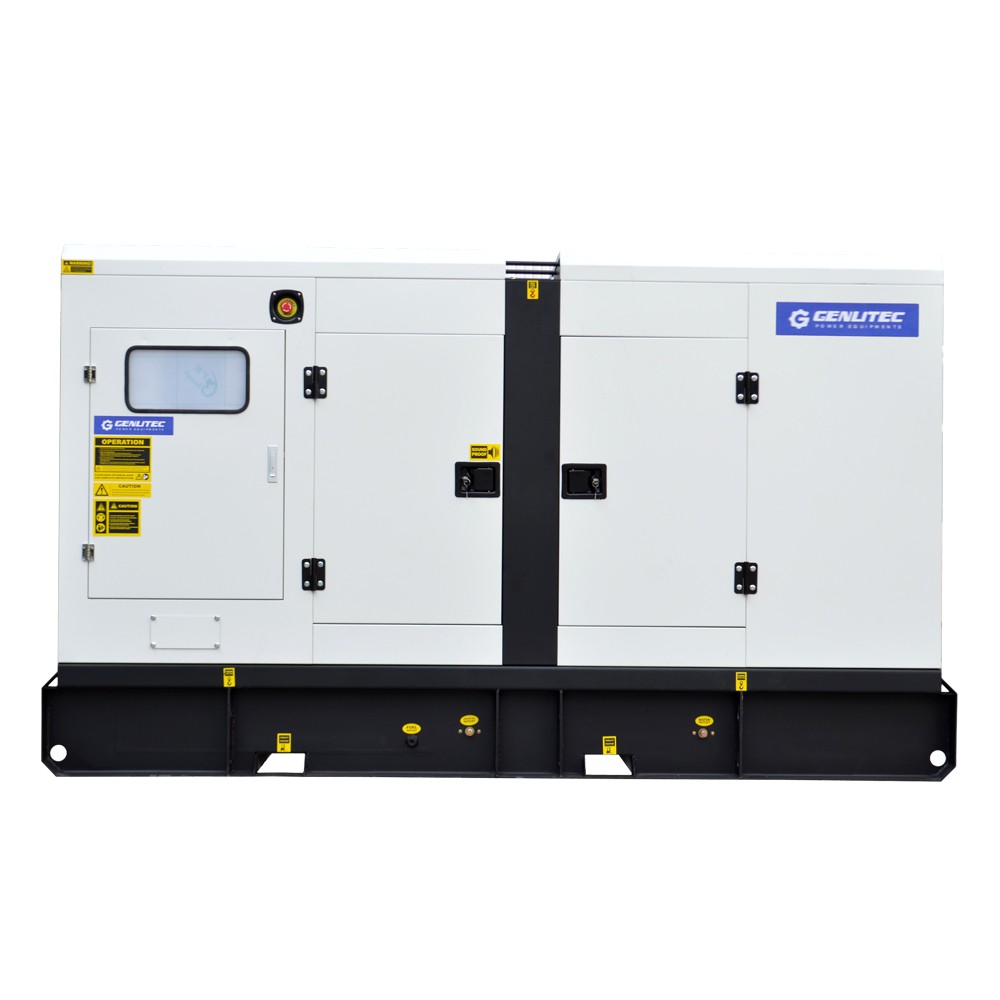

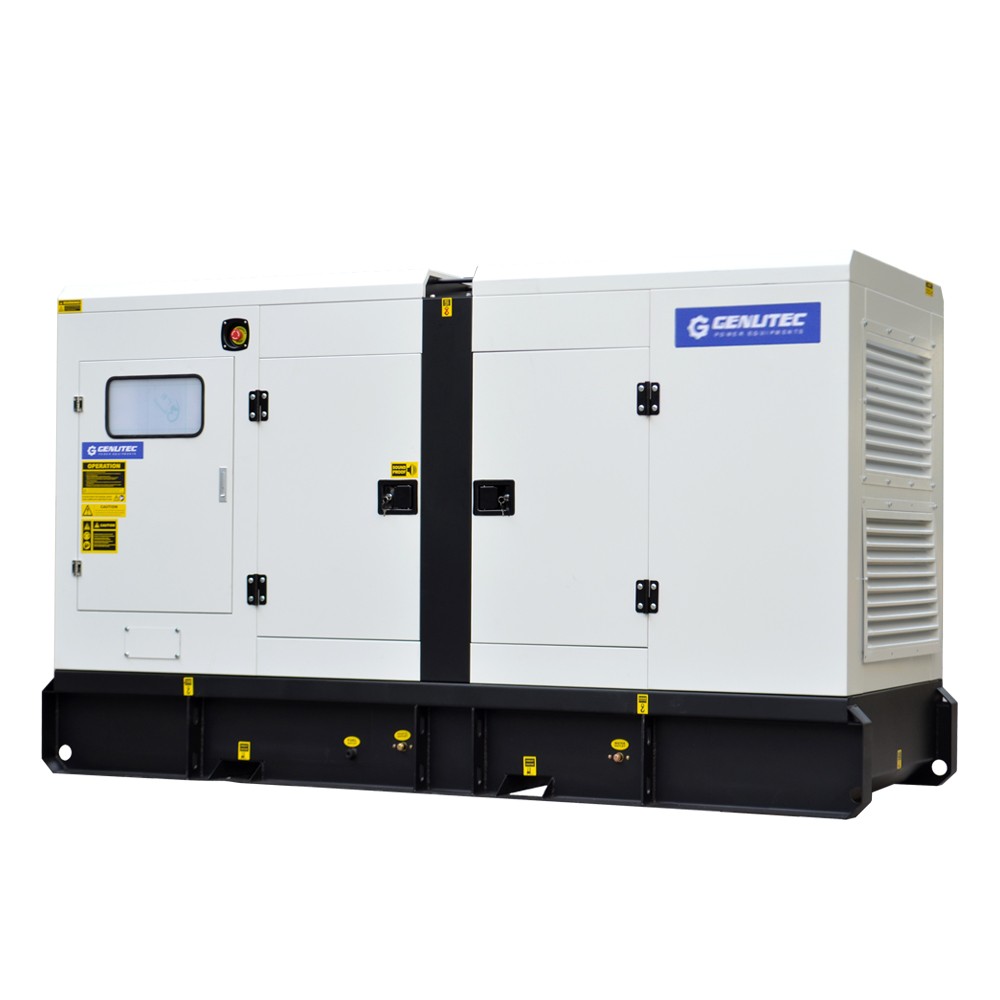

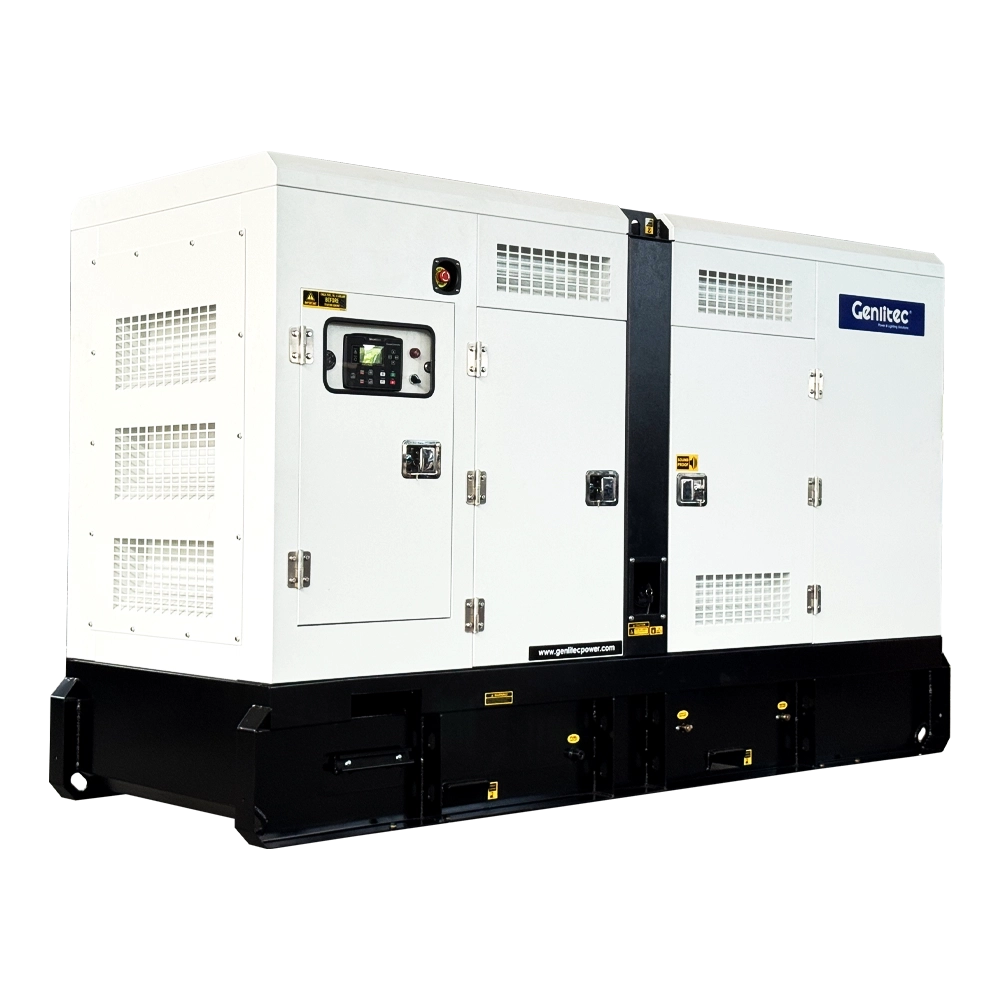

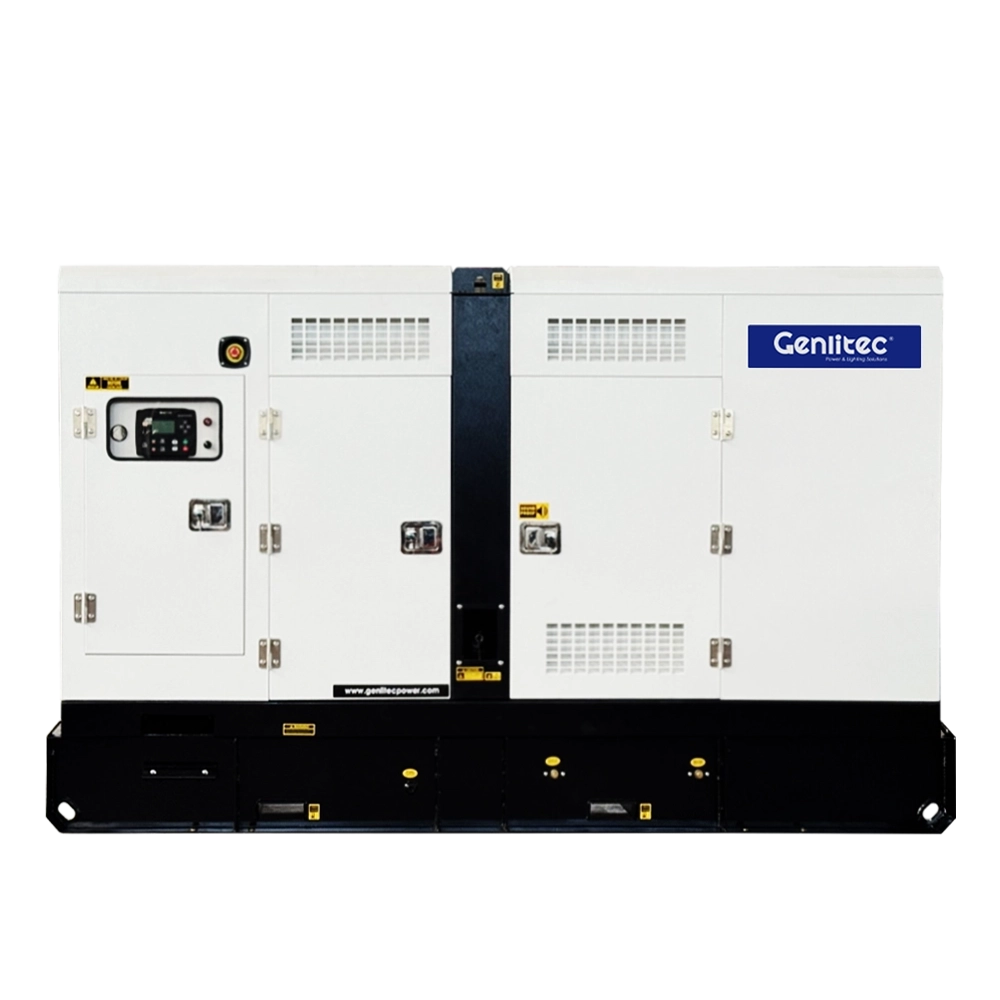

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS (for automatic start & stop when electricity power off & on)
○ Synchronization Panel
○ Heavy-Duty trailer
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
○ Heaters
