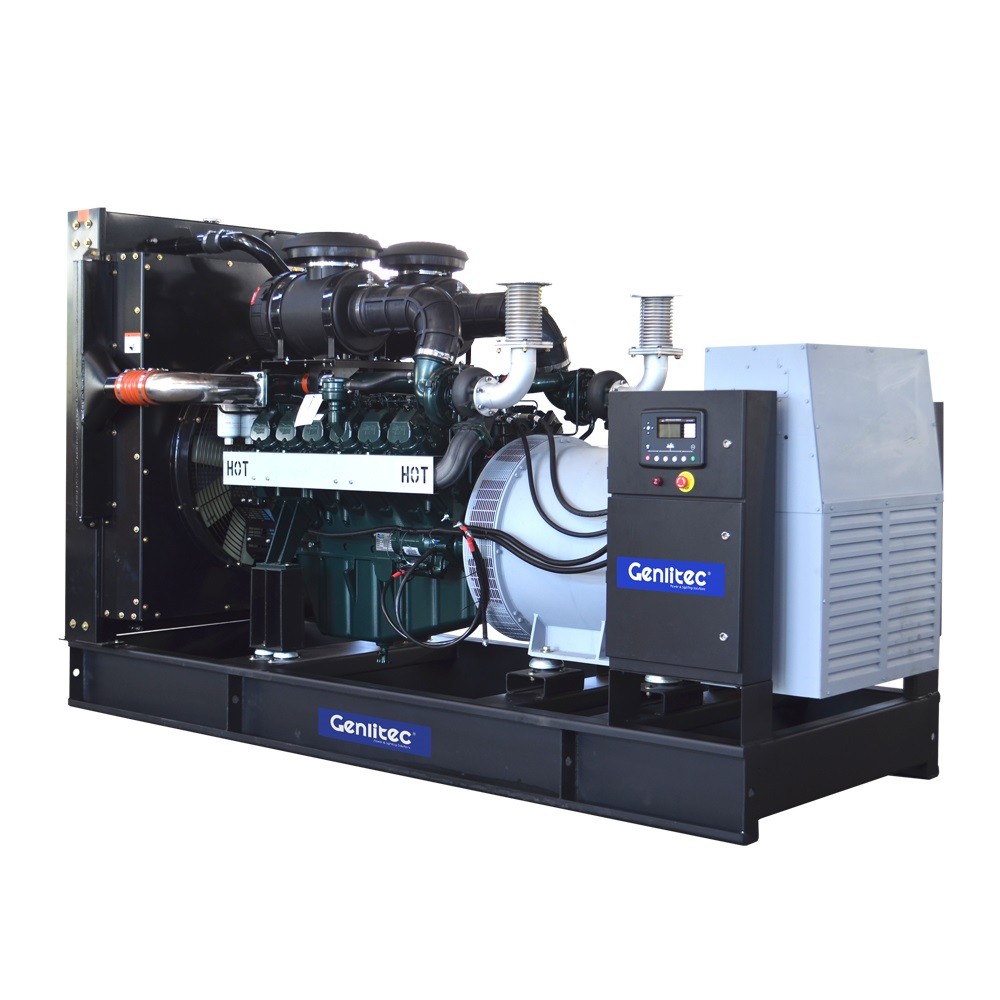

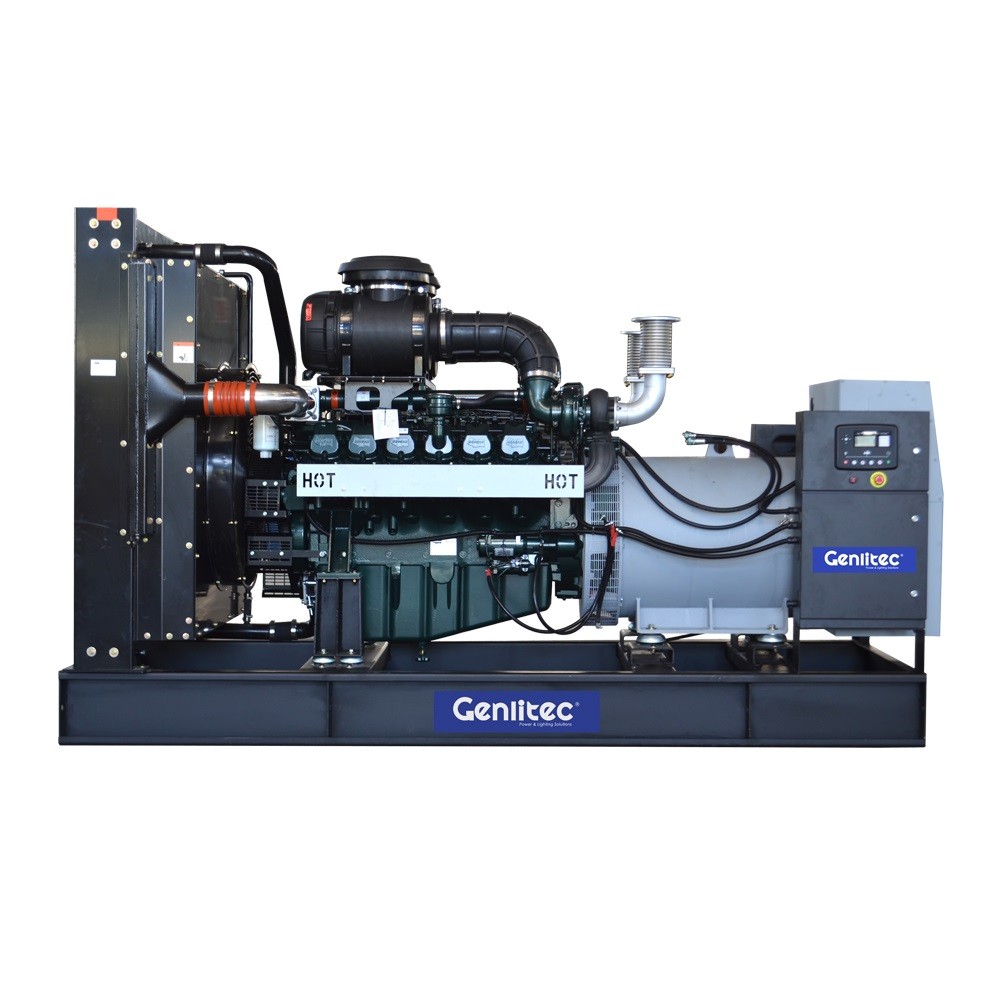

360KW/450KVA DOOSAN DIESEL GENERATOR SET SPECIFICATIONS

• Standby Power: 400KW/500KVA
• Prime Power: 360KW/450KVA
• Frequency: 50Hz
• Speed: 1500 RPM
• Phase: 3
• Voltage: 220/380V (230/400V or 240/415V available according to different countries)
• Fuel Tank Capacity: 8~10 hours continuous running

ENGINE

• Powered by: DOOSAN
• Engine Model: DP158LC

ALTERNATOR

• Alternator Model: GENLITEC S314G360 (STAMFORD & LEROY SOMER alternators for options)
• High Efficiency
• IP23 Protection

CONTROL PANEL

• Emergency stop button
• Main circuit breaker
• Float baterry charger
• Manual/Autostart control panel
• Fuel level meter
• Controller power switch
• Alarm buzzer

SOUND ATTENUATED ENCLOSURE

• Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
• Highly Corrosion Resistant Construction

WARRANTY

• 12 months or 1000 working hours, whichever comes first

OPTIONS

• ATS (for automatic start & stop when electricity power off & on)
• Trailer Type
• 12 hours fuel tank
• 24 hours fuel tank
• Power Sockets (CEE or AUS standard)
• Remote & Monitoring System
