450KVA Weichai Diesel Generator-50Hz
● GENLITEC POWER® 360KW/450KVA WEICHAI DIESEL GENERATOR SET FEATURES
○ Brand new original WEICHAI WP13D440E310 water cooled diesel engine
○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system

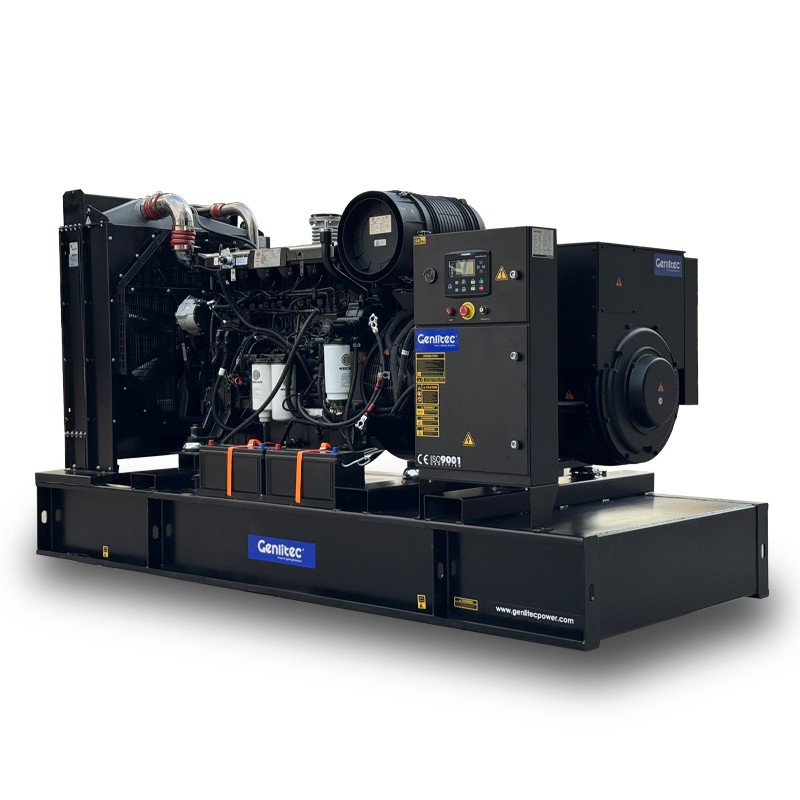

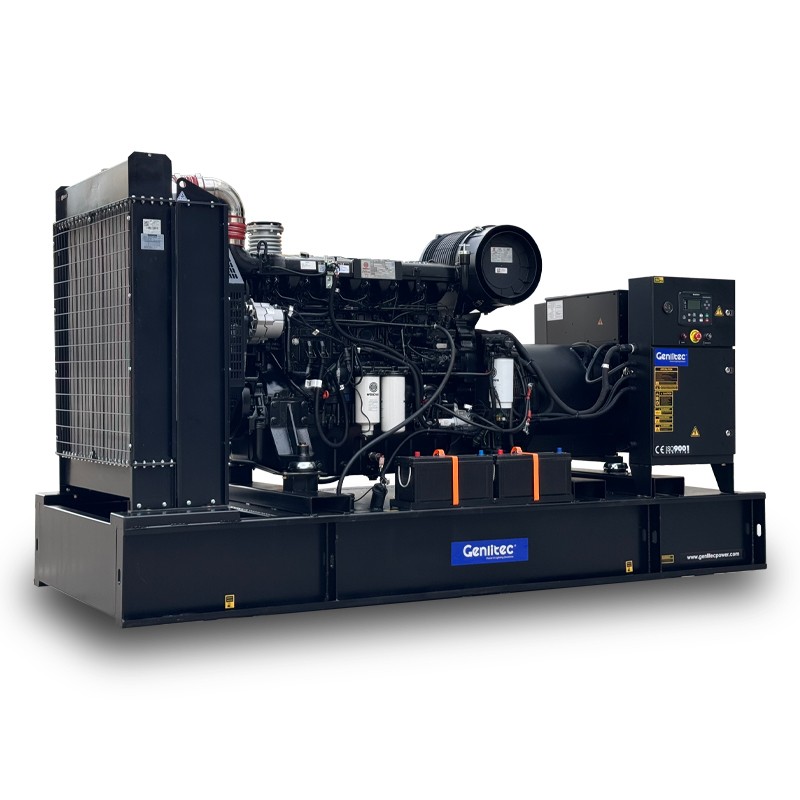

● GENERATOR SET
| Open Type Model | GPW450D5 |
| Silent Type Model | GPW450S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 360KW/450KVA |
| Standby Power | 400KW/500KVA |
| Rated Voltage | 380~415V |
| Fuel Tank Capacity | 780L |
● DIESEL ENGINE
| Engine Model | Weichai WP13D440E310 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged & Aftercooled |
| Cooling System | Water Cooled |
| Governor Type | ECU |
| Bore x Stroke | 127 x 165 mm |
| Compression Ratio | 16:1 |
| Rated Speed | 1500RPM |
| Displacement | 12.54L |
| Rated Power | 392KW |
| Standby Power | 440KW |
| Coolant Capacity | 25L (Engine Only) |
| Oil Capacity | 30L |
| Fuel System | Common-Rail |
| Electric Starting System | DC 24V |
● FUEL CONSUMPTION
| 100% Prime Load | 93L/H |
|
75% Prime Load |
66.4L/H |
| 50% Prime Load | 44.8L/H |
| 25% Prime Load | 26L/H |
● ALTERNATOR
| Number of Phase | 3 |
| Rated Power | 360KW/450KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage | A.V.R |
| Coupling | Flexible Disc |
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

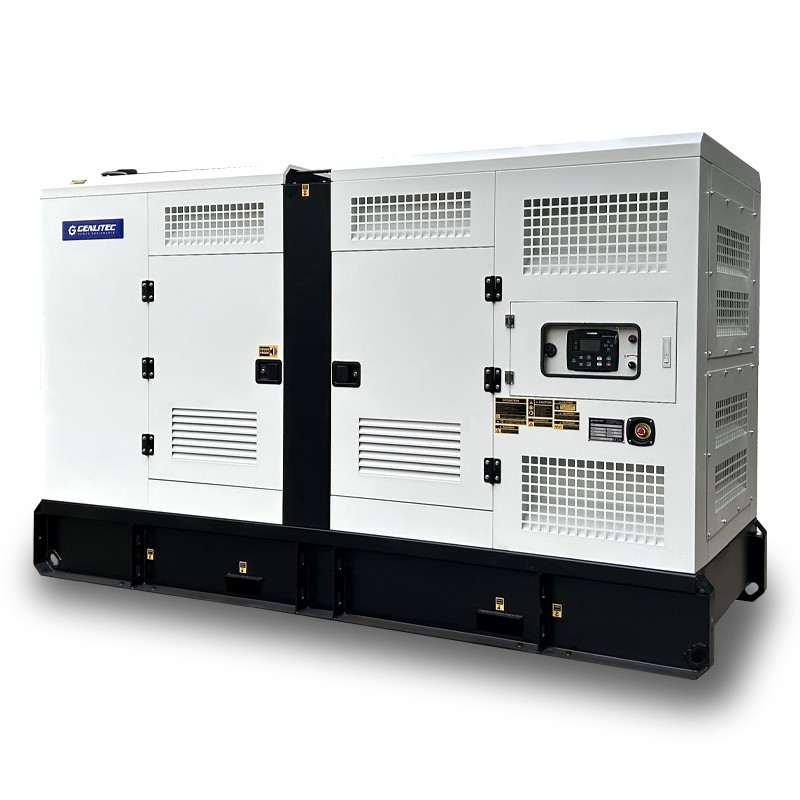

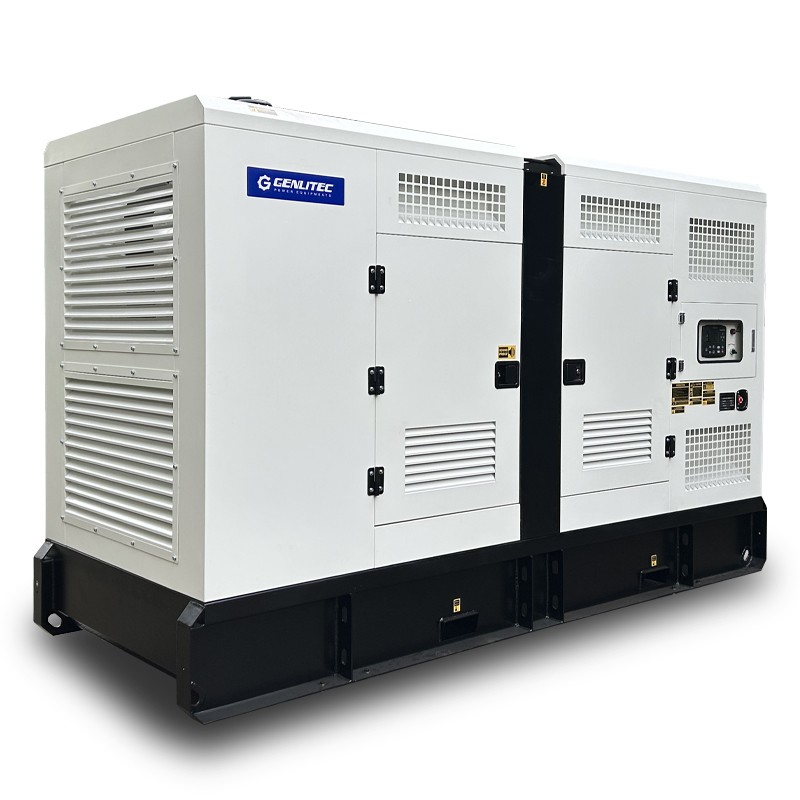

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS (for automatic start & stop when electricity power off & on)
○ Synchronization Panel
○ Heavy-Duty trailer
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
○ Heaters
○ Remote & Monitoring System
○ PMG/AREP
