● GENLITEC POWER® 450KW/563KVA WEICHAI DIESEL GENERATOR SET FEATURES

○ Brand new original WEICHAI 6M33D572E200 water cooled diesel engine

○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

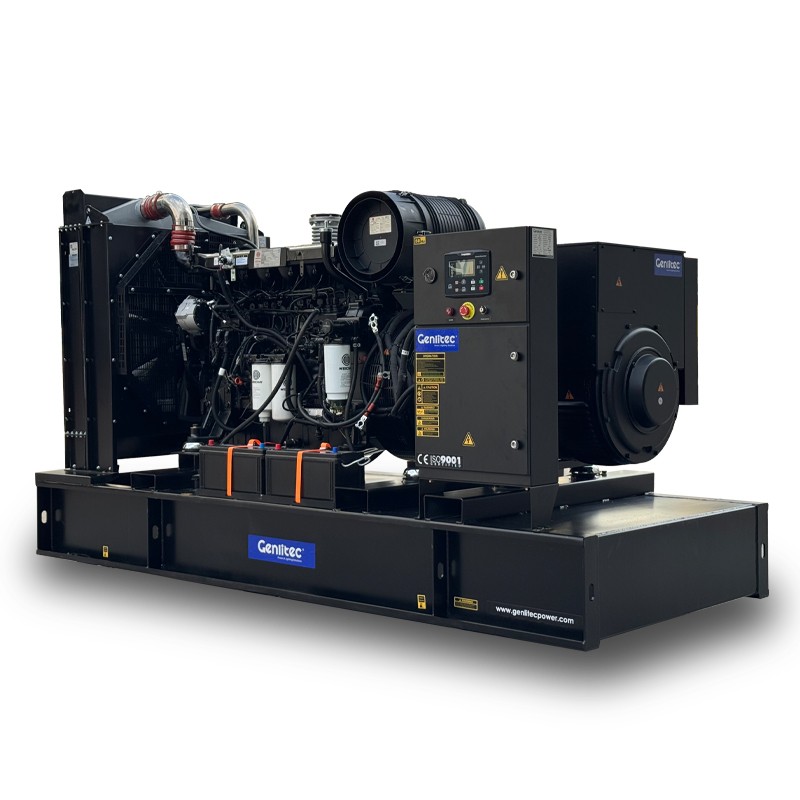

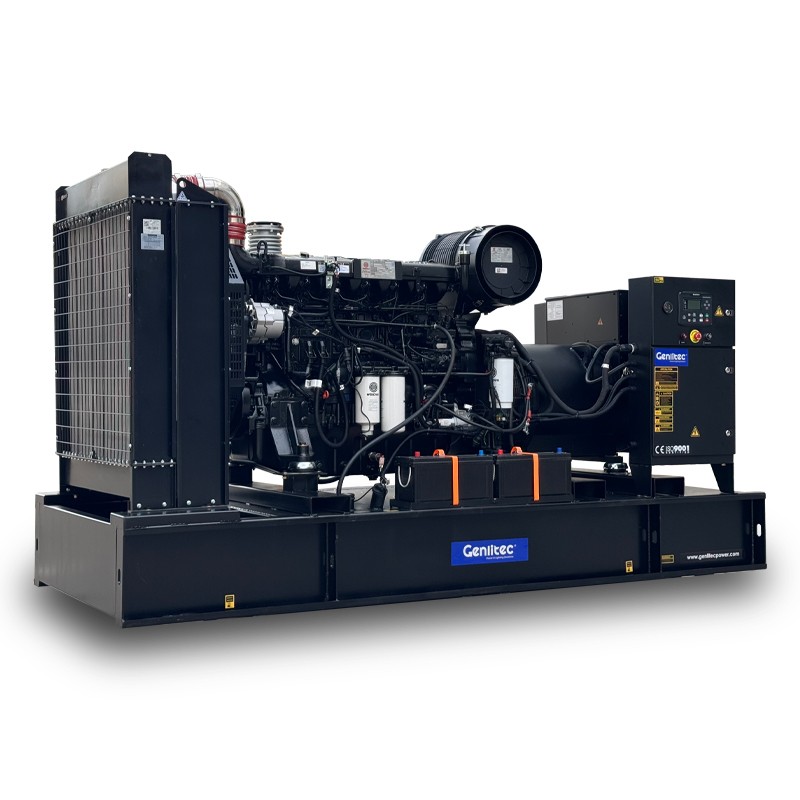

Open Type Model	GPW563D5
Silent Type Model	GPW563S5
Frequency	50Hz
Phase & Wires	3 Phase, 4 Wires
Power Factor	0.8
Prime Power	450KW/563KVA
Standby Power	500KW/625KVA
Rated Voltage	380~415V
Fuel Tank Capacity	950L

● DIESEL ENGINE

Engine Model	Weichai 6M33D572E200
Cylinder Number	6
Aspiration System	Turbocharged & Aftercooled
Cooling System	Water Cooled
Governor Type	Electronic
Bore x Stroke	150 x 185 mm
Compression Ratio	15:1
Rated Speed	1500RPM
Displacement	19.6L
Rated Power	520KW
Standby Power	570KW
Coolant Capacity	43.93L (Engine Only)
Oil Capacity	36/61L
Fuel System	Mechanical pump
Electric Starting System	DC 24V

● FUEL CONSUMPTION

100% Prime Load	122.7L/H
75% Prime Load	90.44L/H
50% Prime Load	60.57L/H
25% Prime Load	30.25L/H

● ALTERNATOR

Number of Phase	3
Rated Power	450KW/563KVA
Frequency	50Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	6/12
Insulation Class	H
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage	A.V.R
Coupling	Flexible Disc

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

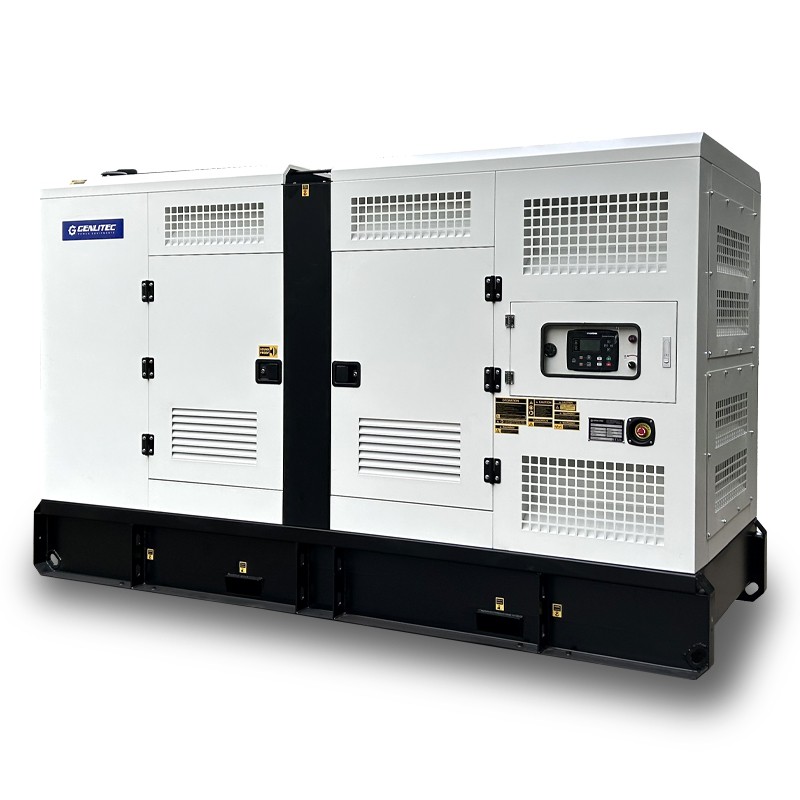

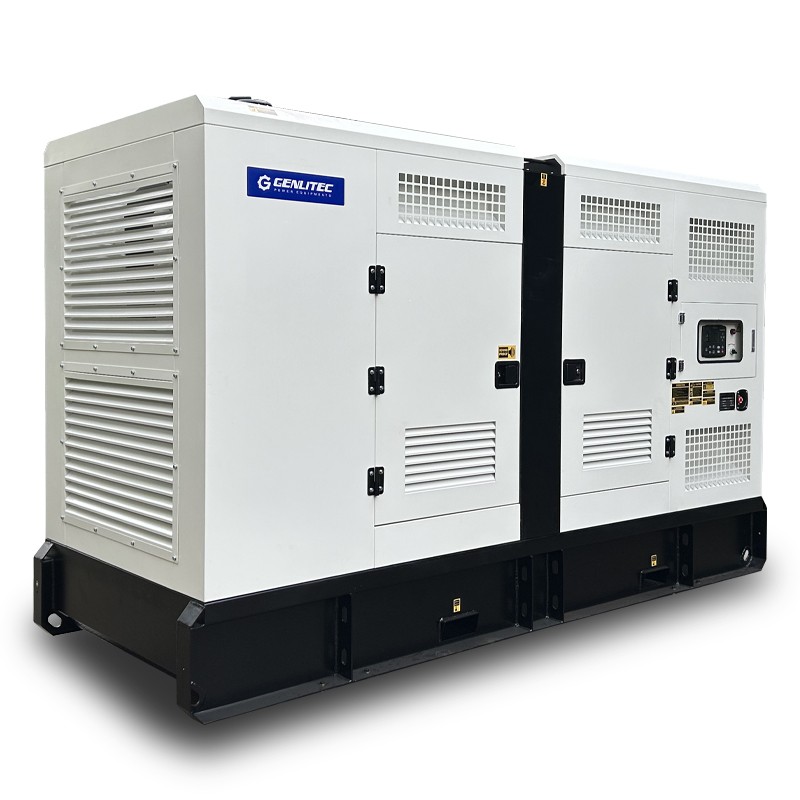

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS (for automatic start & stop when electricity power off & on)

○ Synchronization Panel

○ Heavy-Duty trailer

○ 12 hours fuel tank

○ 24 hours fuel tank

○ Power Sockets (CEE or AUS standard)

○ Heaters

○ Remote & Monitoring System

○ PMG/AREP
