625KVA Cummins Diesel Generator-60Hz
● GENLITEC POWER® 500KW/625KVA CUMMINS DIESEL GENERATOR SET FEATURES
○ Brand new original CUMMINS KTAA19-G5 brand water cooled diesel engine
○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 127/220V, 3-Phase 4-Wires, 60Hz, 1800RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system
● GENERATOR SET

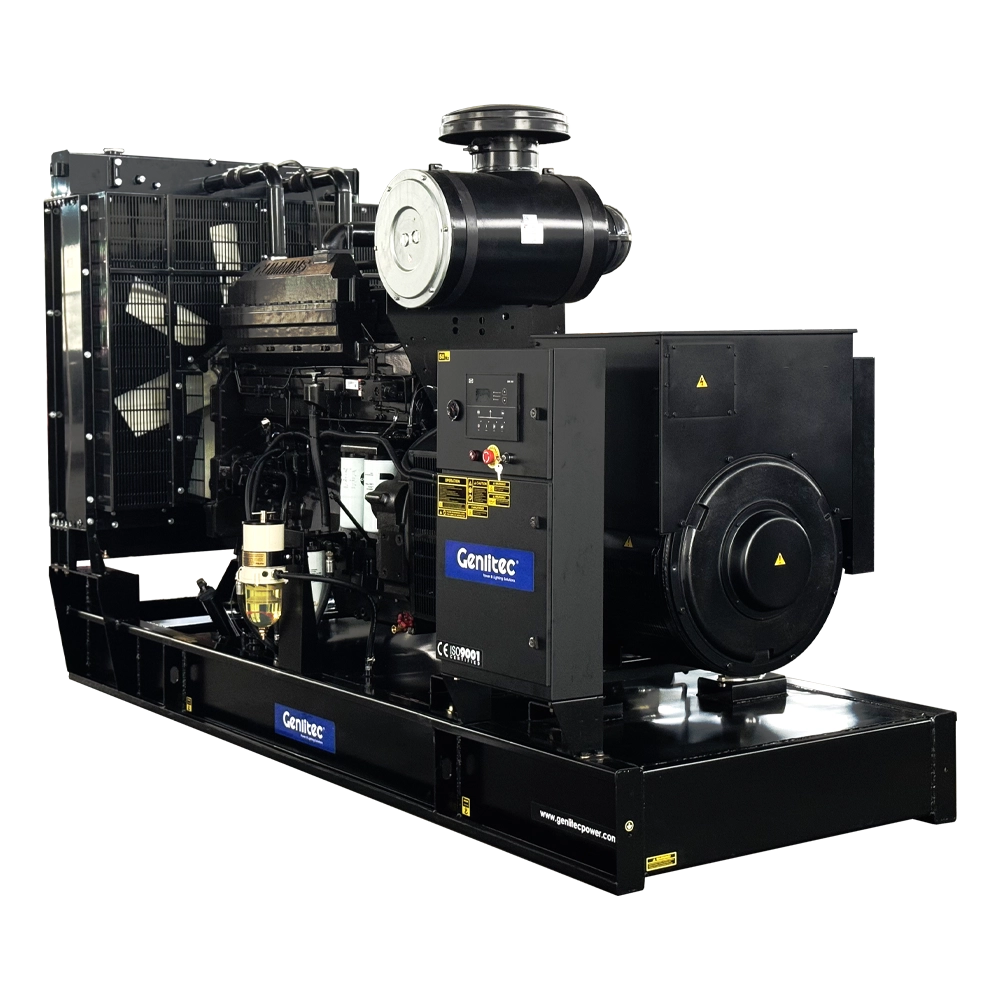

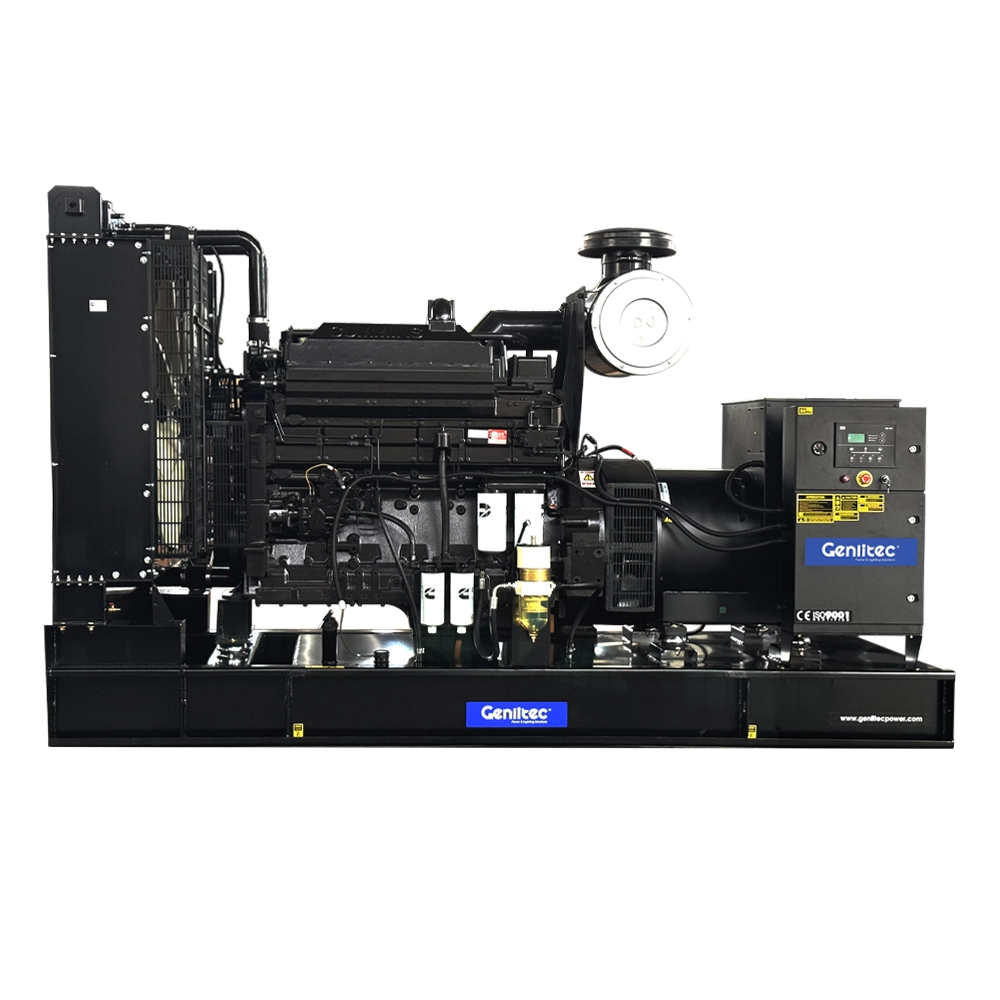

Open Type Model
GPC625D6

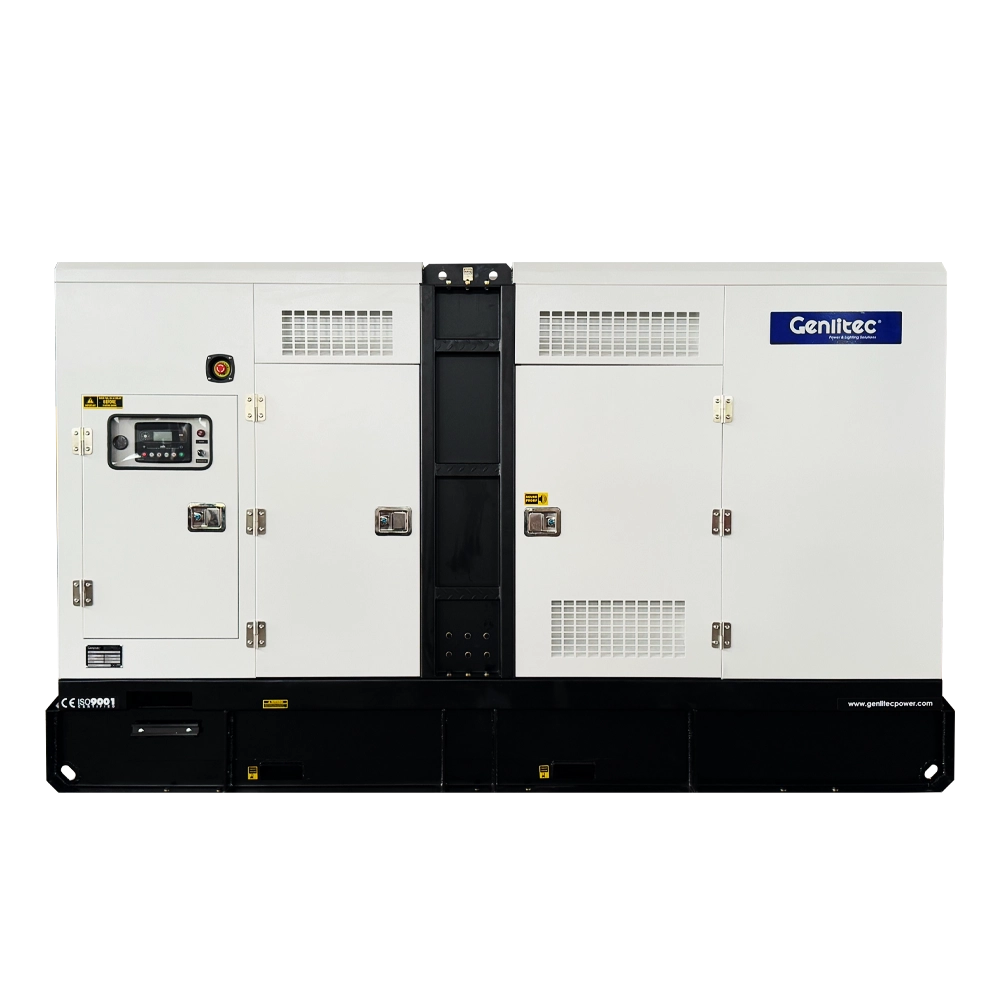

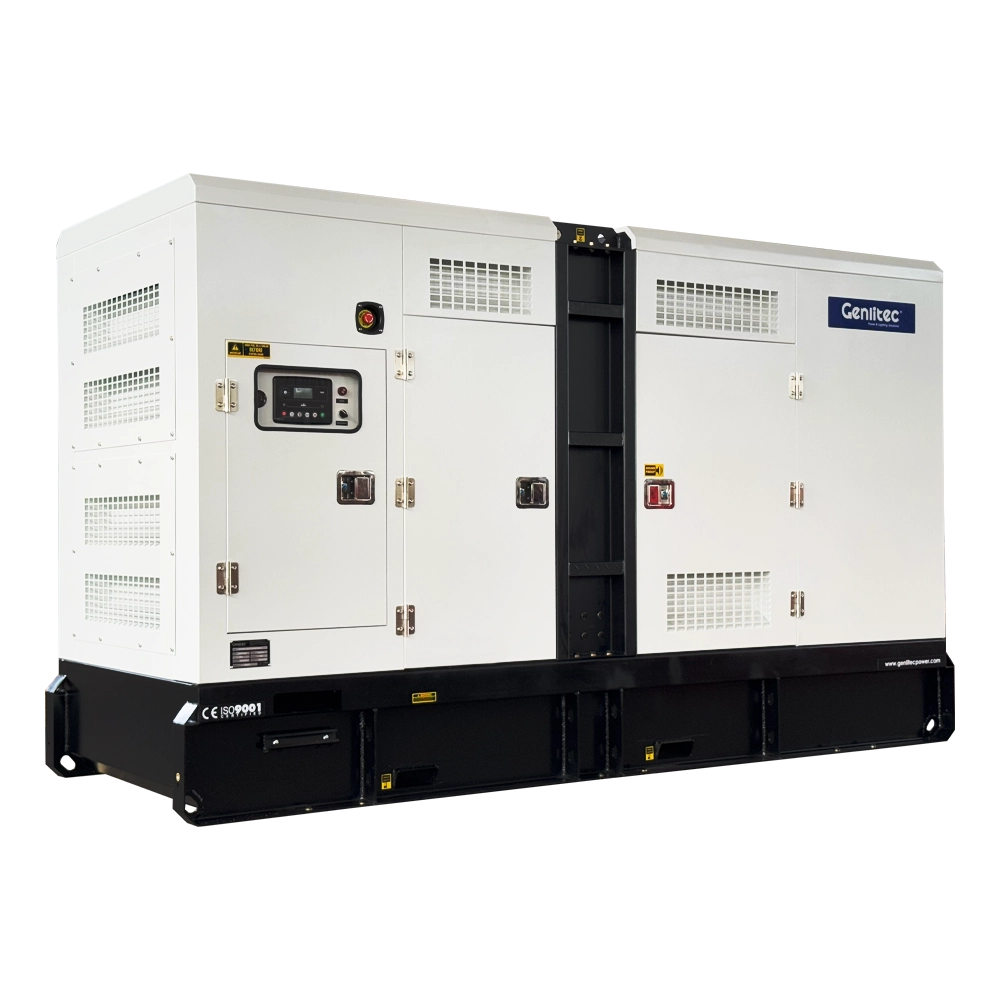

Silent Type Model
GPC625S6
Prime Power
500KW/625KVA
Standby Power
550KW/688KVA
Phase & Wire
3 Phase, 4 Wires
Power Factor
0.8
Freuquency
60Hz
Rated Voltage
110/190V, 120/208V, 127/220V, 254/440V, 277/480V
Fuel Tank Capacity
940L
● DIESEL ENGINE
Model
CUMMINS KTAA19-G5
Number of Cylinder
6
Aspiration System
Turbocharged, air to air cooled
Cooling Method
Water Cooled
Governor Type
Electronic
Bore x Stroke
159 x 159 mm
Compression Ratio
13.9:1
Rated Speed
1800RPM
Displacement
19L
Rated Power
533KW
Standby Power
605KW
Fuel System
Cummins PT Pump
Oil Capacity
37.9L
Coolant Capacity
26.5L (Engine Only)
Electric Starting System
DC 24V
● FUEL CONSUMPTION
100% Prime Load
111KG/H
75% Prime Load
83KG/H
50% Prime Load
59KG/H
25% Prime Load
36L/H
● ALTERNATOR
Number of Phase
3
Rated Power
500KW/625KVA
Frequency
60Hz
Power Factor
0.8
Poles
4
Temp. Rise
125K
Terminals
6/12
Insulation Type
H Class
Ambient Temp.
40℃
IP Rating
IP23
Excitation System
Self-Excited
Bearing
Single Bearing
Coating
Vacuum Impregnation
Voltage Regulator
A.V.R
Coupling
Flexible Disc
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

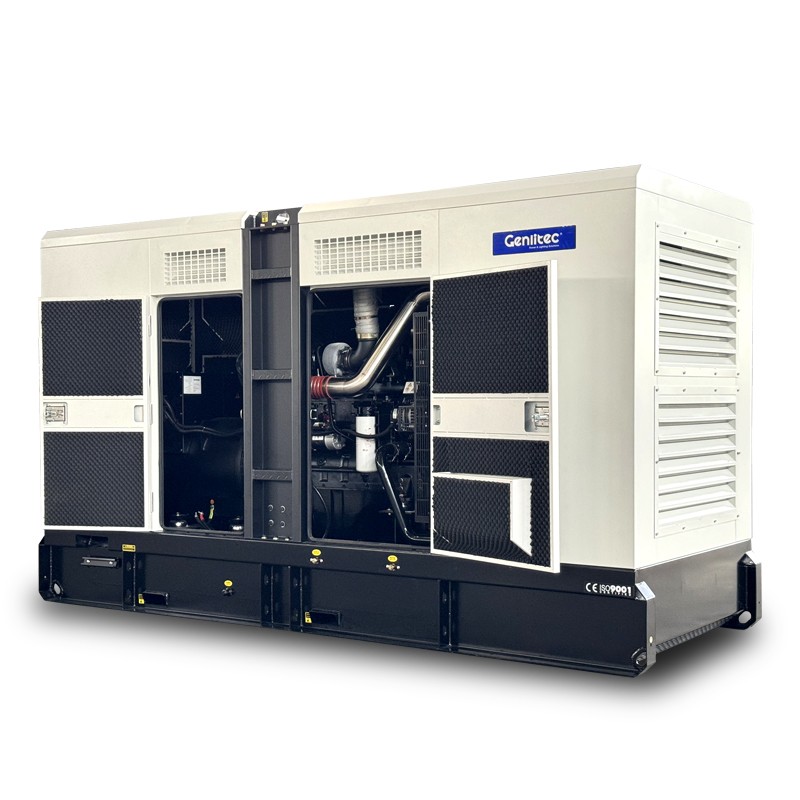

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS Panel (for automatic start & stop when electricity power off & on)
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
○ 4G/Wifi Remote & Monitoring System
○ Sychronization Panel
