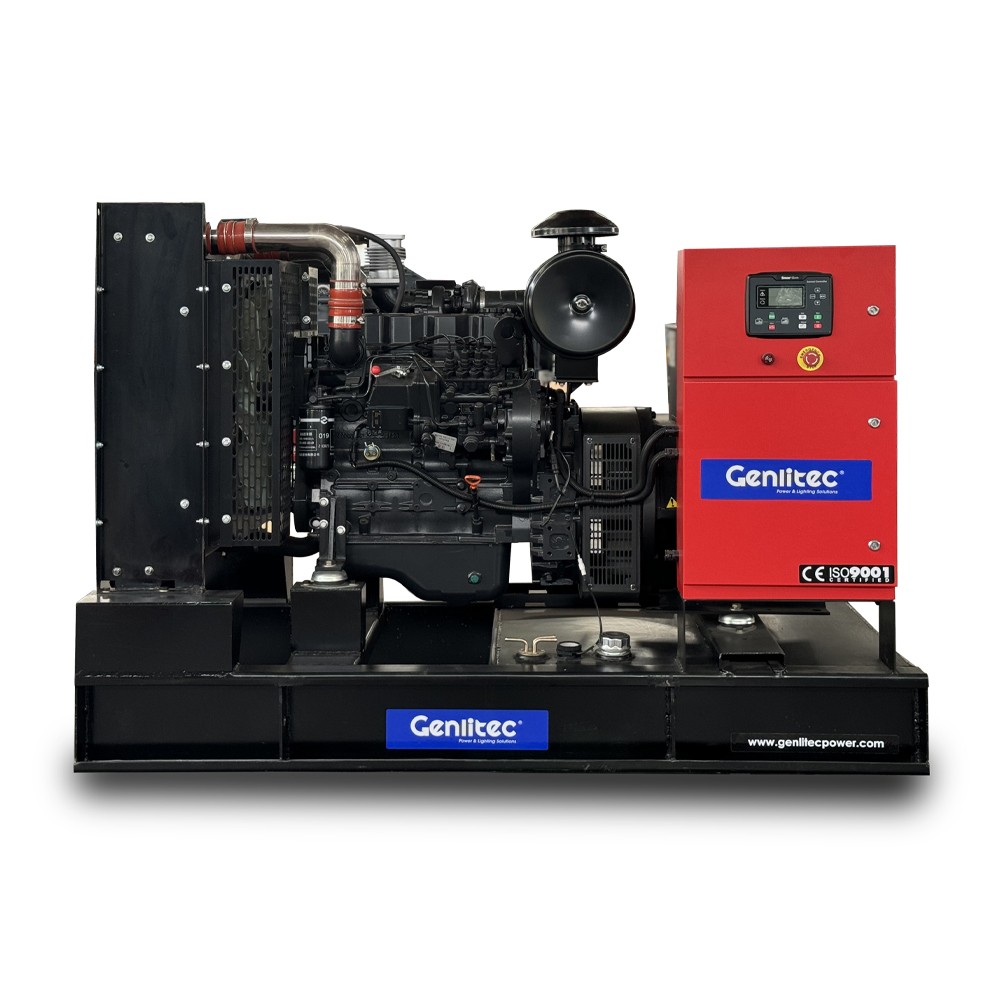

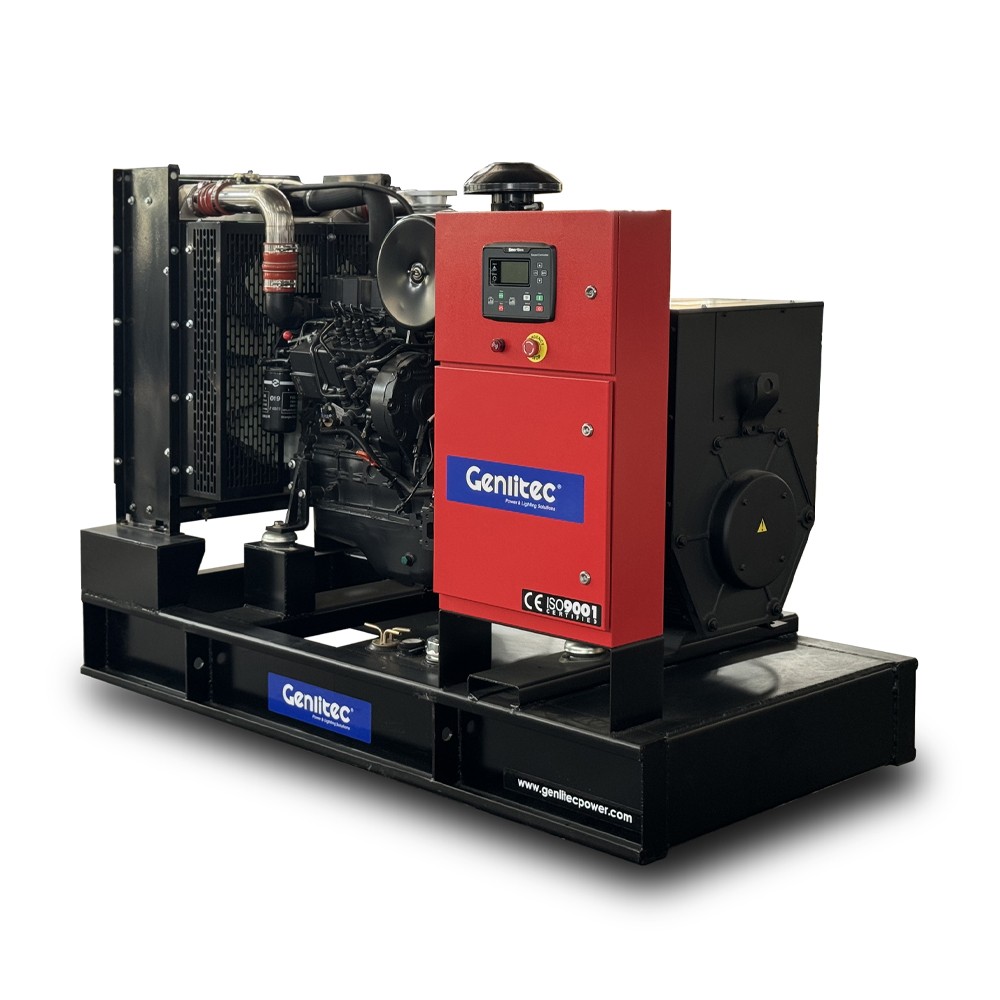

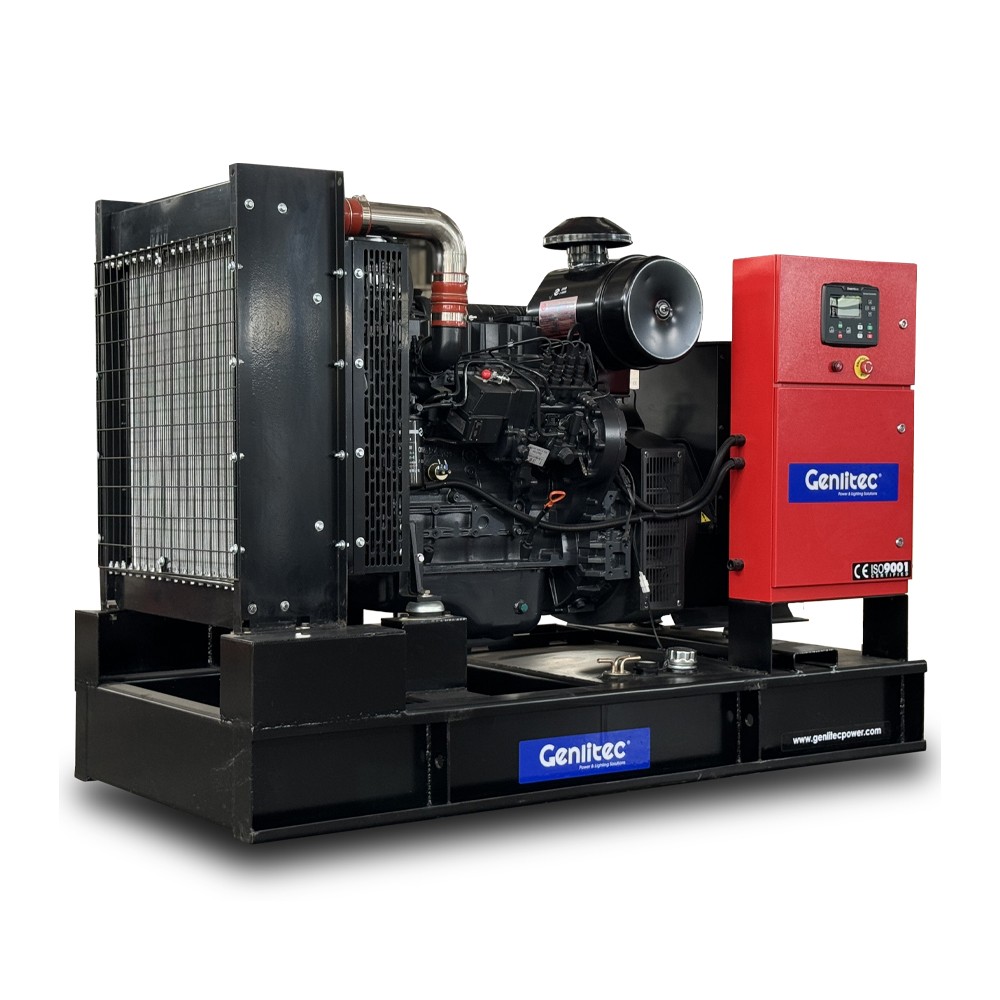

● GENLITEC POWER® 50KW/63KVA SDEC DIESEL GENERATOR SET FEATURES

○ Brand new original SDEC SC4H95D2 brand water cooled diesel engine

○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

Open Type Model	GSC63D5
Silent Type Model	GSC63S5
Prime Power	50KW/63KVA
Standby Power	55KW/70KVA
Phase & Wire	3 Phase, 4 Wires
Power Factor	0.8
Frequency	50Hz
Rated Voltage	220/230V, 230/400V, 240/415V
Fuel Tank Capacity	100L

● DIESEL ENGINE

Engine Model	SDEC SC4H95D2
Cylinder Number	4
Aspiration System	Turbocharged
Cooling Method	Water Cooled
Governor Type	Electronic
Bore x Stroke	105 x 124 mm
Compression Ratio	17.3:1
Rated Speed	1500 RPM
Displacement	4.0L
Rated Power	62KW
Standby Power	68KW
Fuel System	Direct Injection
Oil Capacity	13L
Coolant Capacity	6.8L (Engine Only)
Electric Starting System	DC 24V

● FUEL CONSUMPTION

100% Prime Load	14.8L/H
75% Prime Load	11.0L/H
50% Prime Load	7.5L/H
25% Prime Load	4.2L/H

● ALTERNATOR

Number of Phase	3
Rated Power	50KW/62.5KVA
Frequency	50Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	6/12
Insulation Class	H
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

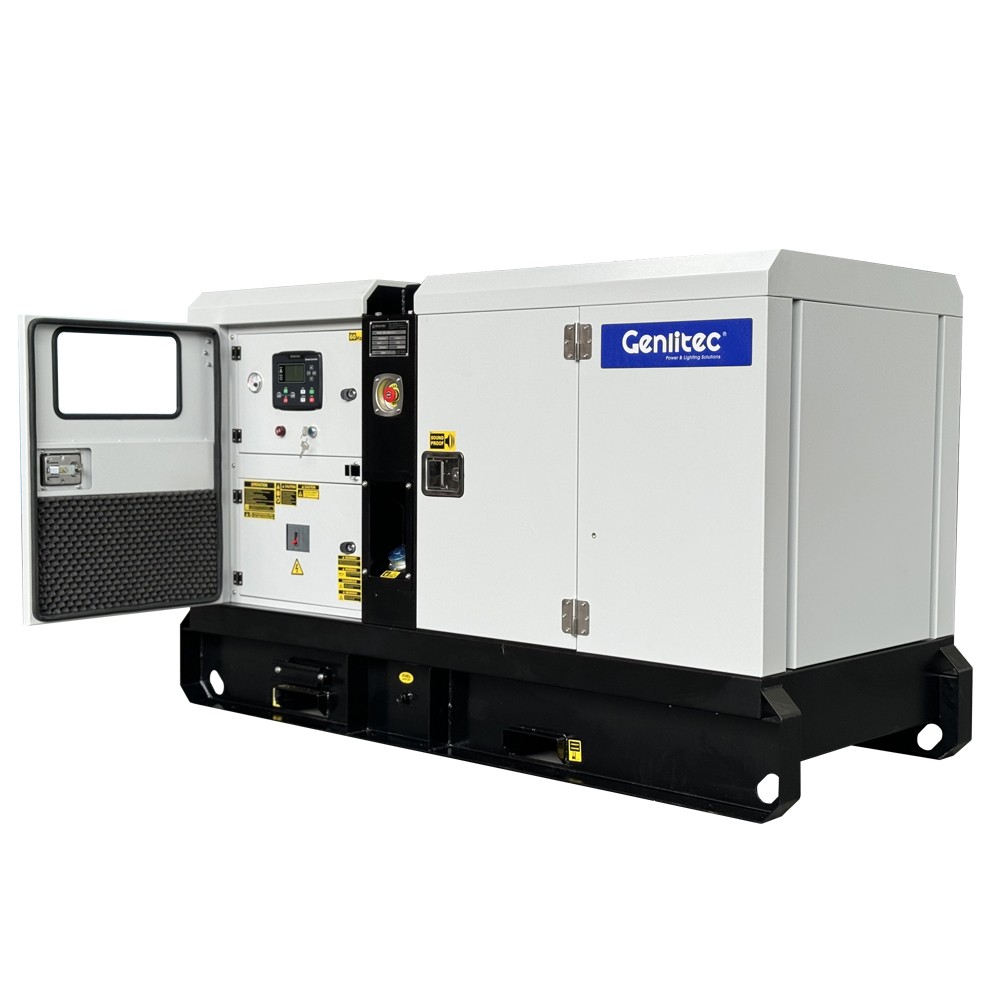

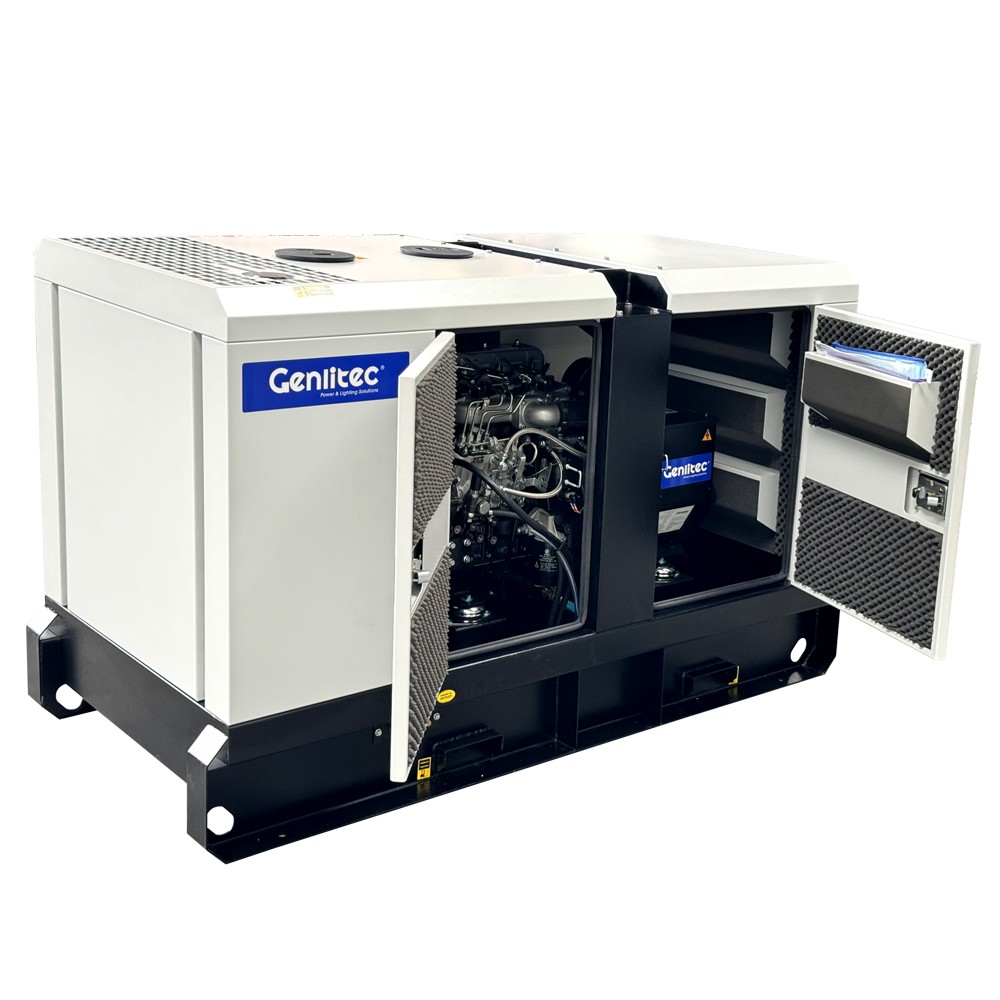

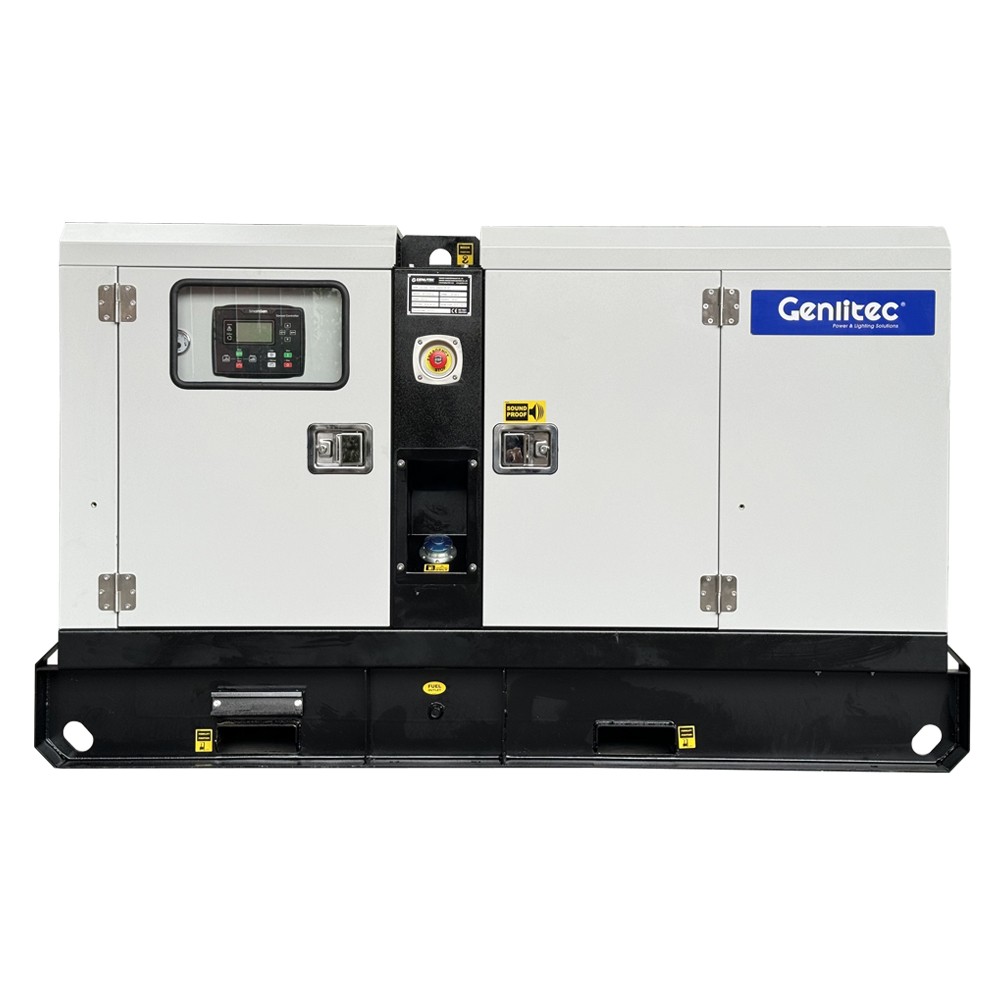

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS (for automatic start & stop when electricity power off & on)

○ Single axle trailer

○ 12 hours fuel tank

○ 24 hours fuel tank

○ Power Sockets (CEE or AUS standard)
