688KVA Deutz Diesel Generator-60Hz

688KVA Deutz Diesel Generator-60Hz
  • 688KVA Deutz Diesel Generator-60Hz
  • 688KVA Deutz Diesel Generator-60Hz
  • 688KVA Deutz Diesel Generator-60Hz
  • 688KVA Deutz Diesel Generator-60Hz
  • 688KVA Deutz Diesel Generator-60Hz
  • 688KVA Deutz Diesel Generator-60Hz

Short Description:

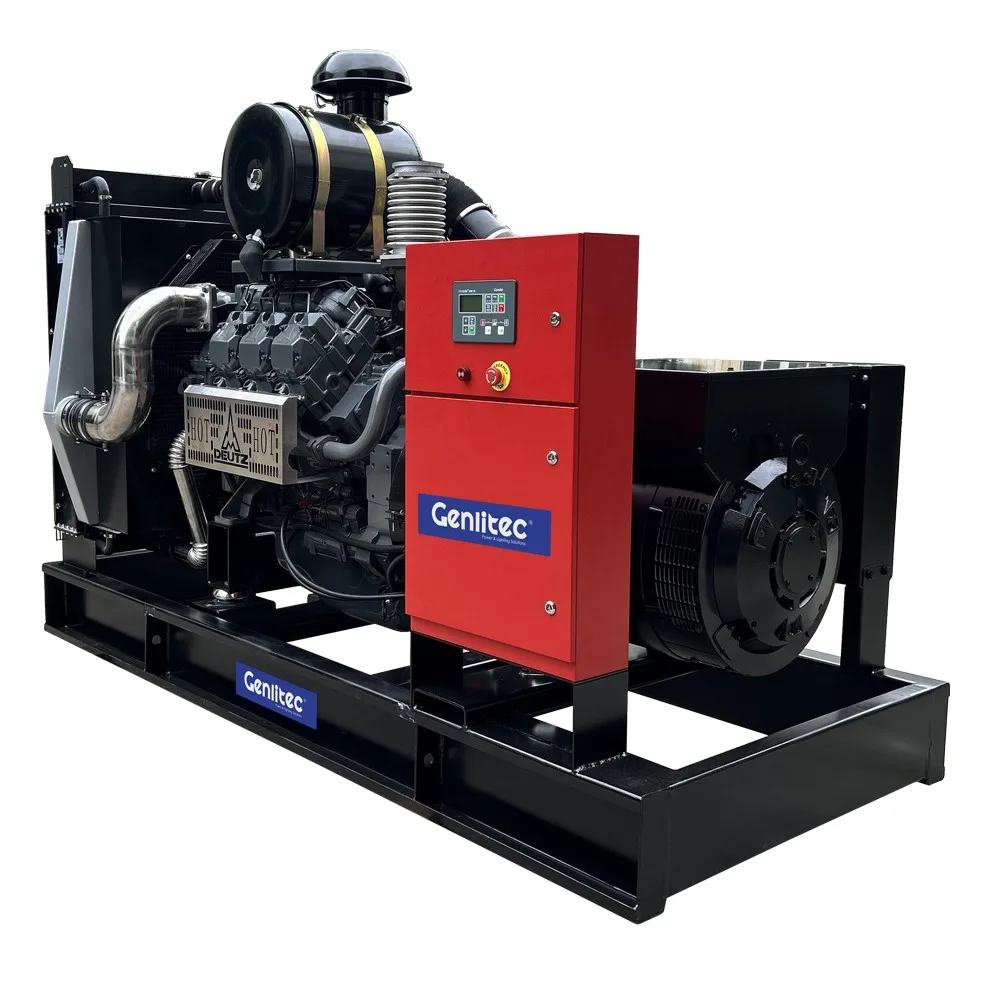

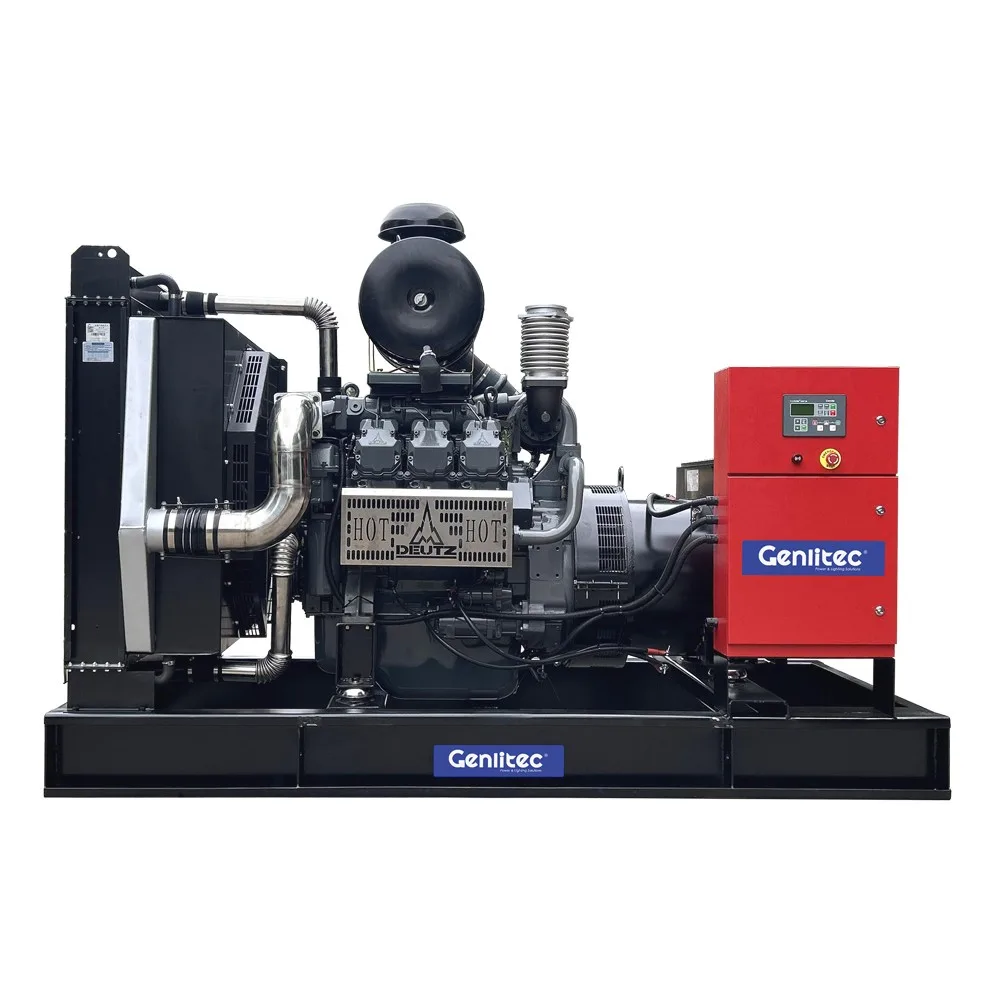

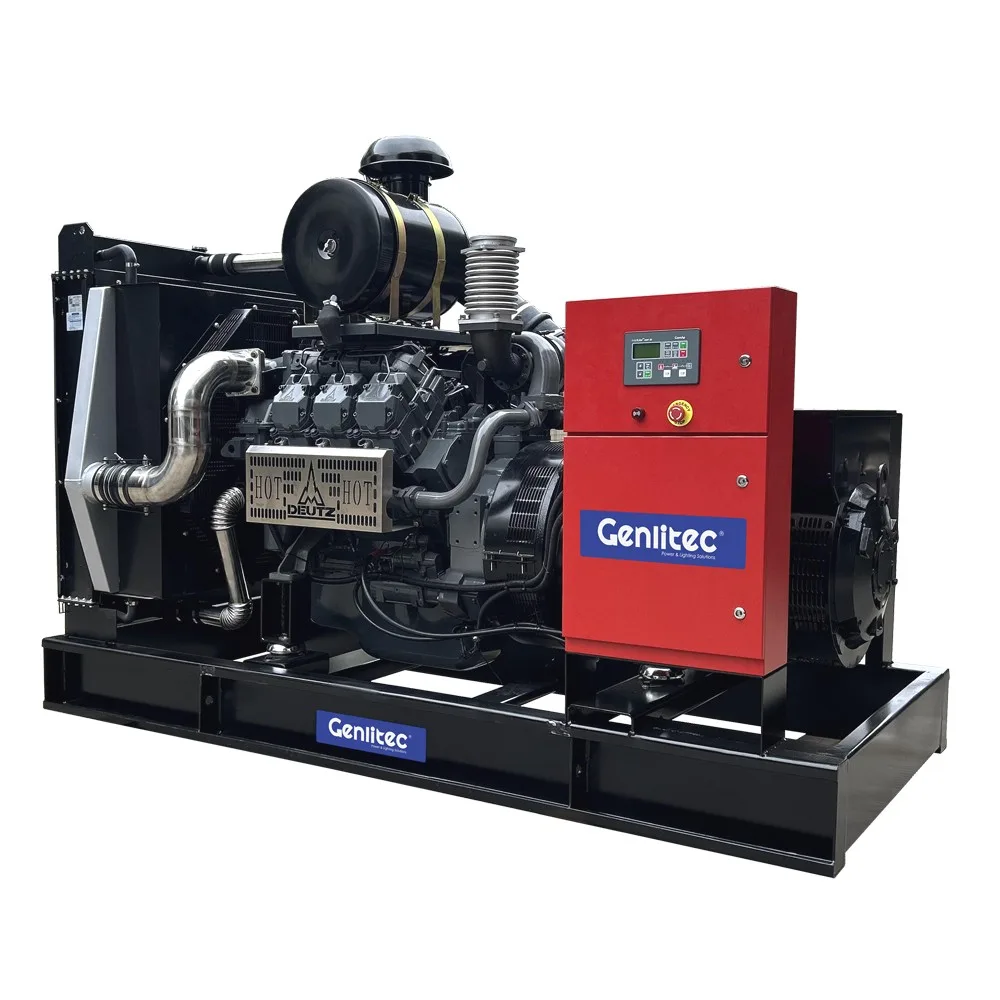

GENLITEC POWER® GPD688D6 (open type), GPD688S6 (silent type) diesel generator set powered by original DEUTZ diesel engine HC12V132ZL-LAG1B, with prime power 550KW/688KVA and standby power 600KW/750KVA....


  • Model: GPD688D6 | GPD688S6
  • Engine: DEUTZ HC12V132ZL-LAG1B
  • Prime Power: 550KW/688KVA
  • Standby Power: 600KW/750KVA
  • Voltage: 110/190V | 120/208V | 127/220V | 254/440V

Product Details

Product Tags

550KW/688KVA DEUTZ DIESEL GENERATOR SET SPECIFICATIONS

  • Standby Power: 600KW/750KVA
  • Prime Power: 550KW/688KVA
  • Frequency: 60Hz
  • Speed: 1800 RPM
  • Voltage: 110/190V (120/208V, 127/220V or 254/440V available according to different countries)
  • Fuel Tank Capacity: 8~10 hours continuous running


ENGINE

  • Powered by: DEUTZ
  • Engine Model: HC12V132ZL-LAG1B


ALTERNATOR

  • Alternator Model: GENLITEC S354G550(STAMFORD & LEROY SOMER alternators for options)
  • High Efficiency
  • IP23 Protection


CONTROL PANEL

  • Emergency stop button
  • Main circuit breaker
  • Float baterry charger
  • Manual/Autostart control panel
  • Fuel level meter
  • Controller power switch
  • Alarm buzzer
  • DEIF digital controller (SMARTGEN, DEEPSEA & COMAP controllers for options)

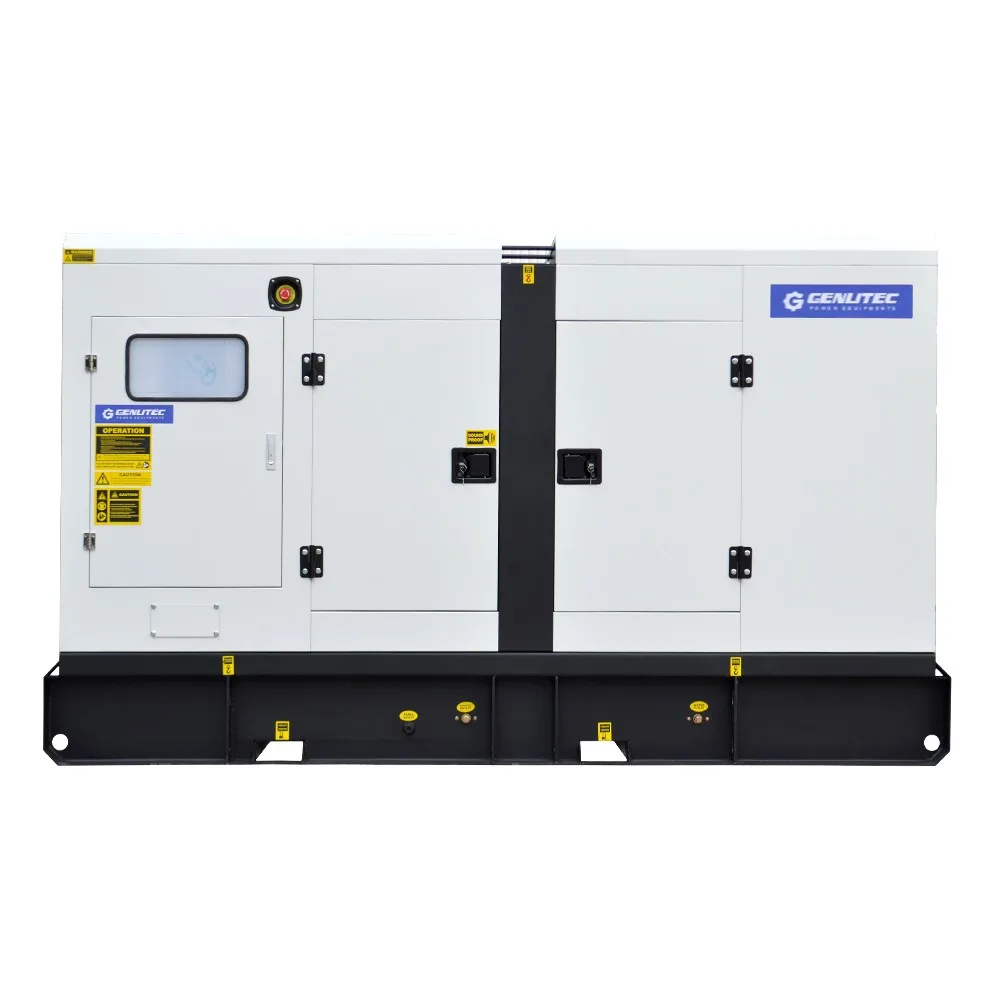

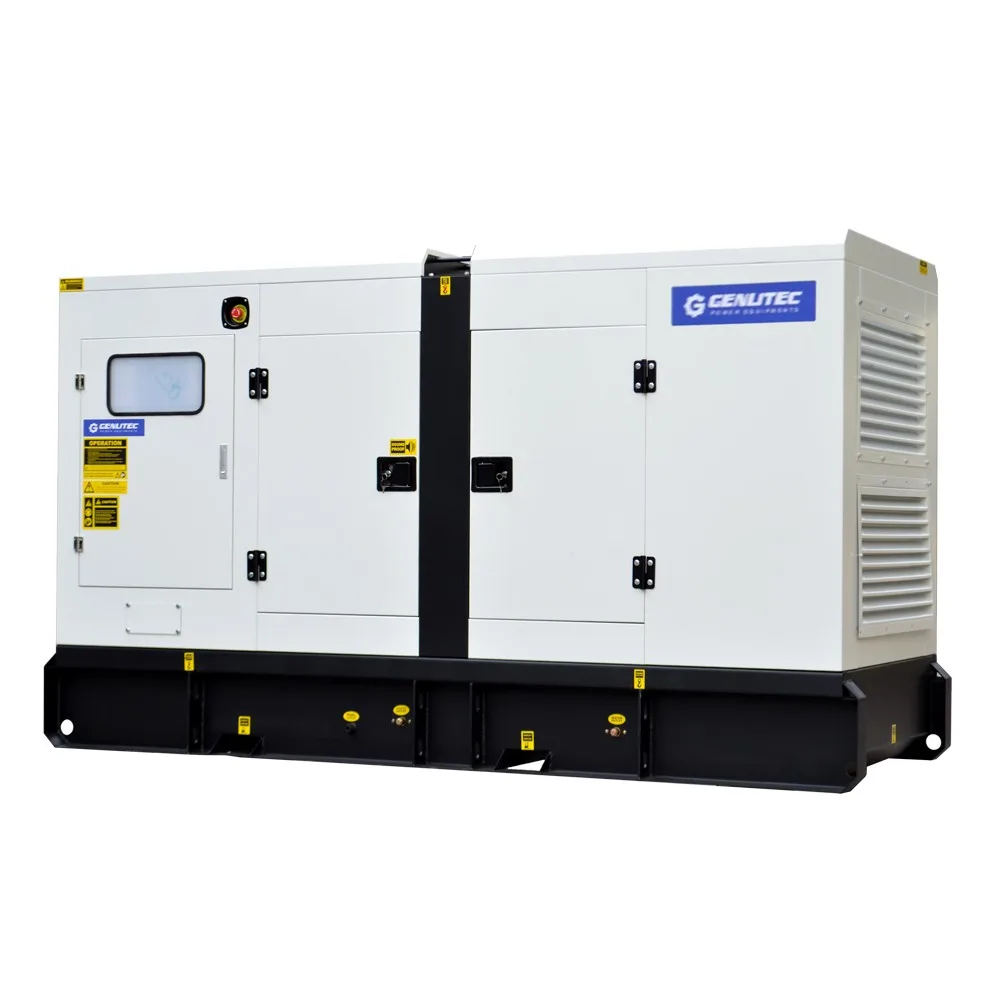

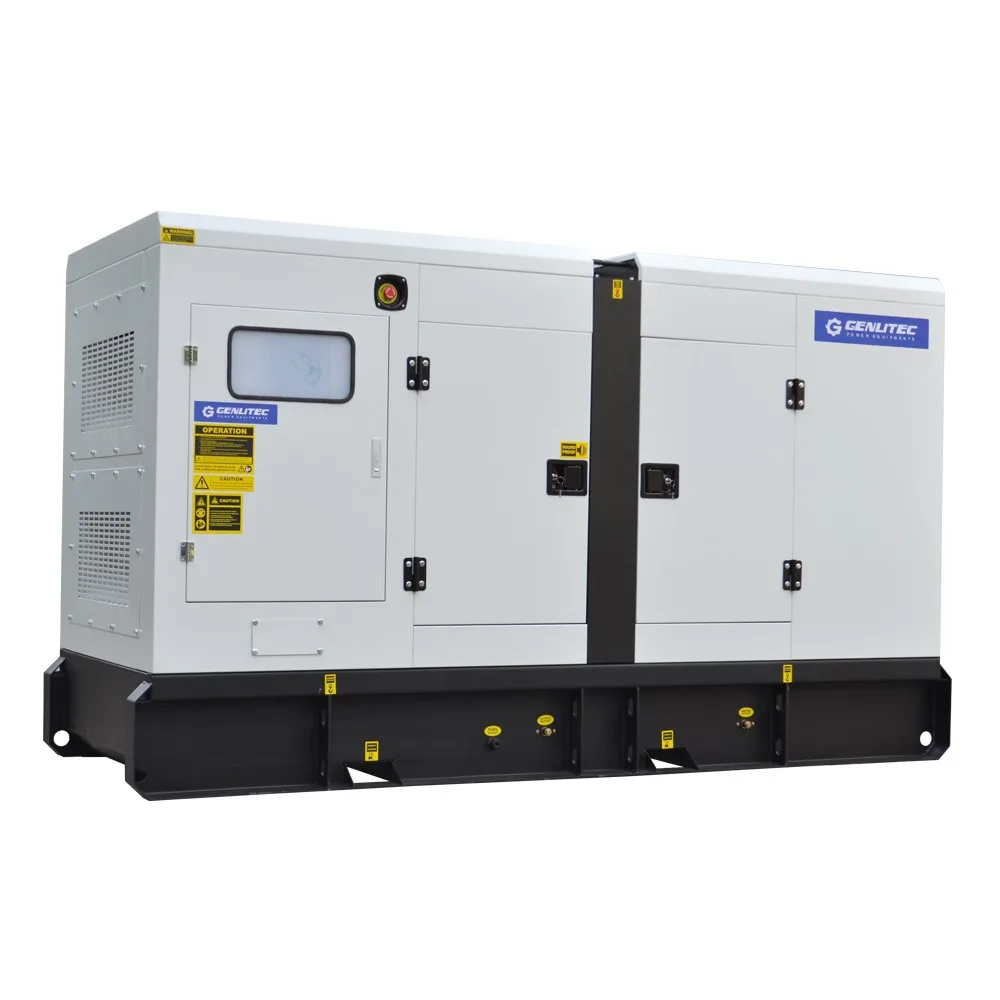

SOUND ATTENUATED ENCLOSURE

  • Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
  • Highly Corrosion Resistant Construction


WARRANTY

  • 12 months or 1000 working hours, whichever comes first


OPTIONS

  • ATS (for automatic start & stop when electricity power off & on)
  • Synchronization panel
  • Remote & Monitoring system (4G, WIFI or Ethernet)
  • 12 hours fuel tank
  • 24 hours fuel tank
  • Power Sockets (CEE or AUS standard)
  • Heater for cold-enviroment starting


ADVANTAGES
