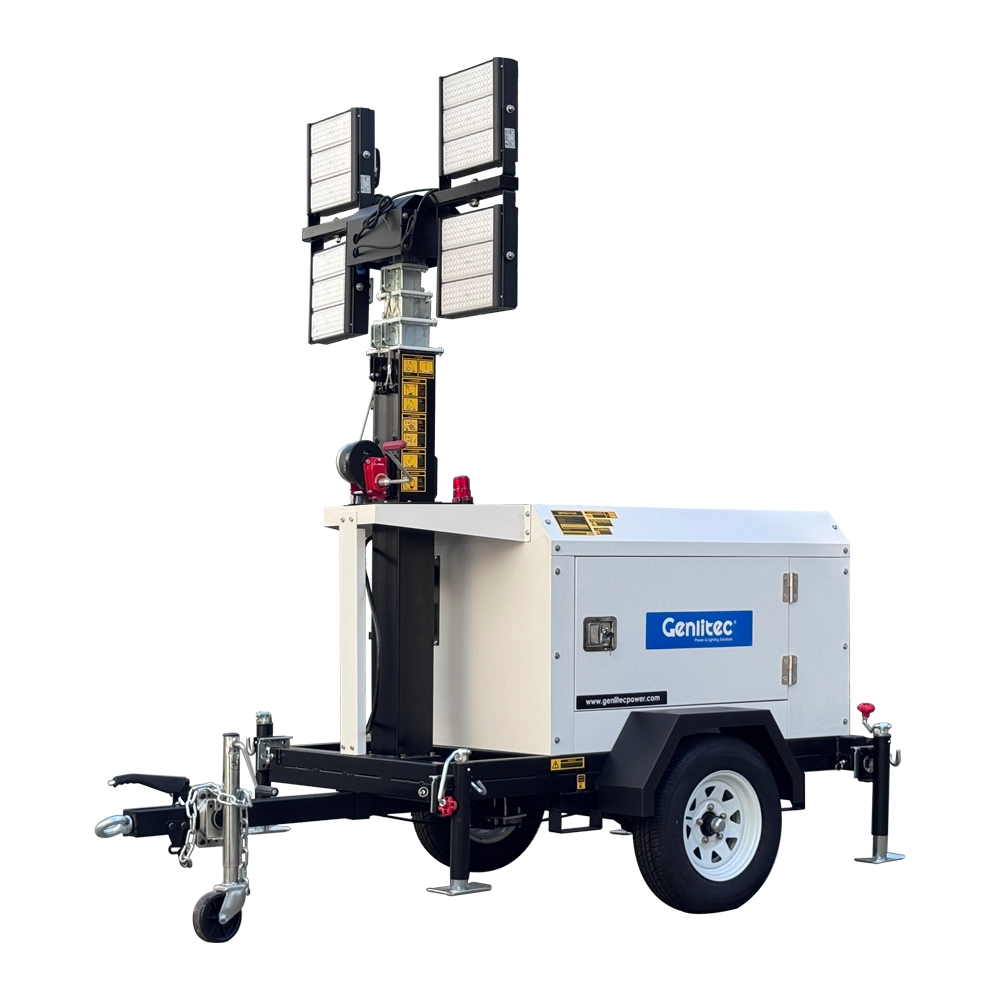

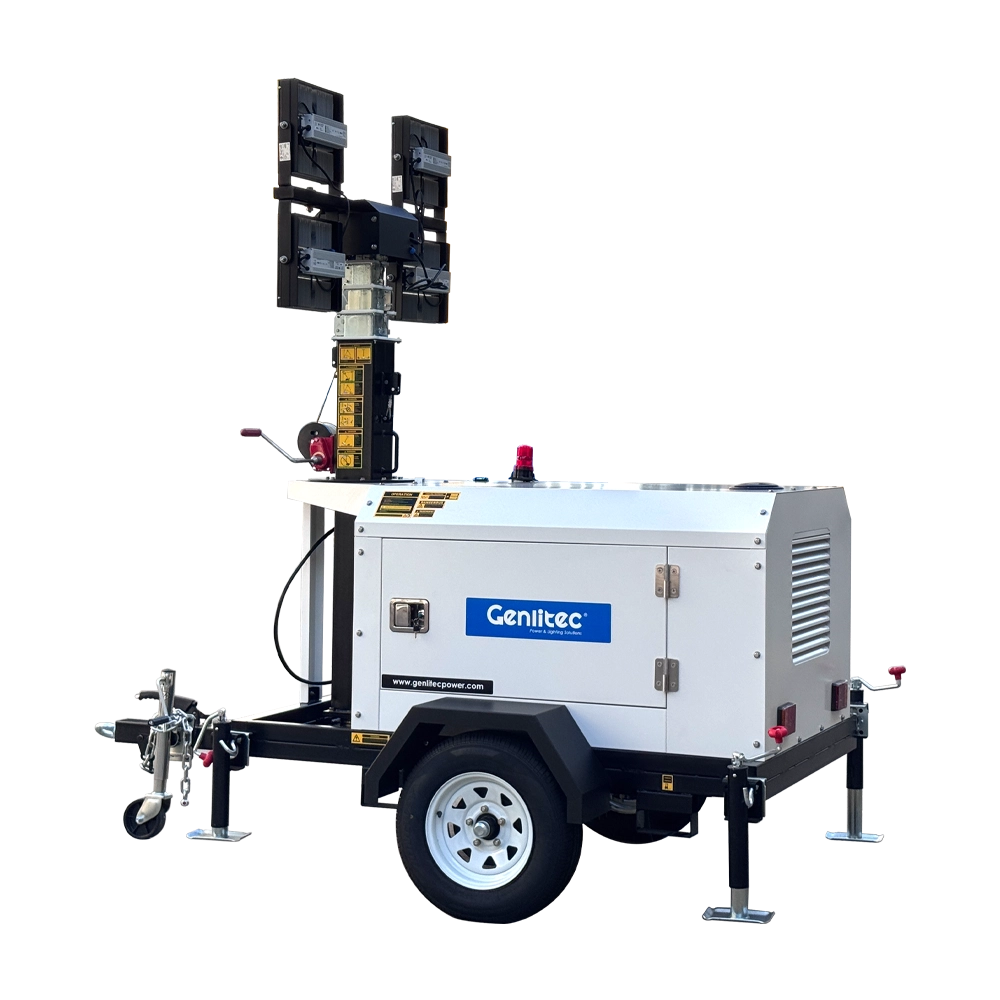

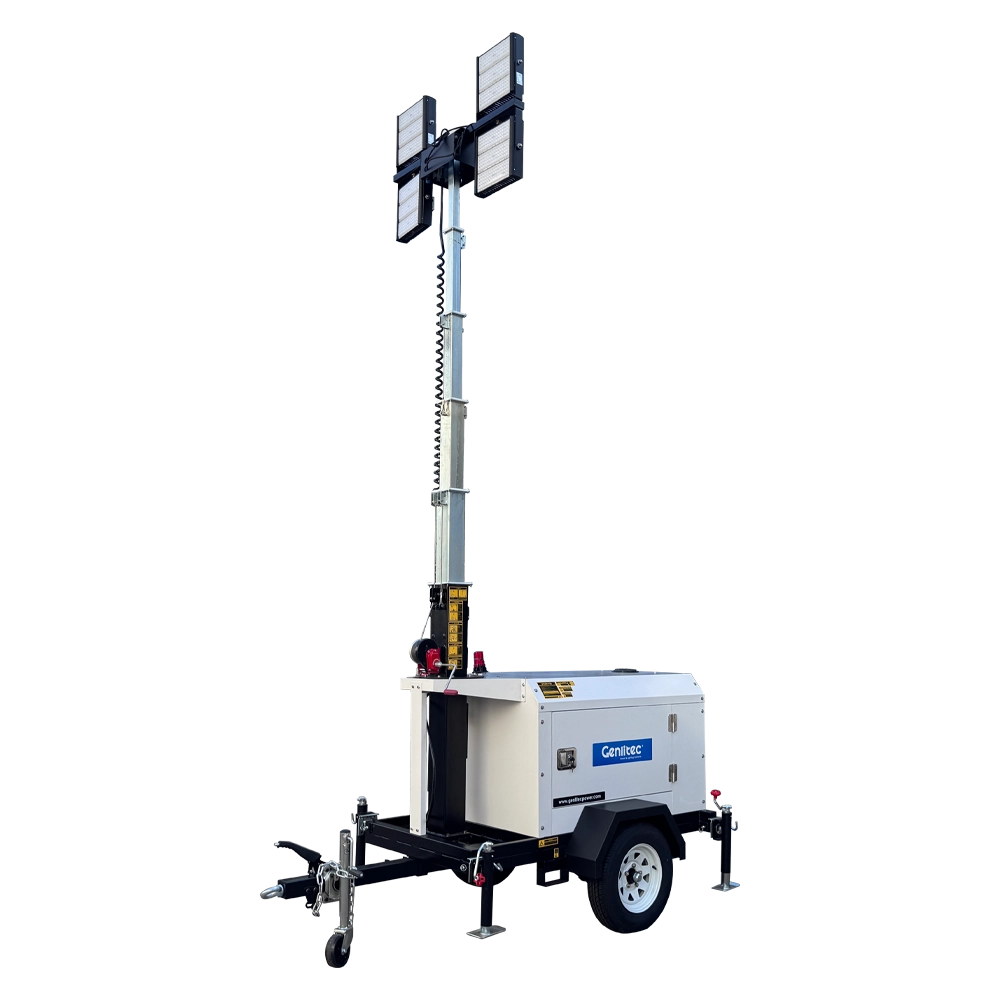

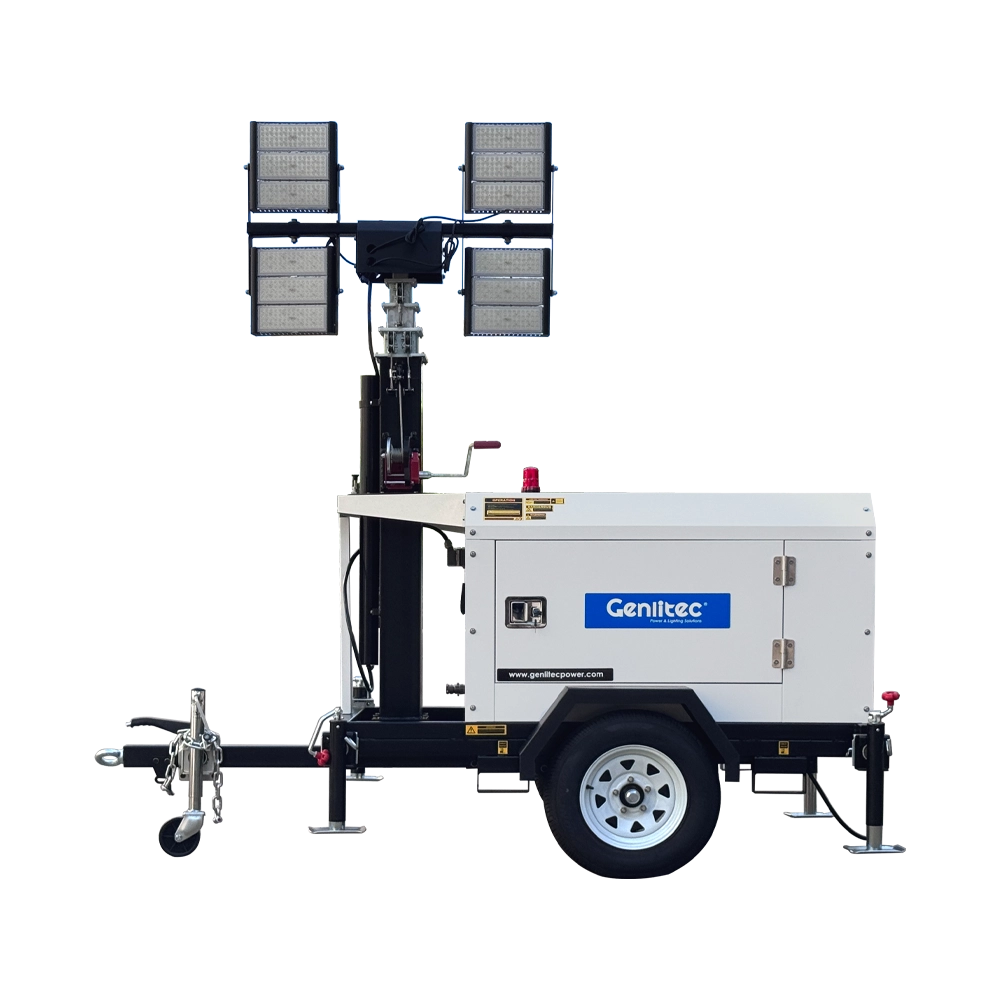

7M Vertical Manual 4x400W LED QUANCHAI Light Tower
● GENLITEC POWER® 7M VERTICAL MANUAL 4X400W LED QUANCHAI GENERATOR LIGHT TOWER FEATURES
○ Brand new original QUANCHAI QC380D water cooled diesel engine
○ Original GENLITEC POWER® single bearing 100% copper brushless alternator
○ 7 metres vertical type manual lifting mast and 358° mast rotation system
○ Equipped with powerful 4x400W LED floodlights, total 240,000 lumens
○ Rating Single Phase, 50/60Hz, 1500/1800RPM, 1.0 PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Control panel equipped with SMARTGEN HGM1790N digital controller, DELIXI brand main circuit breaker, each light with individual circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ Heavy-duty fabricated steel based frame with 100L fuel tank
○ 12V DC electric start system with free-maintenance lead-acid battery
○ Heavy-duty single axle trailer Type with 13 inch tyres, soundproof and rain-proof design ensure outdoor use
○ Complete engine alarm system
○ CE, ISO 9001:2015 approved
● LIGHT TOWER
Model
GLT1600L-7VMQ
Lifting System
7 Metres, Vertical Type Manual Lifting
Mast Rotation System
358° Manual
Total Power of Lights
4 x 400W LED
Frequency
50Hz
Voltage
220~240V
Phase
Single
Rated Power
7.0KW/50Hz; 8.0KW/60Hz
Trailer Structure
Single Axle, 13inch Tyres
● DIESEL ENGINE
Engine Model
QUANCHAI QC380D
Cylinder Number
3
Aspiration System
Natural
Cooling Method
Water Cooled
Combustion System
Direct Injection
Bore x Stroke
80 x 90 mm
Compression Ratio
18:1
Engine Speed
1500/1800RPM
Displacement
1.357L
Rated Power
9.0KW/1500RPM; 11.0KW/1800RPM
Coolant Capacity
6.5L
Oil Capacity
4.0L
Governor Type
Mechanical
Electric Starting System
DC 12V
● ALTERNATOR
Number of Phase
Single
Rated Power
6~8KW
Frequency
50/60Hz
Power Factor
1.0
Temp. Rise
125K
Insulation Class
H
Ambient Temp.
40℃
IP Rating
IP23
Excitation System
Self-Excited
Bearing
Single
Coating
Vacuum Impregnation
Voltage Regulator
A.V.R
Coupling
Flexible Disc
● OPERATION MAST
Max. Height of Mast
7 Metres
Lifting System
Vertical Type, Manual
Lifting Method
Self-Lock Winch
Mast Stages
6
Rotation System
358° Manually
Mast Material
Galvanization Steel Tube
Winch Type
1 x 1800 LBS
● LAMPS
Total Power of Lamps
4 x 400W
Lamps Type
LED Floodlights
Light Capacity
4 x 60,000 Lumens
Design Lifetime
≥50,000 Hours
Working Temp.
-25℃~50℃
Light Coverage
5~7 Acres
Protection Grade
IP65
● CONTAINER LOADING CAPACITY
20GP CONTAINER
Max. 6 Sets
40HQ CONTAINER
Max. 12 Sets
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker & individual circuit bearker for lights
○ Hour meter
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer
● TRAILER & SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
○ Heavy-duty single axle trailer with 13'' tyres
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ 4x350 LED floodlights
○ SMARTGEN automatic lighting controller ALC404 (Sunrise & Sunset Start/Stop Fuction)
