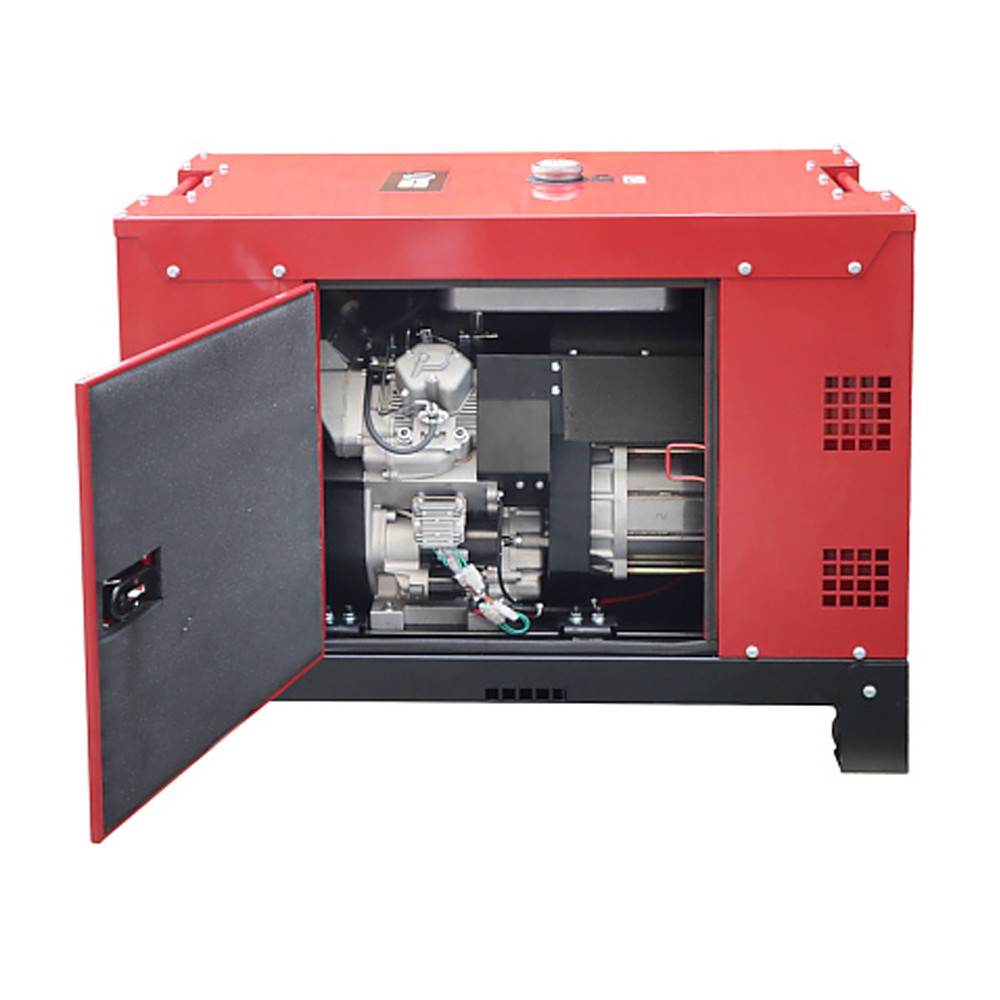

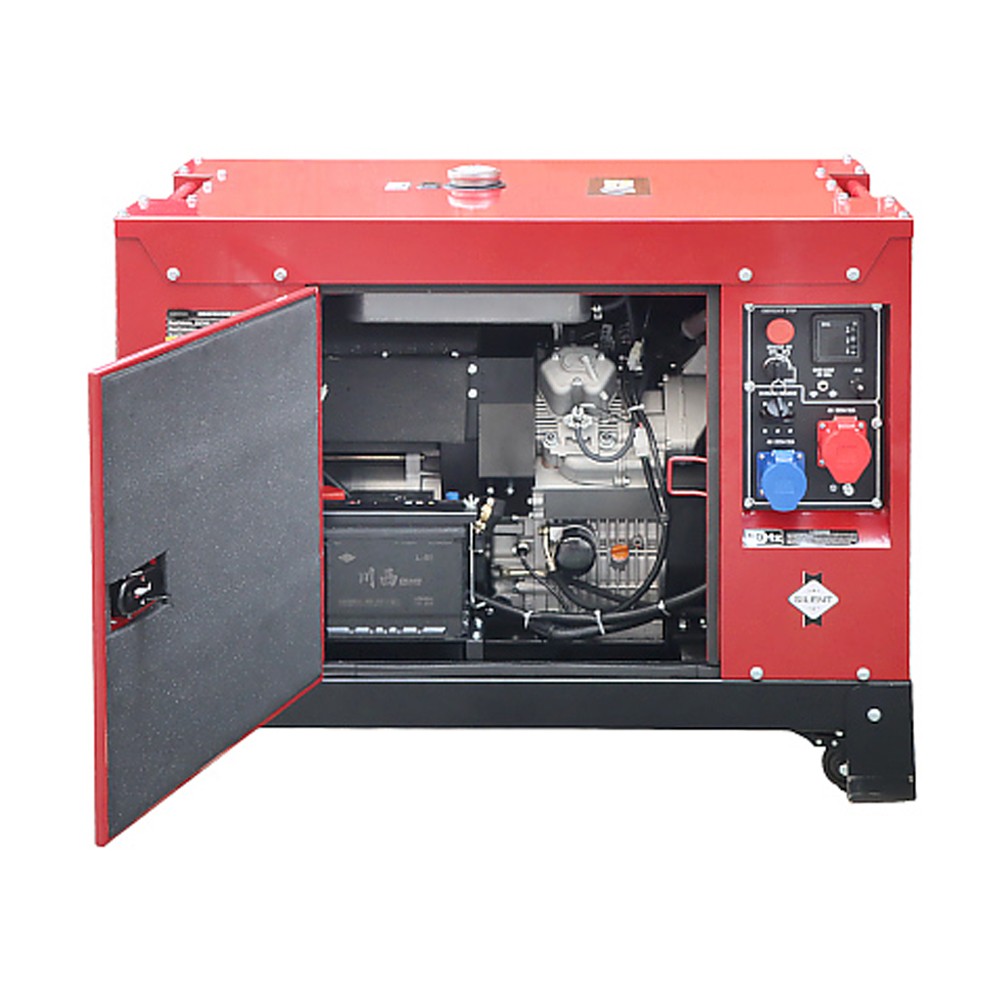

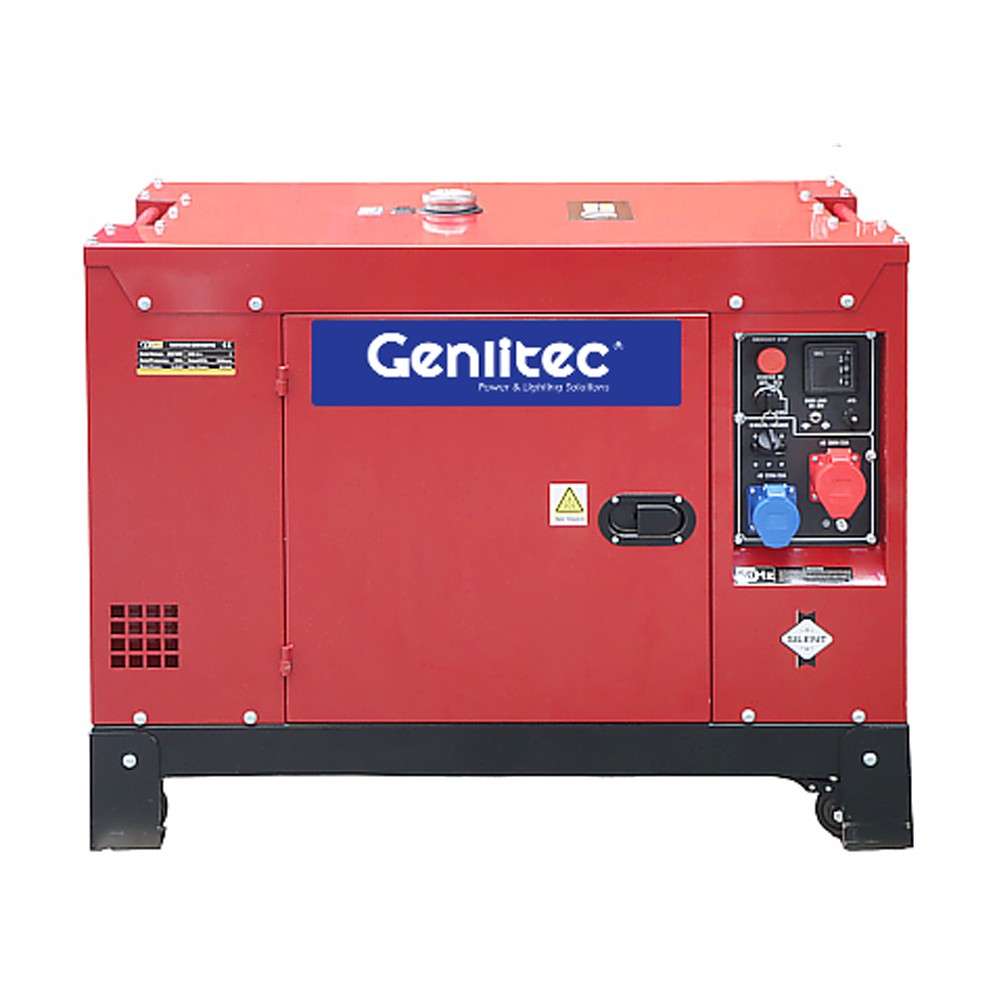

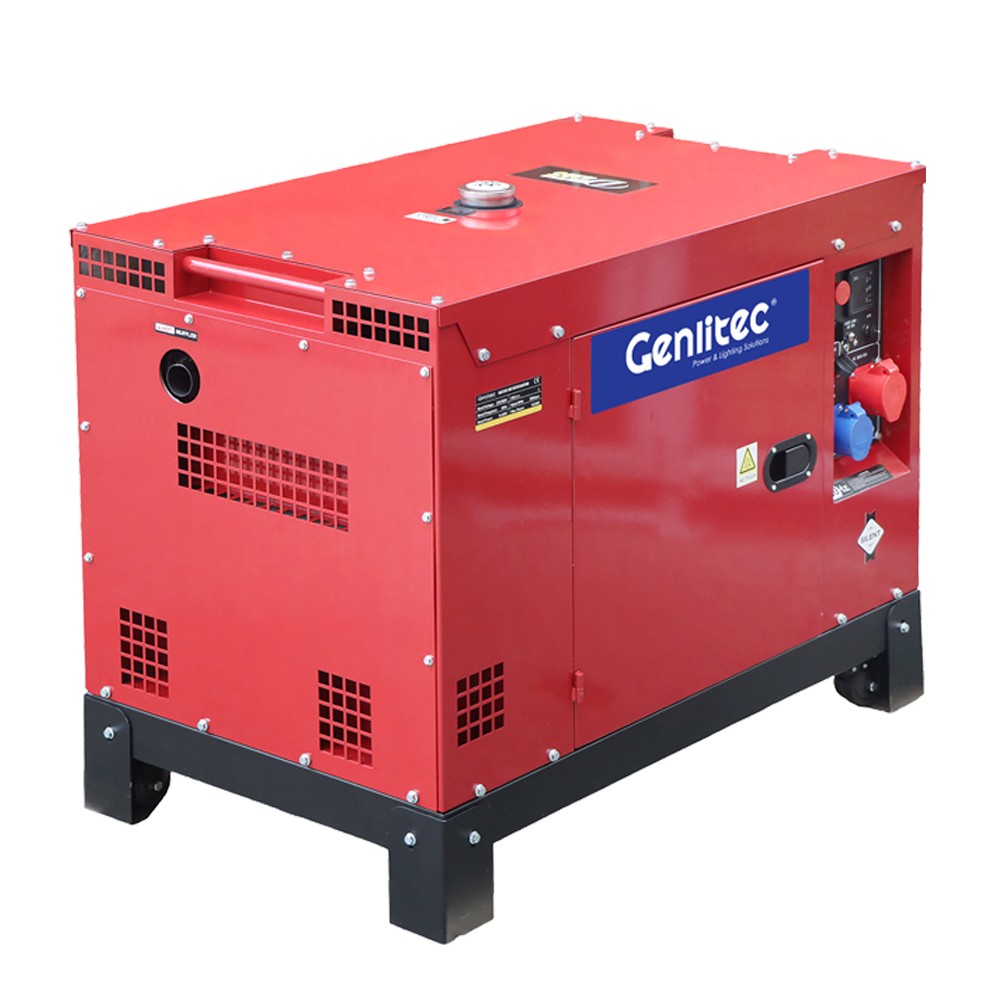

DG12000S 10KW Portable Diesel Generator
|
MODEL |
DG12000S |
DG15000S |
DG22000S |
||||
|
GENERATOR |
Frequency (Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
|
Rated Voltage (V) |
110~240 |
||||||
|
Max. Output (KW) |
10.5 |
11.5 |
11.5 |
12.5 |
15.5 |
16.5 |
|
|
Rated Output (KW) |
10 |
11 |
11 |
12 |
15 |
16 |
|
|
Power Factor |
1.0 |
||||||
|
Phase |
Single |
||||||
|
Excitation Mode |
Brush, Self-Excited Constant Voltage (with AVR) |
||||||
|
Insulation Class |
F |
||||||
|
Fuel Tank Capacity (L) |
25 |
||||||
|
ENGINE |
Model |
DE2V920 (2V88) |
DE2V1000 (2V92) |
DE2V1250 (2V95) |
|||
|
Type |
Air Cooled, V-Twin Cylinder, 4-Stroke |
||||||
|
Speed (RPM) |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
|
|
Bore x Stroke (mm) |
88 x 75 |
92 x 75 |
95 x 88 |
||||
|
Displacement (L) |
0.912 |
0.997 |
1.247 |
||||
|
Compression ratio |
20:1 |
||||||
|
Power (KW) |
13.8 |
14.8 |
14.8 |
16 |
18 |
19 |
|
|
Fuel Type |
0# (Summer); -10# (Winter) Diesel Oil |
||||||
|
Lubrication Type |
SAE10W30 (CD Grade Above) |
||||||
|
DIMENSION |
Dimension (LxWxH) (mm) |
1110x660x875 |
1110x660x875 |
1200x690x895 |
|||
|
Net Weight (kg) |
257 |
267 |
297 |
||||
|
STANDARD ACCESSORIES |
Voltmeter |
√ |
|||||
|
AC Output Socket |
2 pcs |
||||||
|
AC Circuit Breaker |
√ |
||||||
|
Oil Warning Light |
√ |
||||||
|
Oil Alert |
√ |
||||||
|
Electric Start & Battery |
√ |
||||||
|
Wheels |
√ |
||||||
|
Hour Meter |
√ |
||||||
|
DC Output Socket |
√ |
||||||
|
OPTIONS ACCESSORIES |
Three Phase Output |
○ |
|||||
|
ATS |
○ |
||||||
