● GENLITEC POWER® 6.7KW/6.7KVA KUBOTA DIESEL GENERATOR SET FEATURES

○ Brand new original KUBOTA D1105-E2BG-CHN brand water cooled diesel engine

○ STAMFORD or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 230V, Single Phase, 50Hz, 1500RPM, 1.0PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 12V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

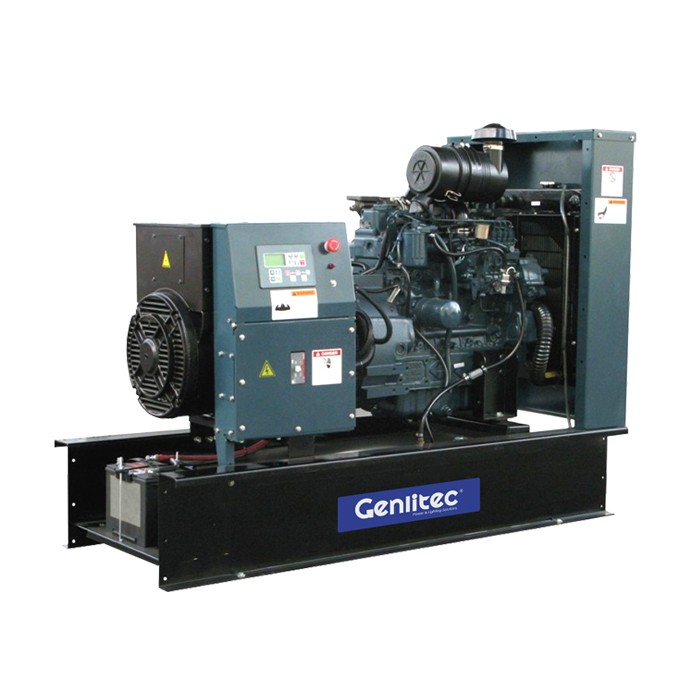

Open Type Model	GPK7D5-1P
Silent Type Model	GPK7S5-1P
Frequency	50Hz
Phase & Wires	Single Phase, 2 Wires
Power Factor	1.0
Prime Power	6.7KW/6.7KVA
Standby Power	7.4KW/7.4KVA
Rated Voltage	220~240V
Fuel Tank Capacity	20L

● DIESEL ENGINE

Engine Model	Kubota D1105-E2BG-CHN
Aspiration System	Natural
Cooling Method	Water Cooled
Combustion System	E-TVCS
Bore x Stroke	78 x 78.4mm
Compression Ratio	22:1
Rated Speed	1500 RPM
Displacement	1.123L
Rated Power	8.4KW
Standby Power	9.5KW
Fuel Injection Pump	Bosch Type PFR MD Pump
Cylinder Number	3
Oil Capacity	5.1L
Charger Alternator Capacity	12V-30A
Electric Starting System	DC 12V

● FUEL CONSUMPTION

100% Prime Load	-
75% Prime Load	1.9L/H
50% Prime Load	-
25% Prime Load	-

● ALTERNATOR

Coupling	Flexible Disc
Number of Phase	Single
Rated Power	8KW/8KVA
Frequency	50Hz
Power Factor	1.0
Poles	2
Temp. Rise	125K
Insulation Class	H
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-excited
Bearing	Single
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

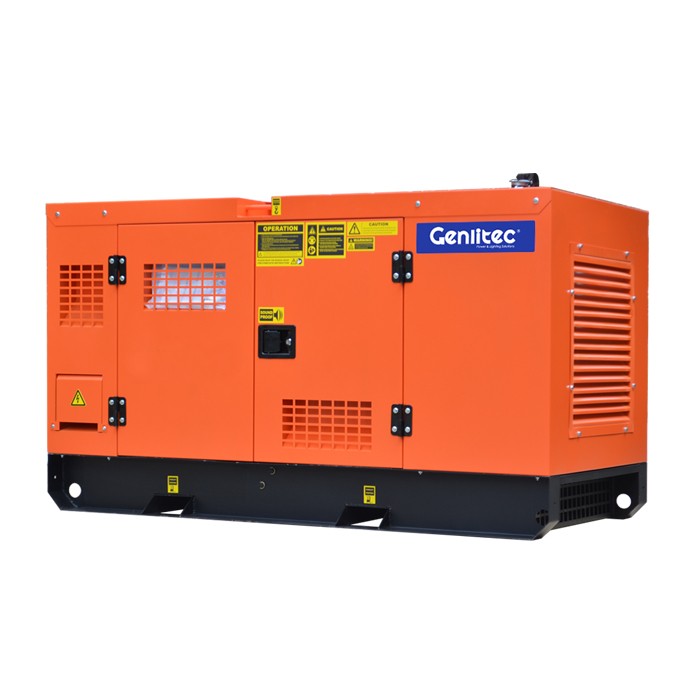

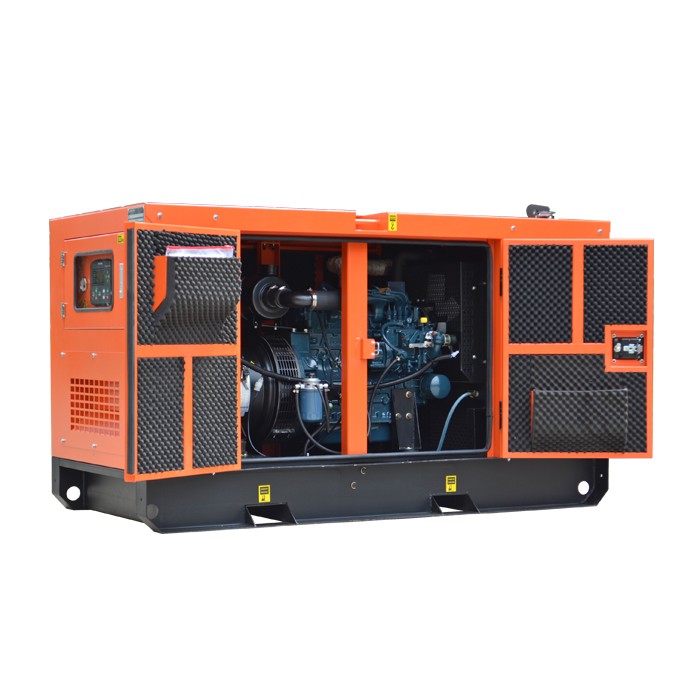

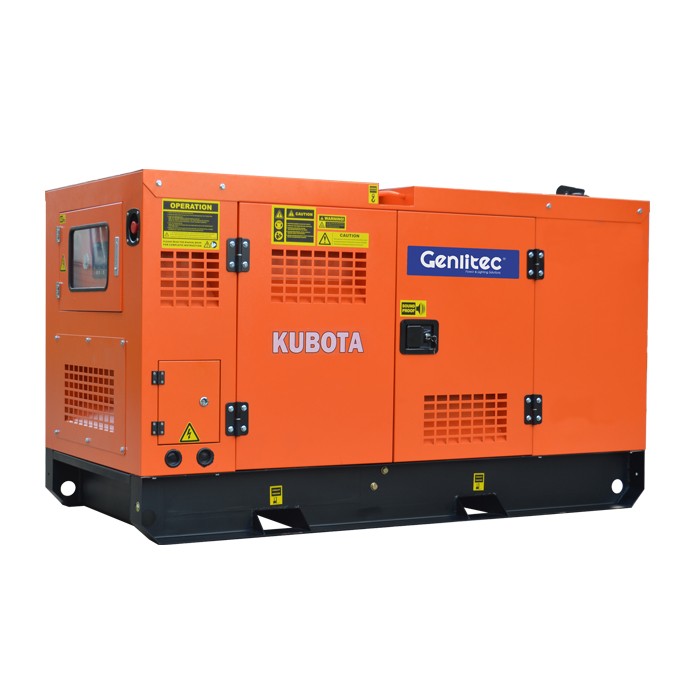

● GENLITEC POWER® D-TYPE SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS (for automatic start & stop when electricity power off & on)

○ Heavy-Duty trailer

○ 12 hours fuel tank

○ 24 hours fuel tank

○ Power Sockets (CEE or AUS standard)

○ Heaters

○ Remote & Monitoring System
