● GENLITEC POWER® 80KW/100KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS 6BT5.9-G2 brand water cooled diesel engine

○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 190~480V, 3-Phase, 60Hz, 1800RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

Open Type Model	GPC100D6
Silent Type Model	GPC100S6
Prime Power	80KW/100KVA
Standby Power	88KW/110KVA
Phase & Wire	3 Phase, 4 Wires
Power Factor	0.8
Frequency	60Hz
Rated Voltage	110/190V; 120/208V; 127/220V; 254/440V; 277/480V
Fuel Tank Capacity	150L

● DIESEL ENGINE

Engine Model	CUMMINS 6BT5.9-G2
Cylinder Number	6
Aspiration System	Turbocharged
Cooling Method	Water Cooled
Governor Type	Electronic
Bore x Stroke	102 x 120 mm
Compression Ratio	17.3:1
Rated Speed	1800RPM
Displacement	5.9L
Rated Power	100KW
Standby Power	110KW
Fuel System	BYC PB Pump
Oil Capacity	16.4L
Coolant Capacity	7.9L
Eletric Starting System	DC 24V

● FUEL CONSUMPTION

100% Prime Load	22L/H
75% Prime Load	17L/H
50% Prime Load	11L/H
25% Prime Load	7L/H

● ALTERNATOR

Number of Phase	3
Rated Power	80KW/100KVA
Frequency	60Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	6/12
Insulation Class	H
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

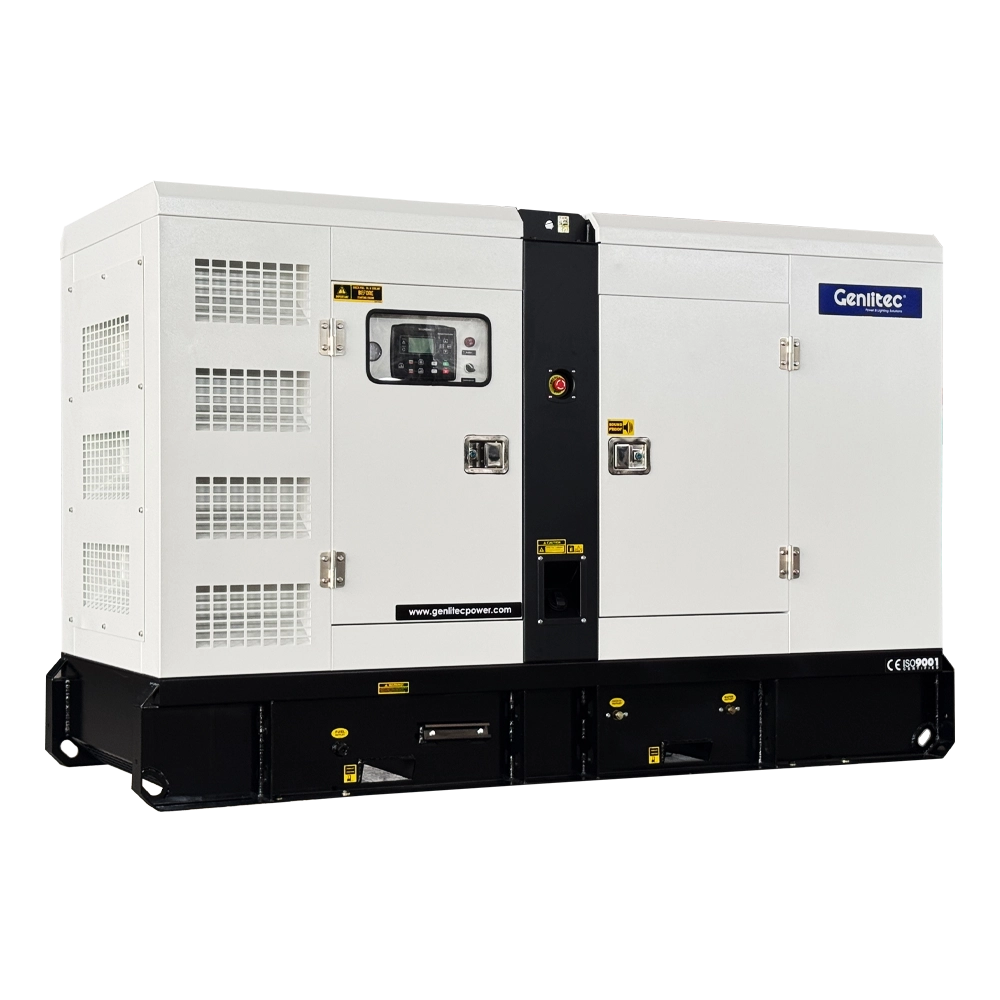

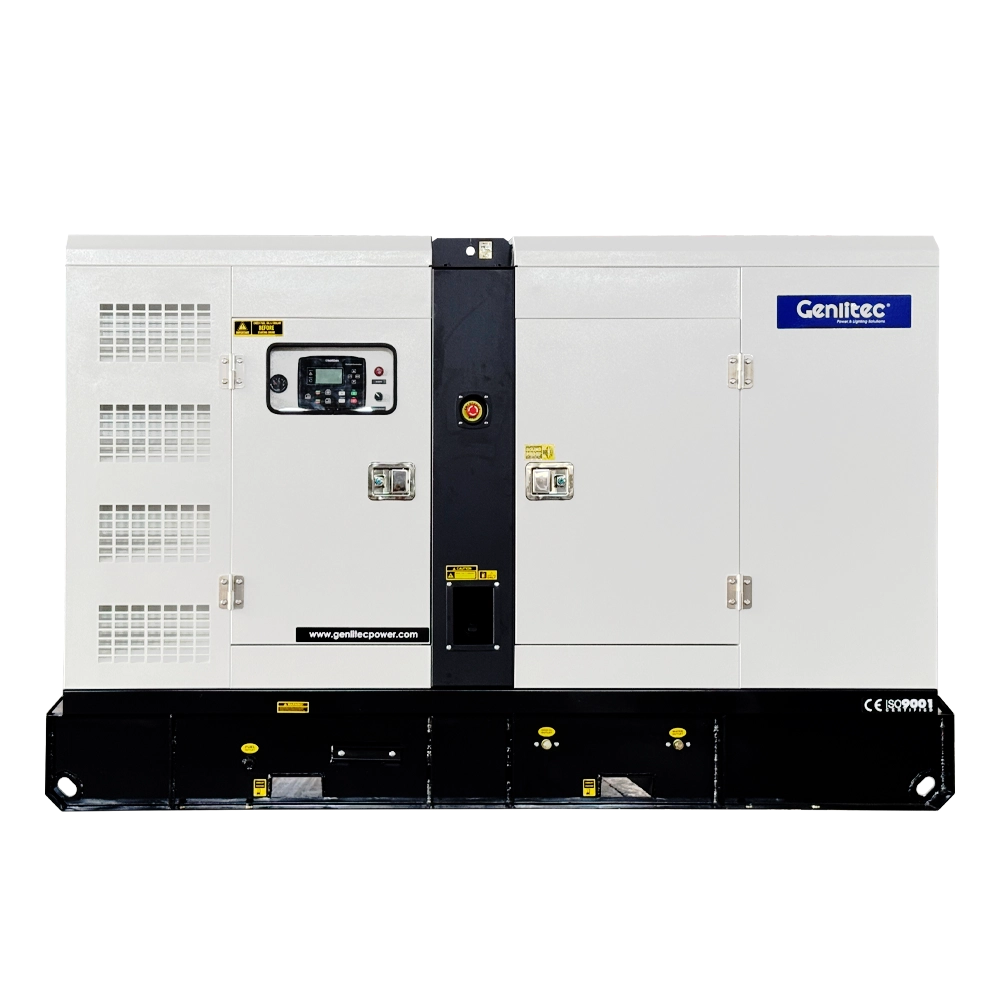

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS (for automatic start & stop when electricity power off & on)

○ Single axle trailer

○ 12 hours fuel tank

○ 24 hours fuel tank

○ Power Sockets (CEE or AUS standard)
