200KVA Cummins Diesel Generator-60Hz
● GENLITEC POWER® 160KW/200KVA CUMMINS DIESEL GENERATOR SET FEATURES
○ Brand new original CUMMINS 6CTA8.3-G2 brand water cooled diesel engine
○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 127/220V, 3-Phase 4-Wires, 60Hz, 1800RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system
● GENERATOR SET

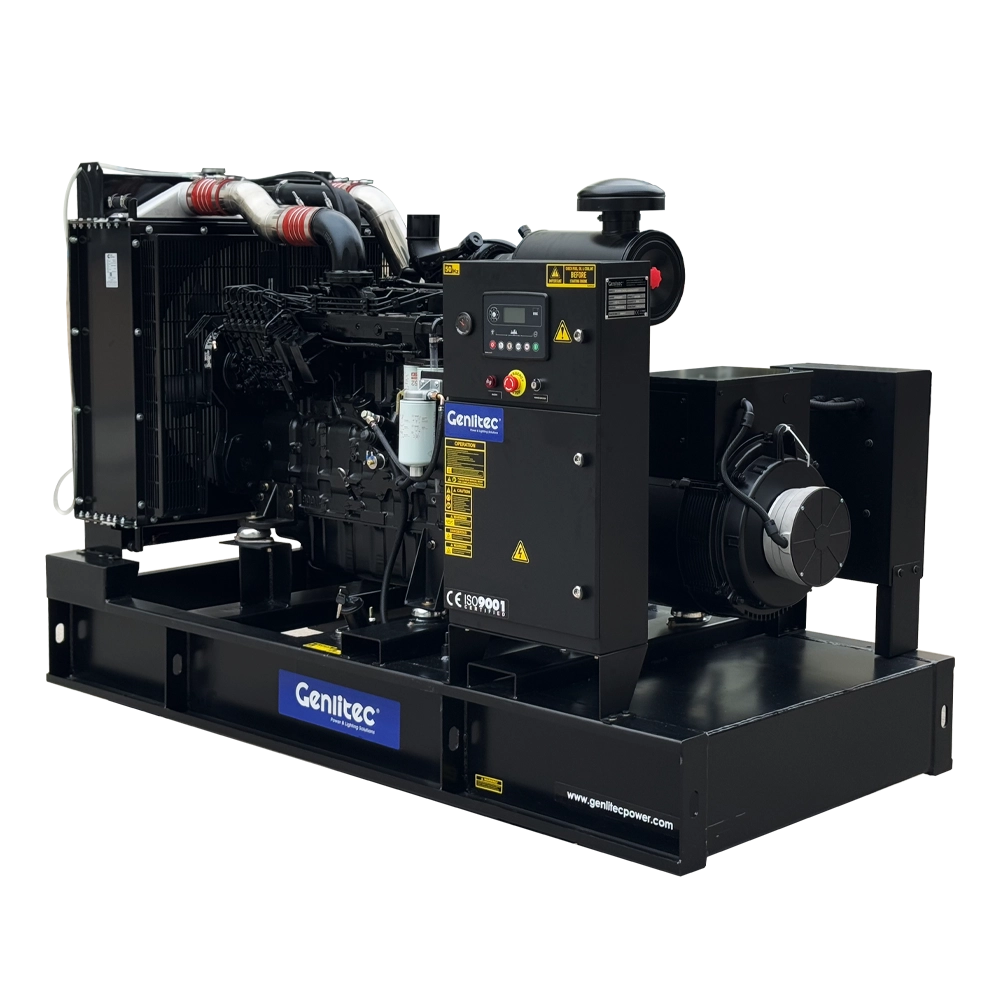

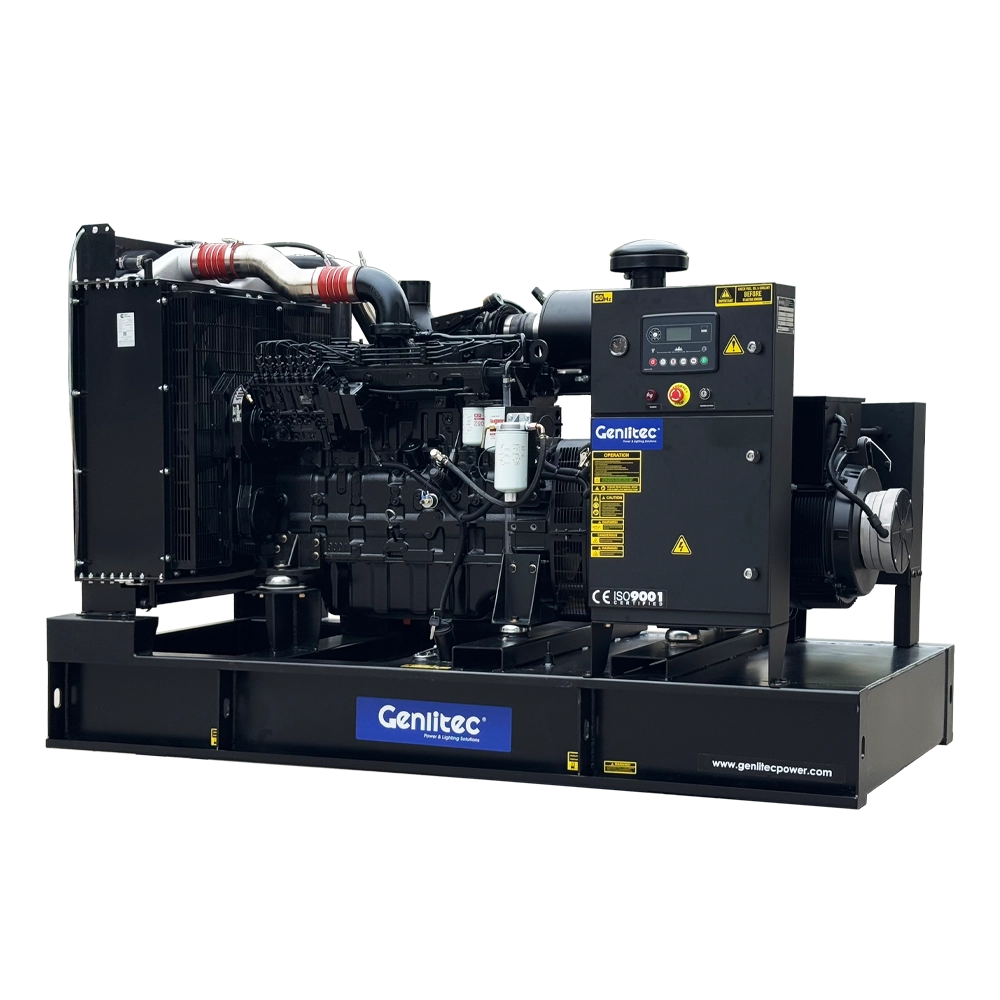

| Open Type Model | GPC200D6 |
| Silent Type Model | GPC200S6 |
| Prime Power | 160KW/200KVA |
| Standby Power | 176KW/220KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 60Hz |
| Voltage | 110/190V, 120/208V, 127/220V, 254/440V, 277/480V |
● DIESEL ENGINE
| Model | CUMMINS 6CTA8.3-G2 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged & Charge Air Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1800 RPM |
| Displacement | 8.3L |
| Rated Power | 170KW |
| Standby Power | 187KW |
| Fuel System | Direct Injection |
| Oil Capacity | 27.6L |
| Coolant Capacity | 12.3L (Engine Only) |
| Electric Starting System | DC 24V |
● FUEL CONSUMPTION
| 100% Prime Power | 44L/H |
|
75% Prime Power |
33L/H |
|
50% Prime Power |
23L/H |
|
25% Prime Power |
14L/H |
● ALTERNATOR
| Number of Phase | 3 |
| Rated Power | 160KW/200KVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 6/12 |
| Insulation Type | H Class |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitatin System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

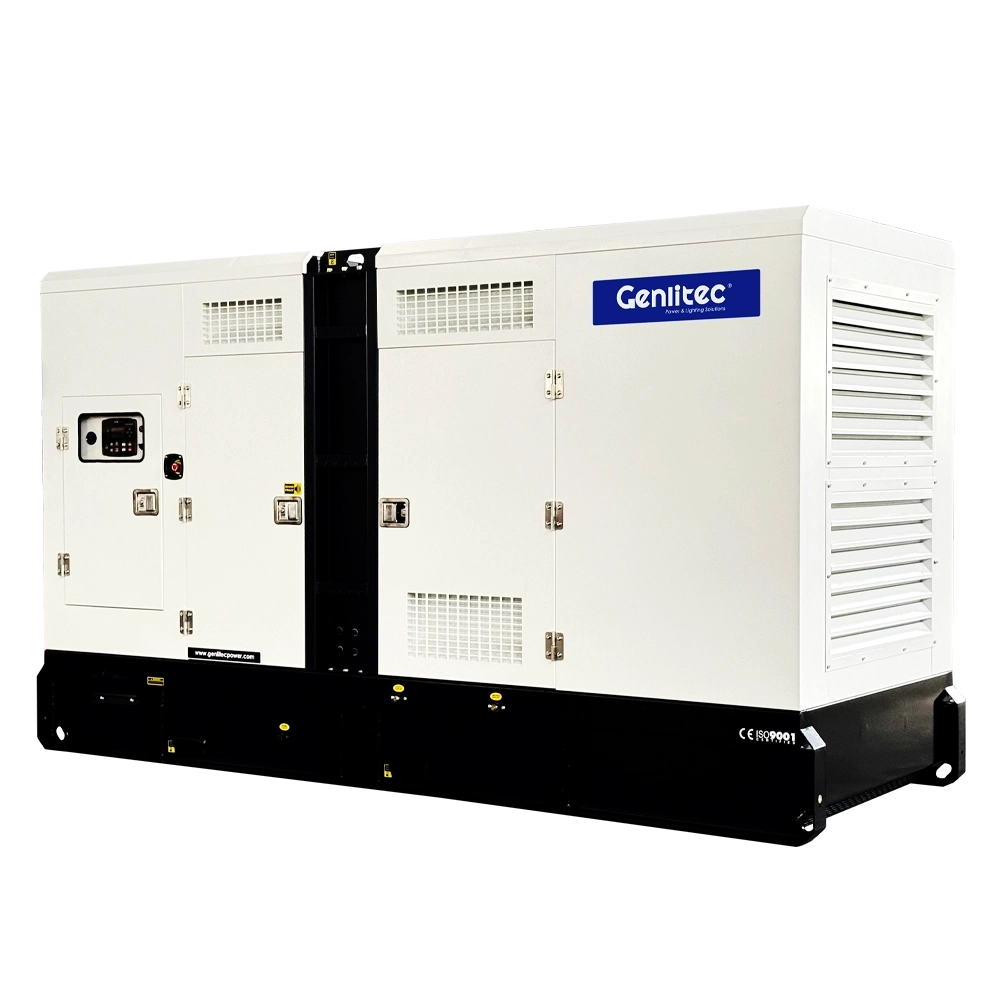

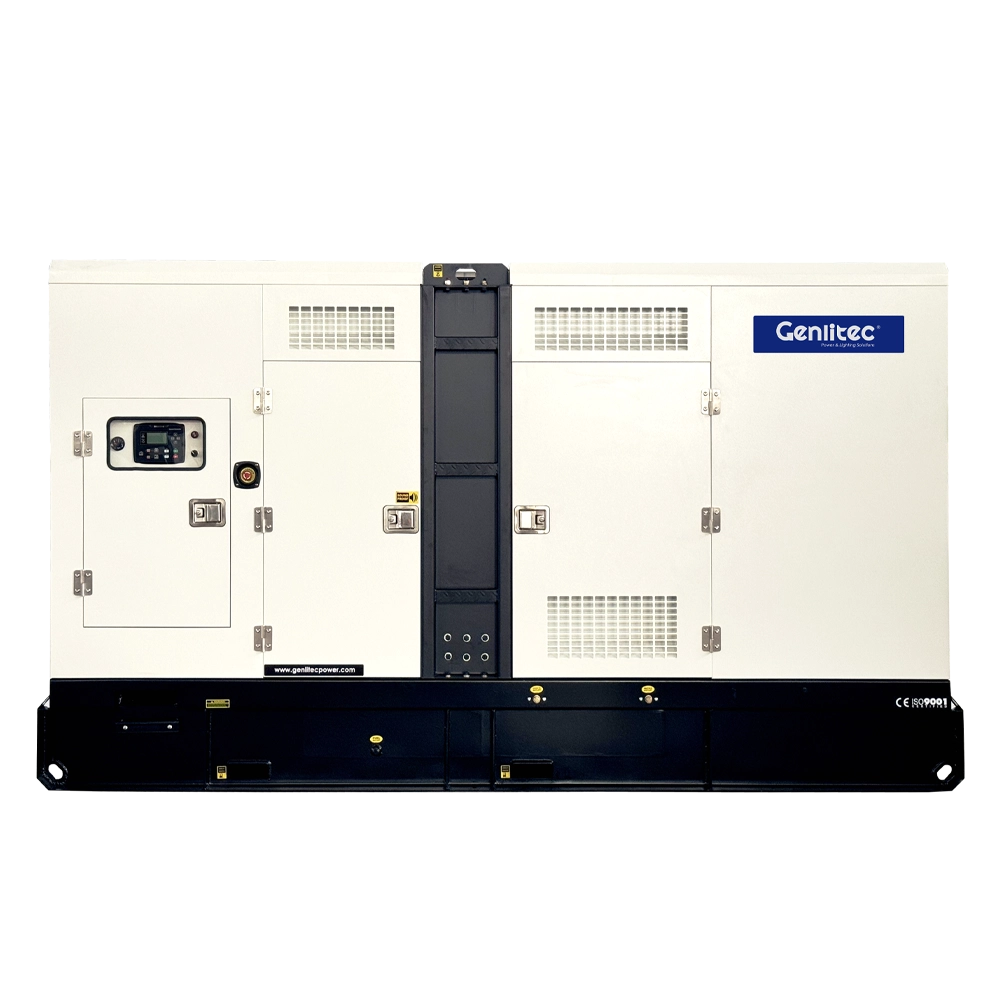

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS (for automatic start & stop when electricity power off & on)
○ Single axle trailer
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
○ Heaters
○ Remote & Monitoring System
