● GENLITEC POWER® 200KW/250KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS 6LTAA8.9-G2 brand water cooled diesel engine

○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 127/220V, 3-Phase 4-Wires, 60Hz, 1800RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

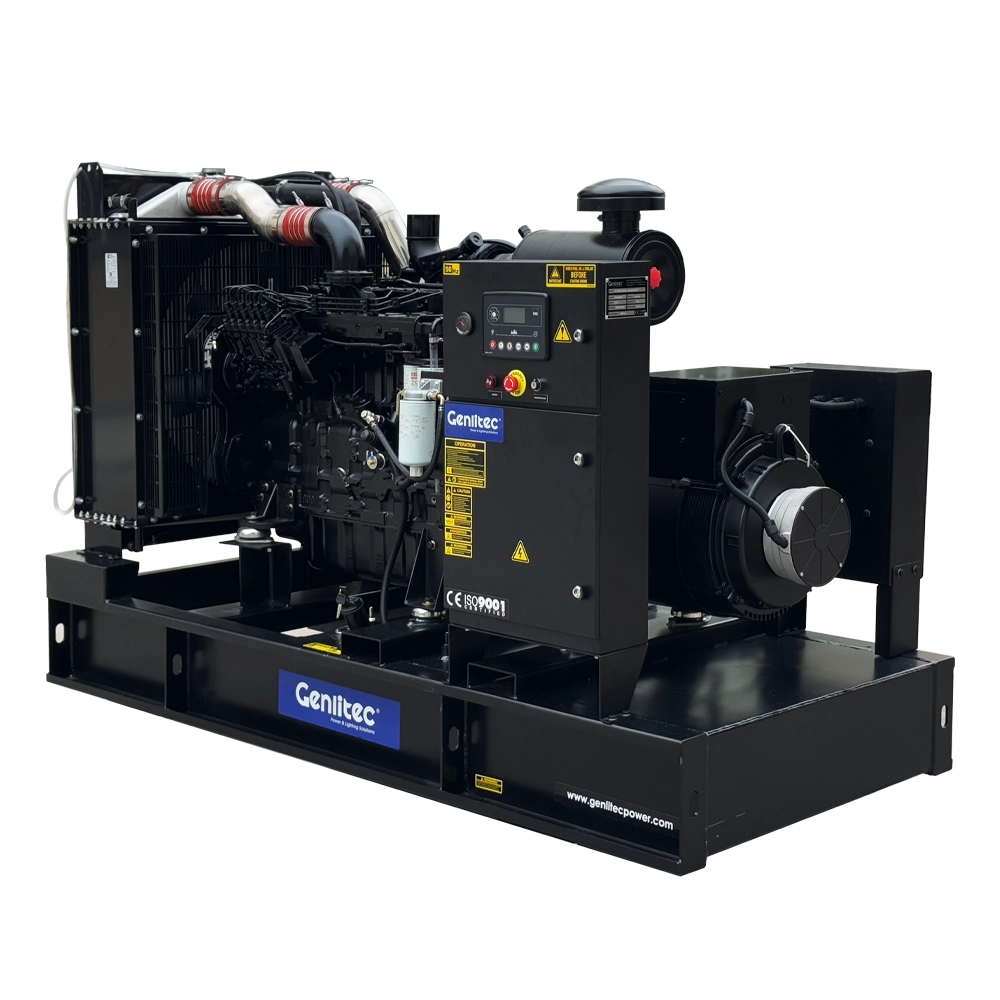

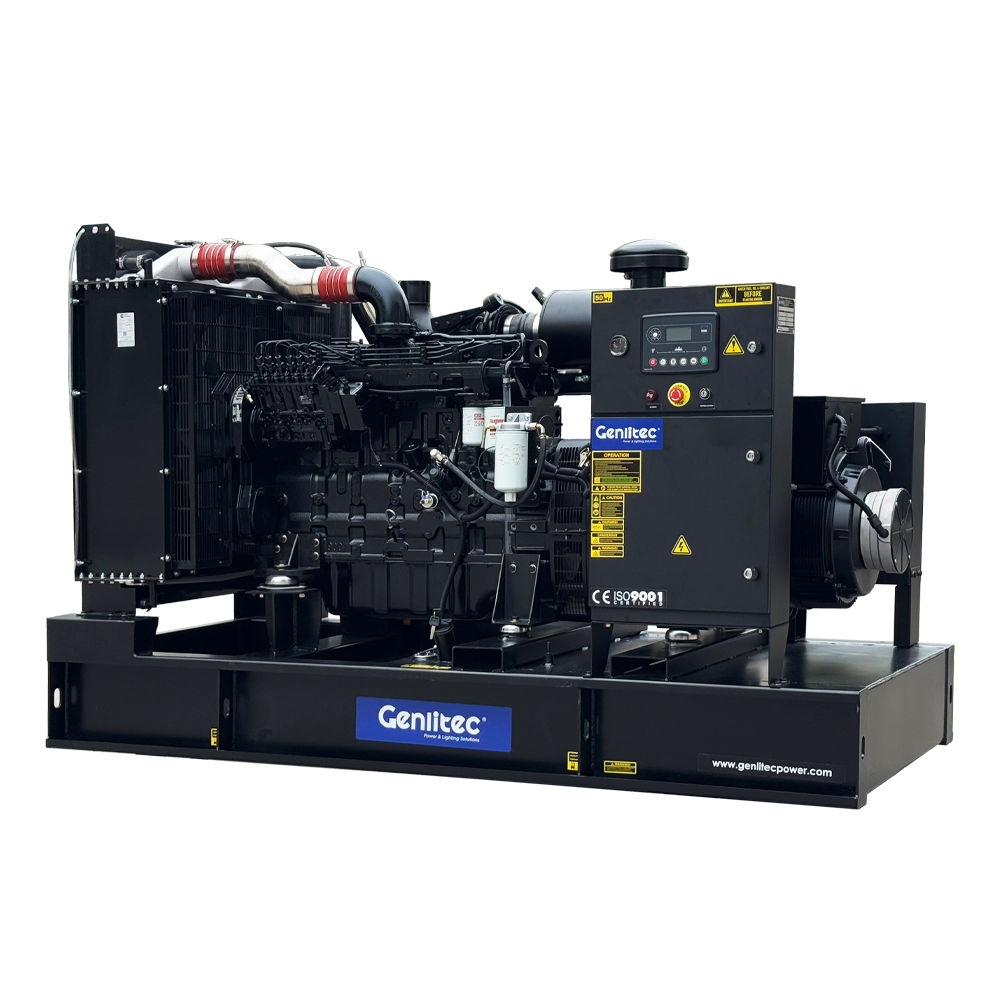

Open Type Model	GPC250D6

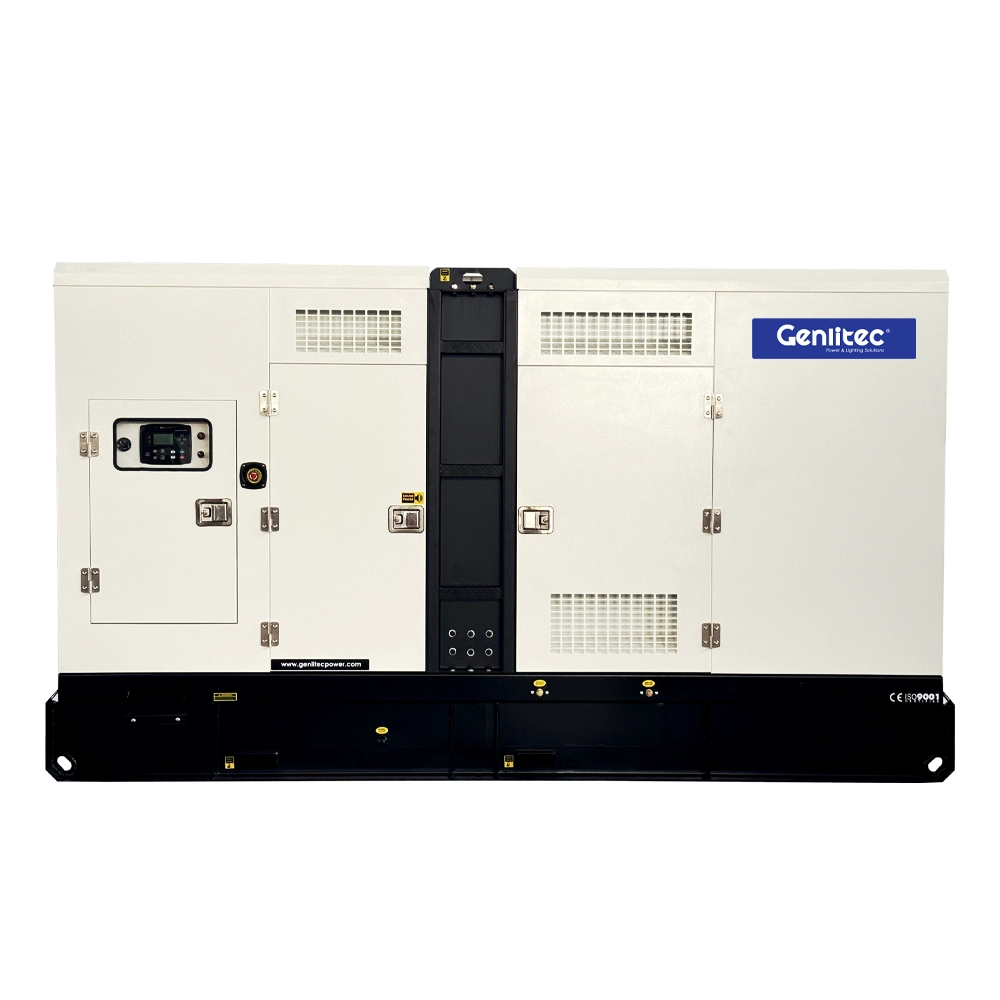

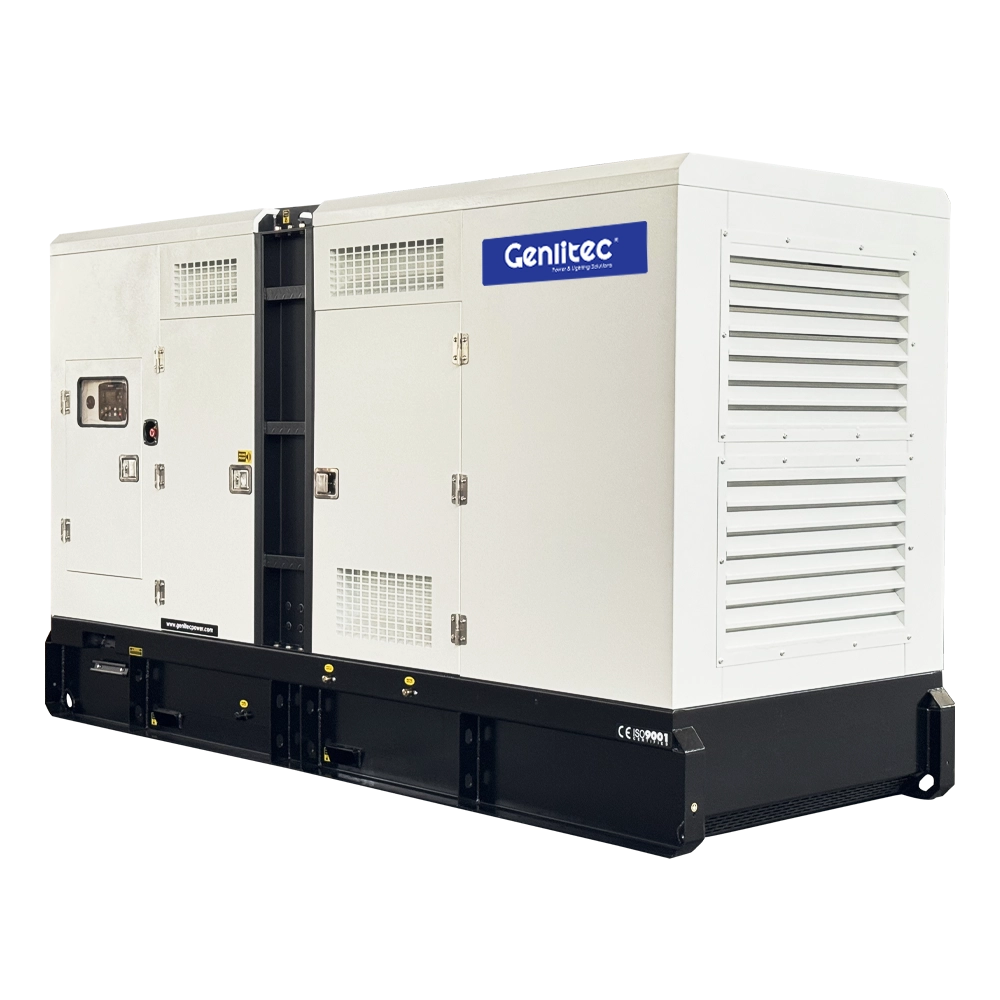

Silent Type Model	GPC250S6
Prime Power	200KW/250KVA
Standby Power	220KW/275KVA
Phase & Wire	3 Phase, 4 Wires
Power Factor	0.8
Frequency	60Hz
Voltage	110/190V, 120/208V, 127/220V, 254/440V, 277/480V

● DIESEL ENGINE

Model	CUMMINS 6LTAA8.9-G2
Cylinder Number	6
Aspiration System	Turbocharged & Air to Air Cooled
Cooling Method	Water Cooled
Governor Type	Electronic
Bore x Stroke	114 x 145 mm
Compression Ratio	16.6:1
Rated Speed	1800 RPM
Displacement	8.9L
Rated Power	235KW
Standby Power	258KW
Fuel System	Direct Injection
Oil Capacity	27.6L
Coolant Capacity	11.1L (Engine Only)
Electric Starting System	DC 24V

● FUEL CONSUMPTION

100% Prime Power	59L/H
75% Prime Power	44L/H
50% Prime Power	30L/H
25% Prime Power	17L/H

● ALTERNATOR

Number of Phase	3
Rated Power	200KW/250KVA
Frequency	60Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	6/12
Insulation Type	H Class
Ambient Temp.	40℃
IP Rating	IP23
Excitatin System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS (for automatic start & stop when electricity power off & on)

○ Single axle trailer

○ 12 hours fuel tank

○ 24 hours fuel tank

○ Power Sockets (CEE or AUS standard)

○ Heaters

○ Remote & Monitoring System
