Short Description:

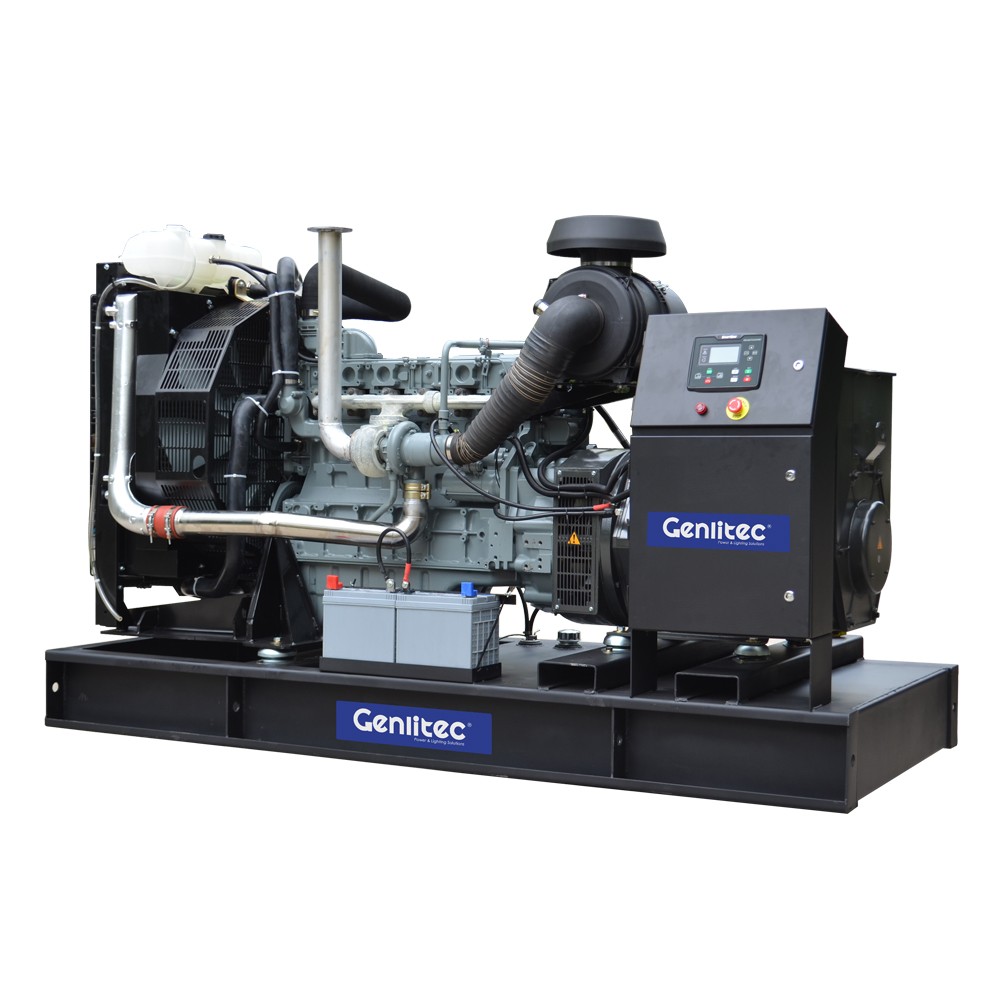

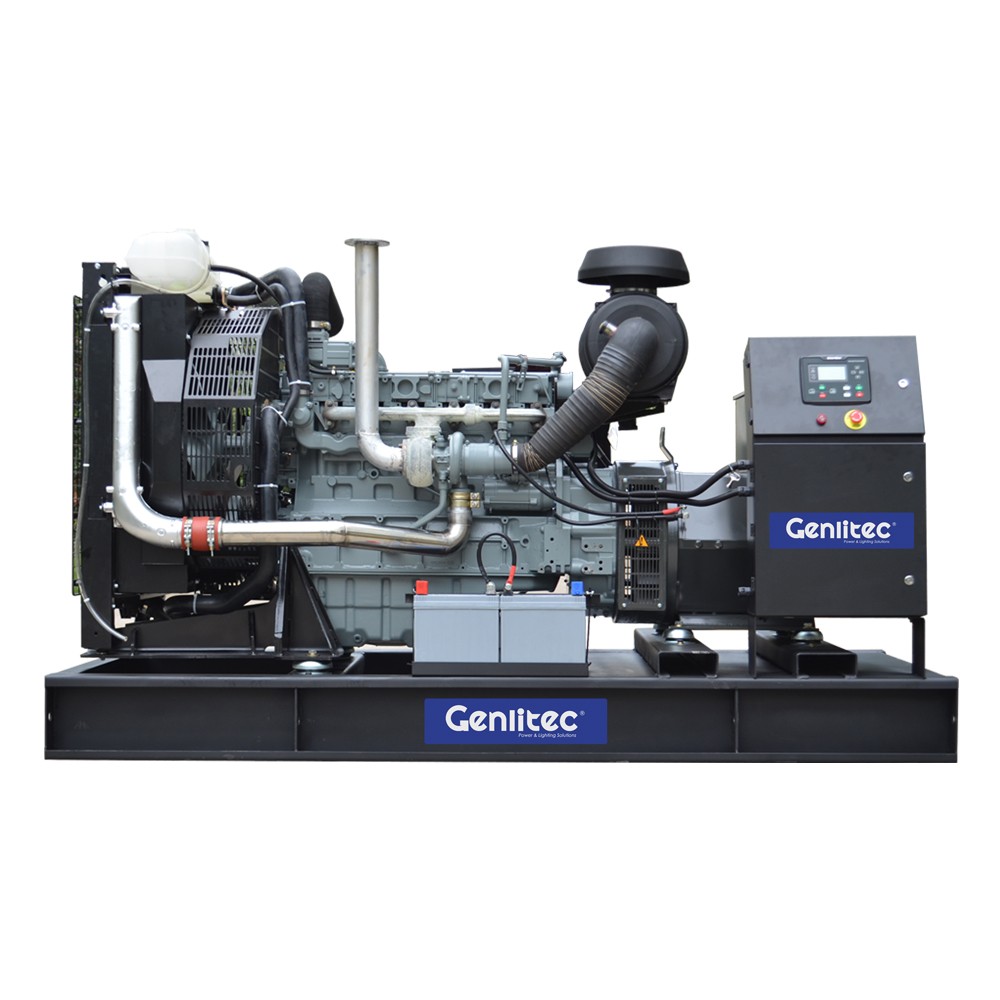

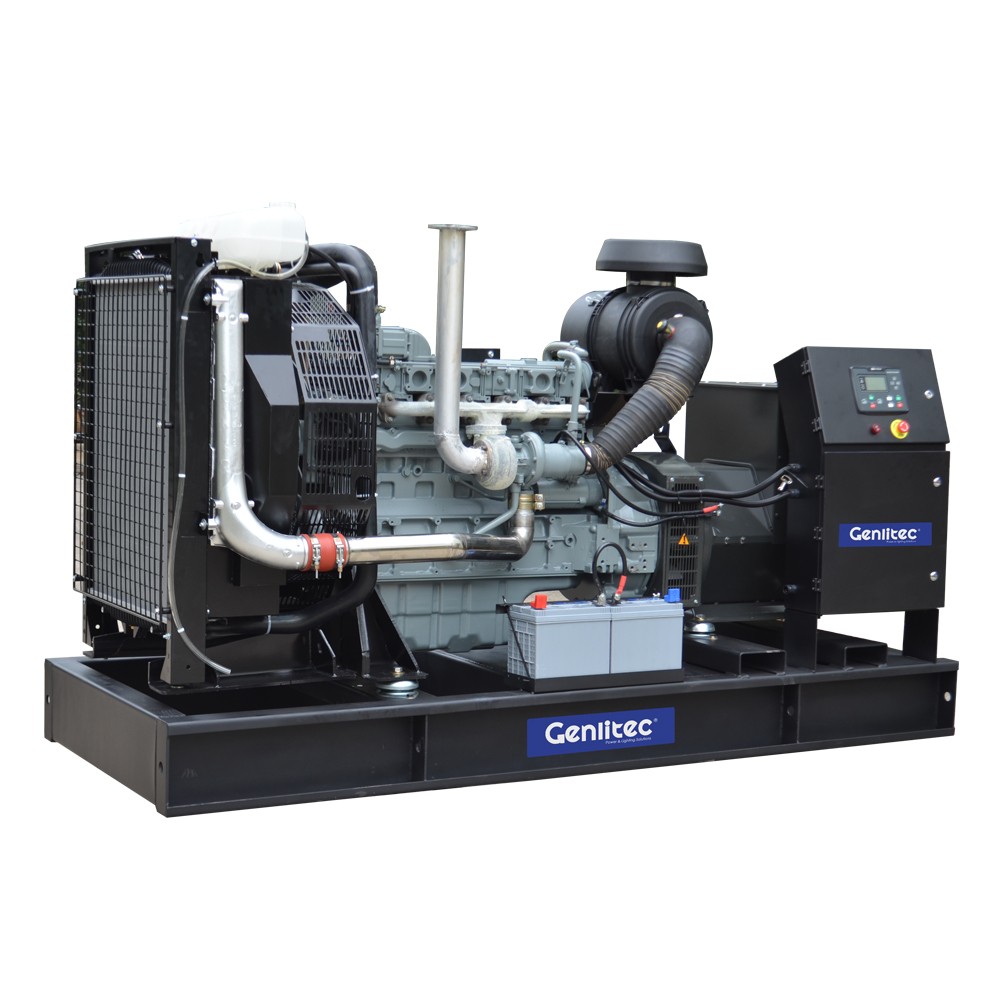

GENLITEC POWER® GPD200D6(open type), GPD200S6(silent type) powered by original DEUTZ diesel engine BF6M1013FC G2, with prime power 160KW/200KVA and standby power 176KW/220KVA....


  • Model: GPD200D6 | GPD200S6
  • Engine: DEUTZ BF6M1013FC G2
  • Prime Power: 160KW/200KVA
  • Standby Power: 176KW/220KVA
  • Voltage: 110/190V | 120/208V | 127/220V | 254/440V

Product Details

Product Tags

160KW/200KVA DEUTZ DIESEL GENERATOR SET SPECIFICATIONS

  • Standby Power: 176KW/220KVA
  • Prime Power: 160KW/200KVA
  • Frequency: 60Hz
  • Speed: 1800 RPM
  • Voltage: 110/190V (120/208V, 127/220V or 254/440V available according to different countries)
  • Fuel Tank Capacity: 8~10 hours continuous running


ENGINE

  • Powered by: DEUTZ
  • Engine Model: BF6M1013EC G2


ALTERNATOR

  • Alternator Model: GENLITEC S274G160 (STAMFORD & LEROY SOMER alternators for options)
  • High Efficiency
  • IP23 Protection


CONTROL PANEL

  • Emergency stop button
  • Main circuit breaker
  • Float baterry charger
  • Manual/Autostart control panel
  • Fuel level meter
  • Controller power switch
  • Alarm buzzer
  • DEIF digital controller (SMARTGEN, DEEPSEA & COMAP controllers for options)

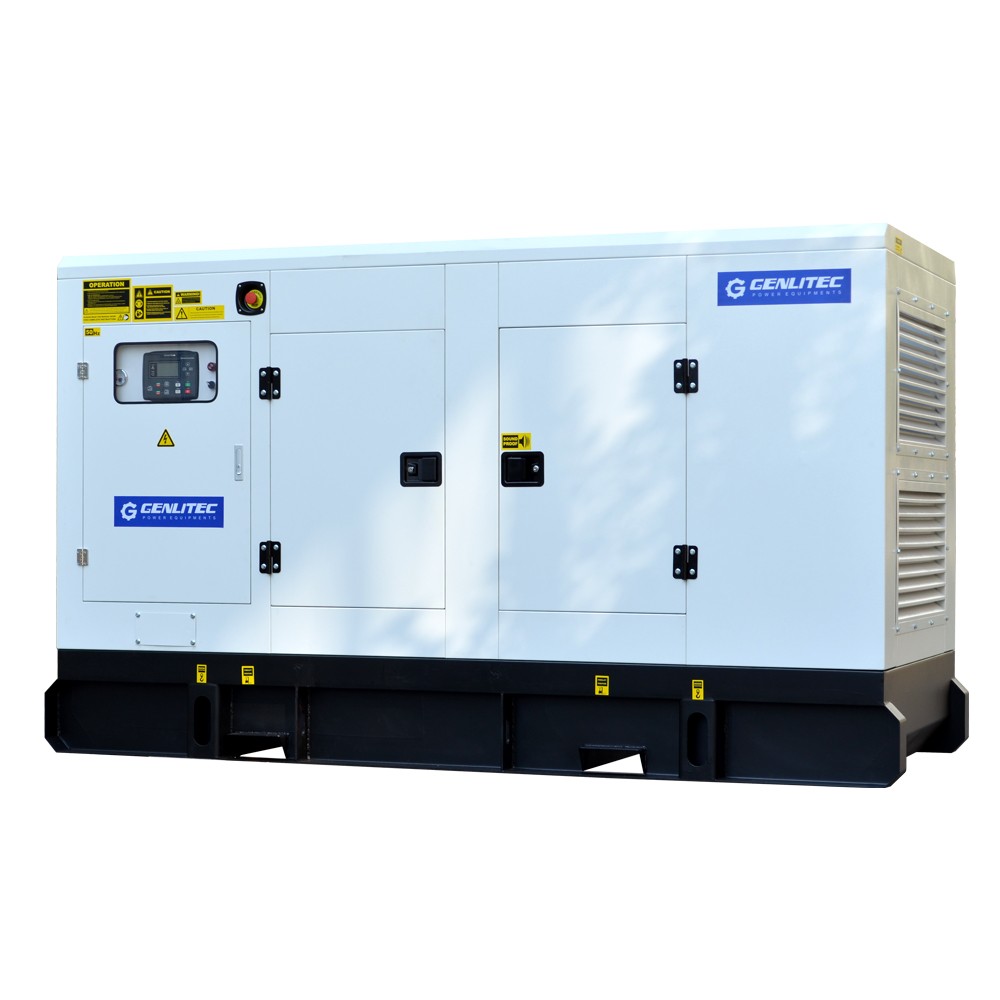

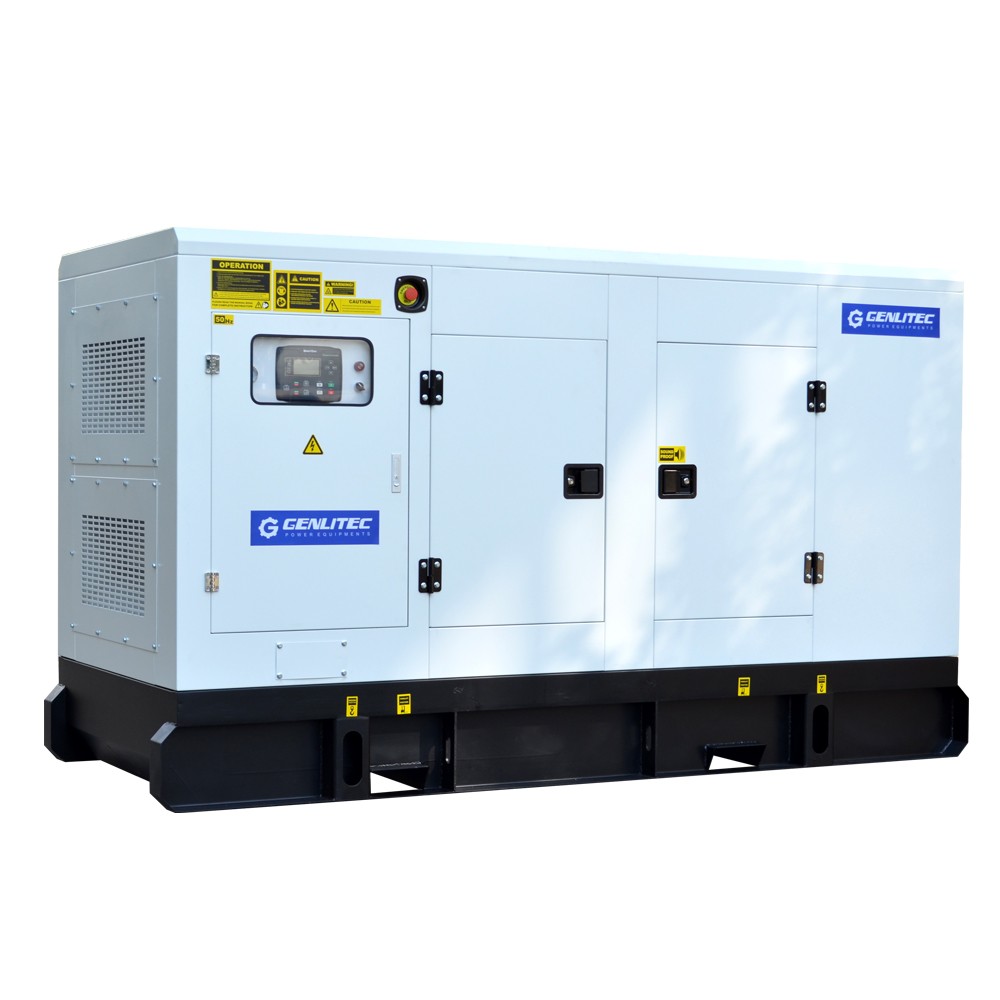

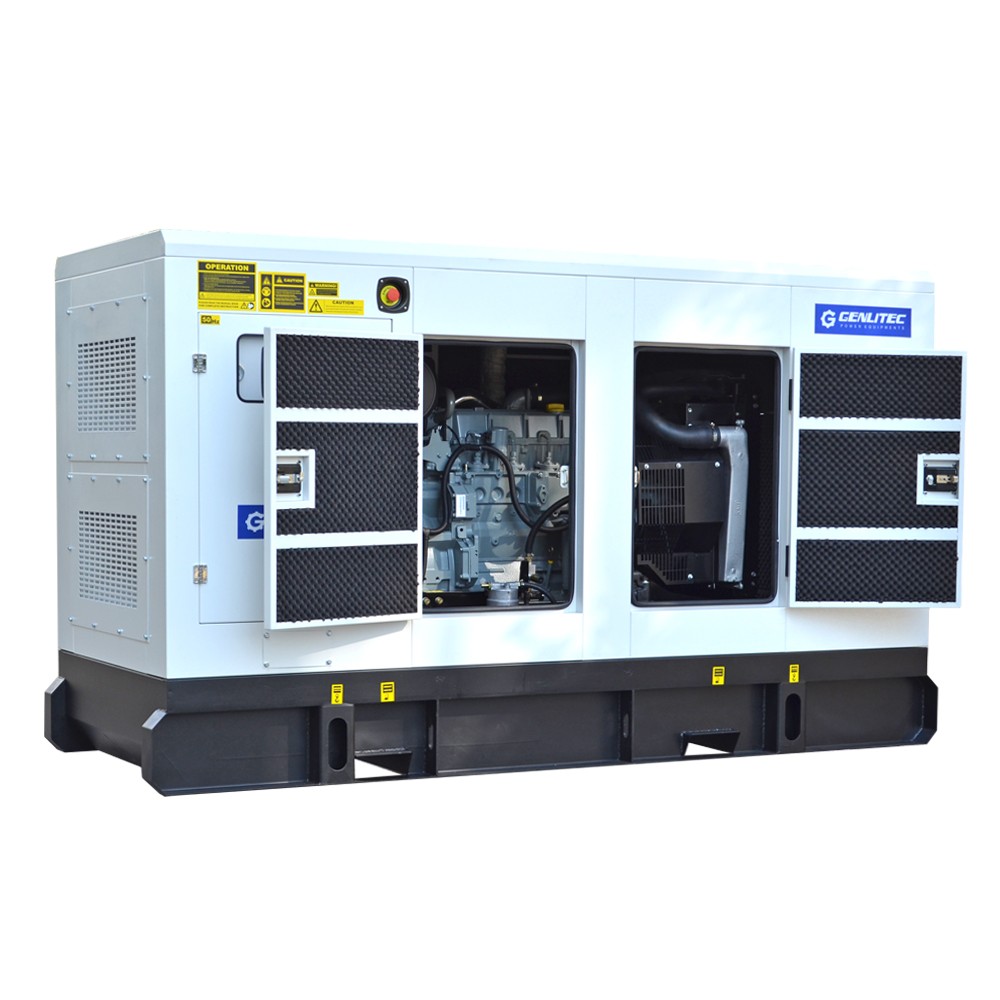

SOUND ATTENUATED ENCLOSURE

  • Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
  • Highly Corrosion Resistant Construction


WARRANTY

  • 12 months or 1000 working hours, whichever comes first


OPTIONS

  • ATS (for automatic start & stop when electricity power off & on)
  • Single axle trailer
  • 12 hours fuel tank
  • 24 hours fuel tank
  • Power Sockets (CEE or AUS standard)
