60KW/75KVA SDEC (4ZTAA4.1-G31) Diesel Generator-50Hz
● GENLITEC POWER® 60KW/75KVA SDEC DIESEL GENERATOR SET FEATURES
○ Brand new original SDEC 4ZTAA4.1-G31 brand water cooled diesel engine
○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

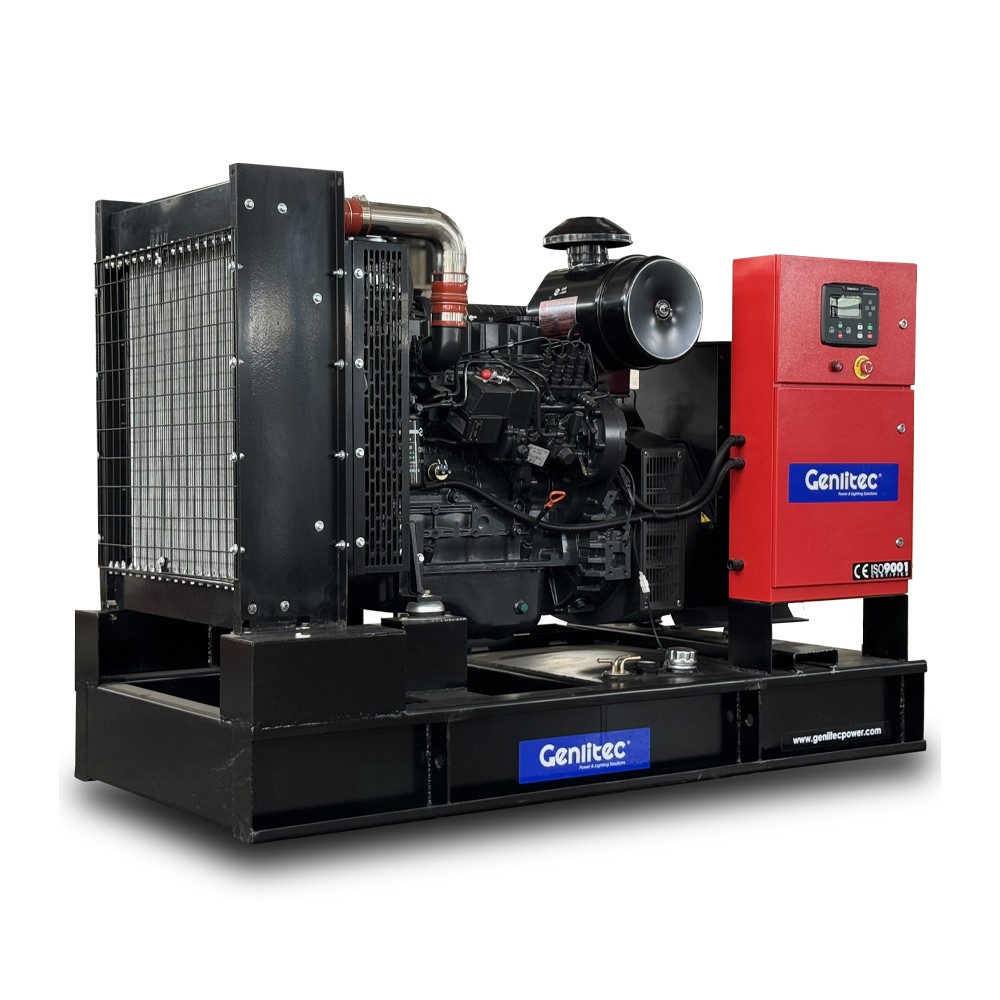

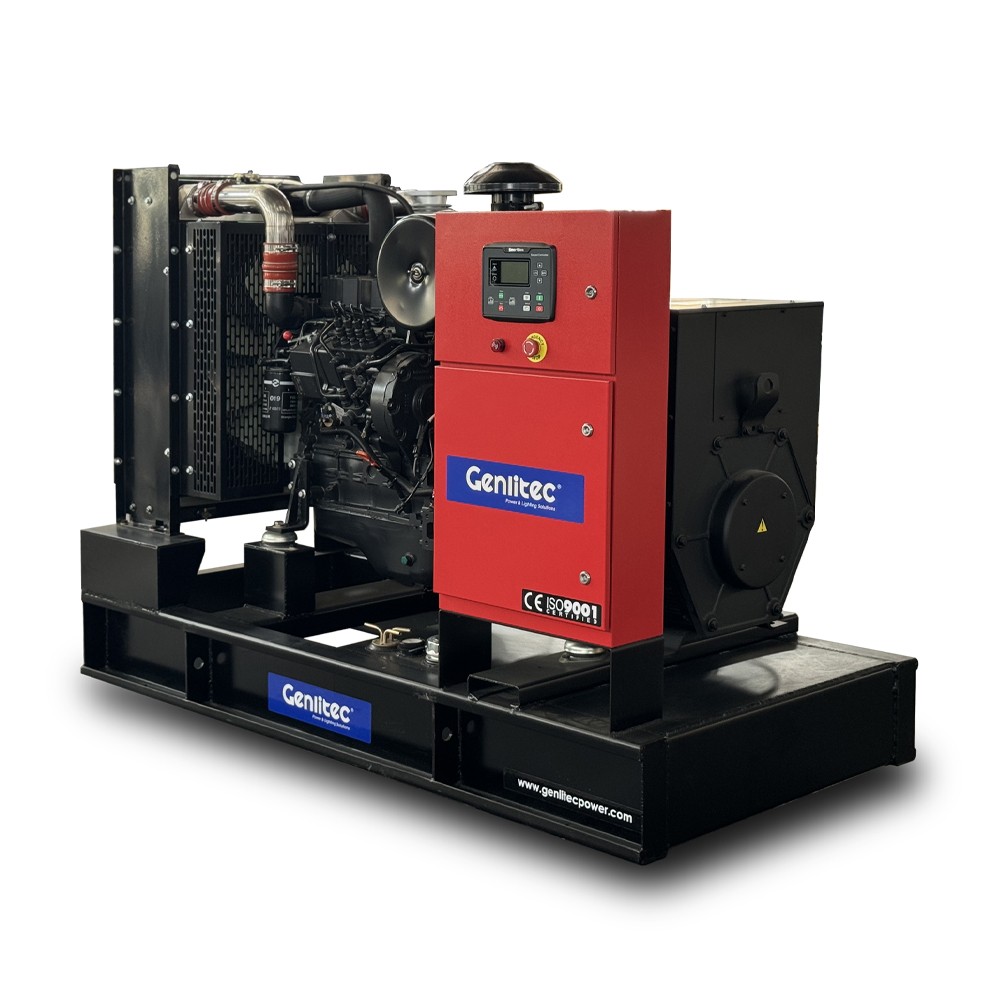

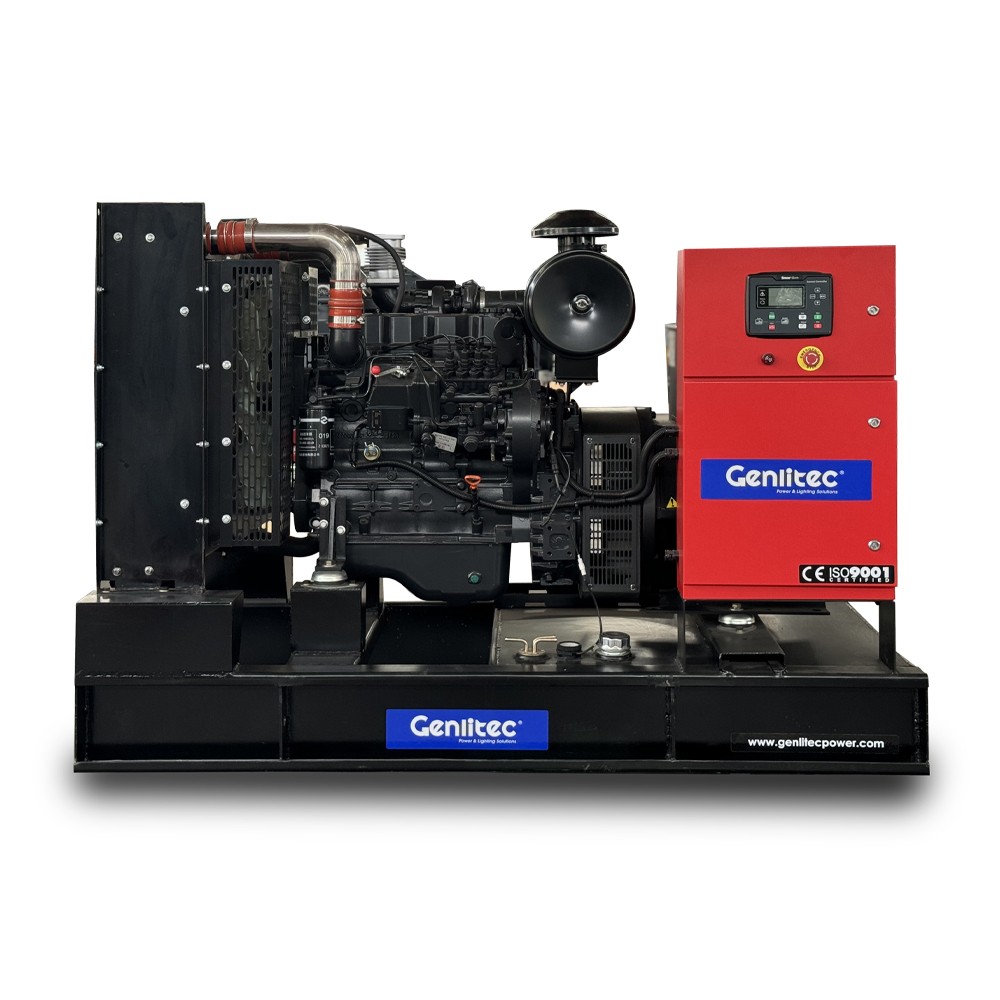

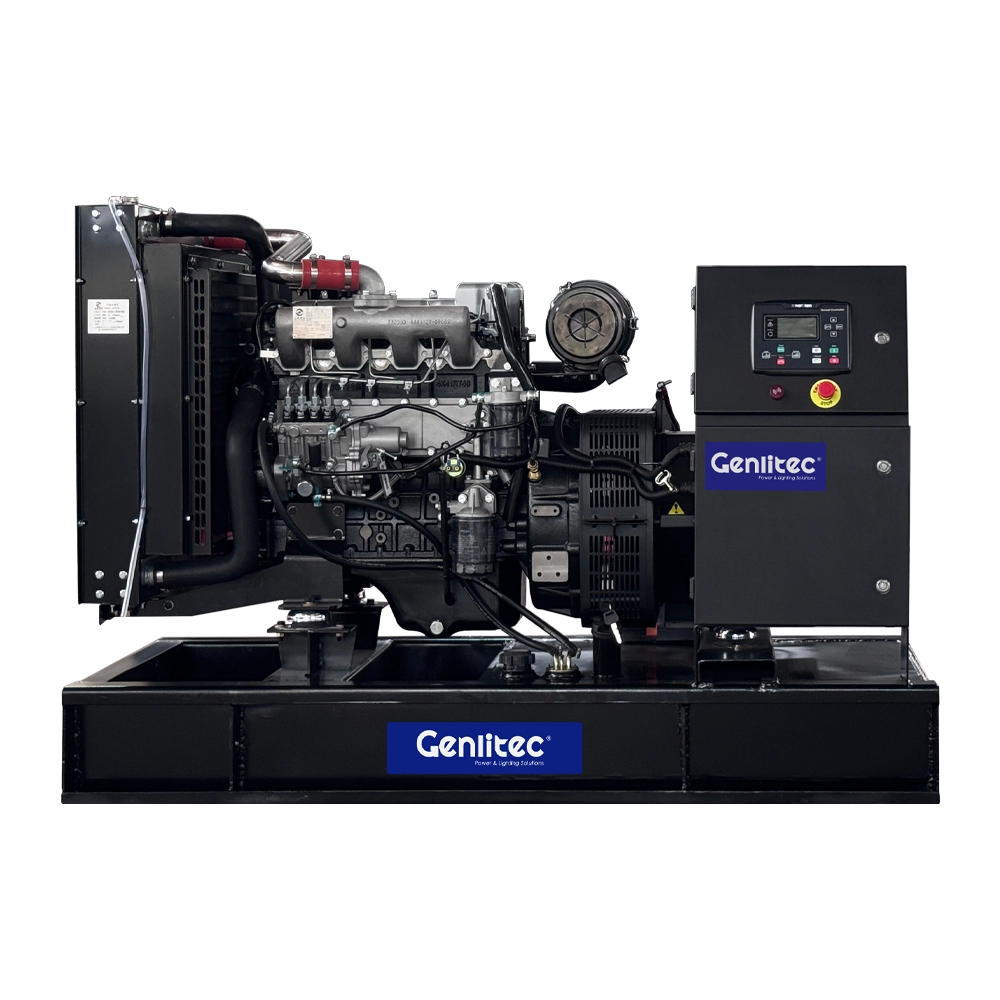

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 12V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system
● GENERATOR SET

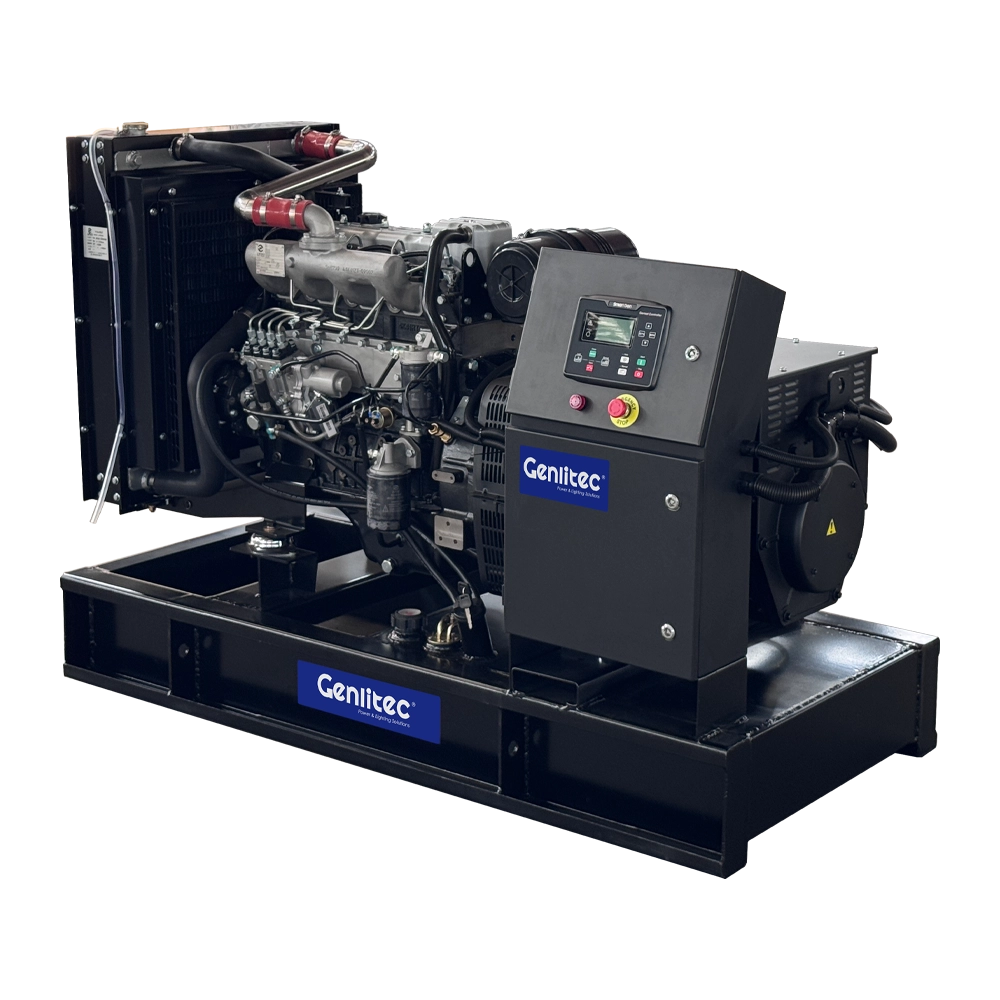

| Open Type Model | GSC75D5 |
| Silent Type Model | GSC75S5 |
| Prime Power | 60KW/75KVA |
| Standby Power | 66KW/83KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/230V, 230/400V, 240/415V |
| Fuel Tank Capacity | 115L |
● DIESEL ENGINE
| Engine Model | SDEC 4ZTAA4.1-G31 |
| Cylinder Number | 4 |
| Aspiration System | Turbocharged |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 105 x 118 mm |
| Compression Ratio | 18:1 |
| Rated Speed | 1500 RPM |
| Displacement | 4.1L |
| Rated Power | 74KW |
| Standby Power | 81KW |
| Fuel System | Direct Injection |
| Oil Capacity | 10L |
| Coolant Capacity | 4.1L (Engine Only) |
| Electric Starting System | DC 12V |
● FUEL CONSUMPTION
| 100% Prime Load | 14.98L/H |
| 75% Prime Load | 11.24L/H |
| 50% Prime Load | 7.8L/H |
| 25% Prime Load | 4.3L/H |
● ALTERNATOR
| Number of Phase | 3 |
| Rated Power | 60KW/75KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

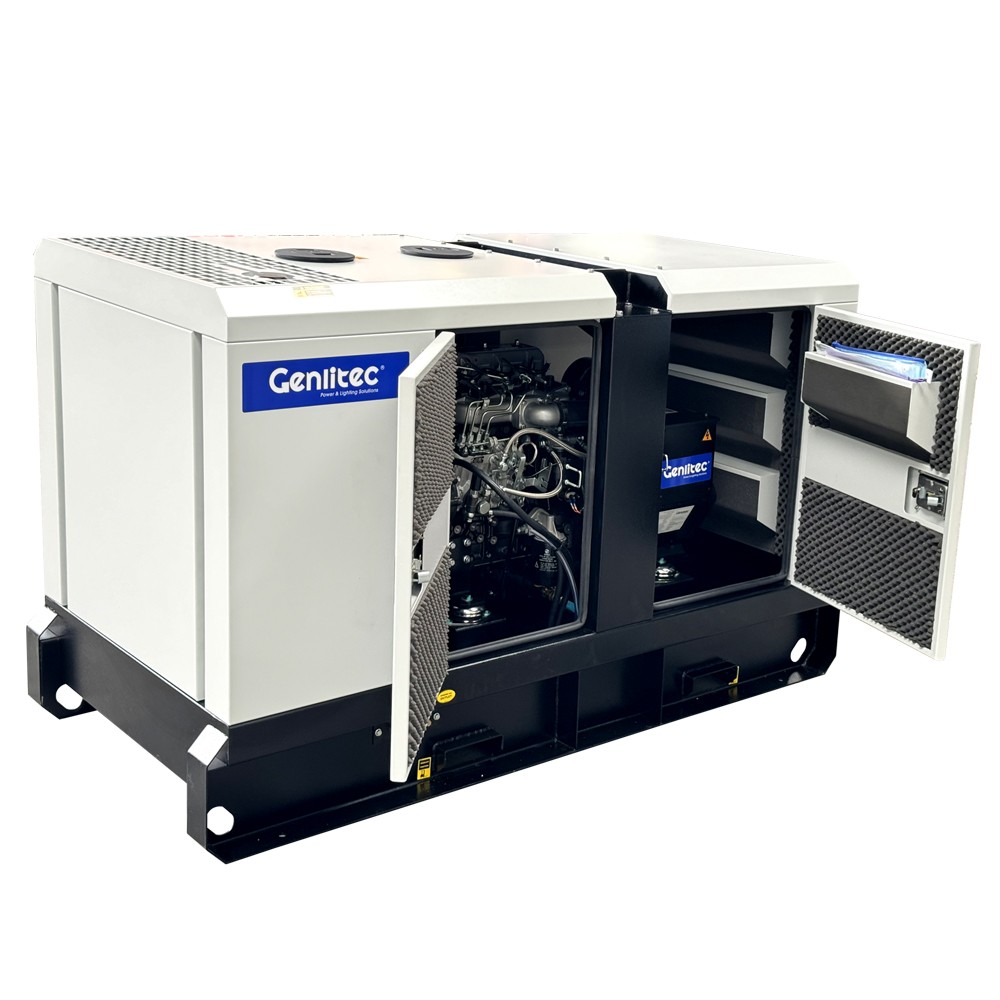

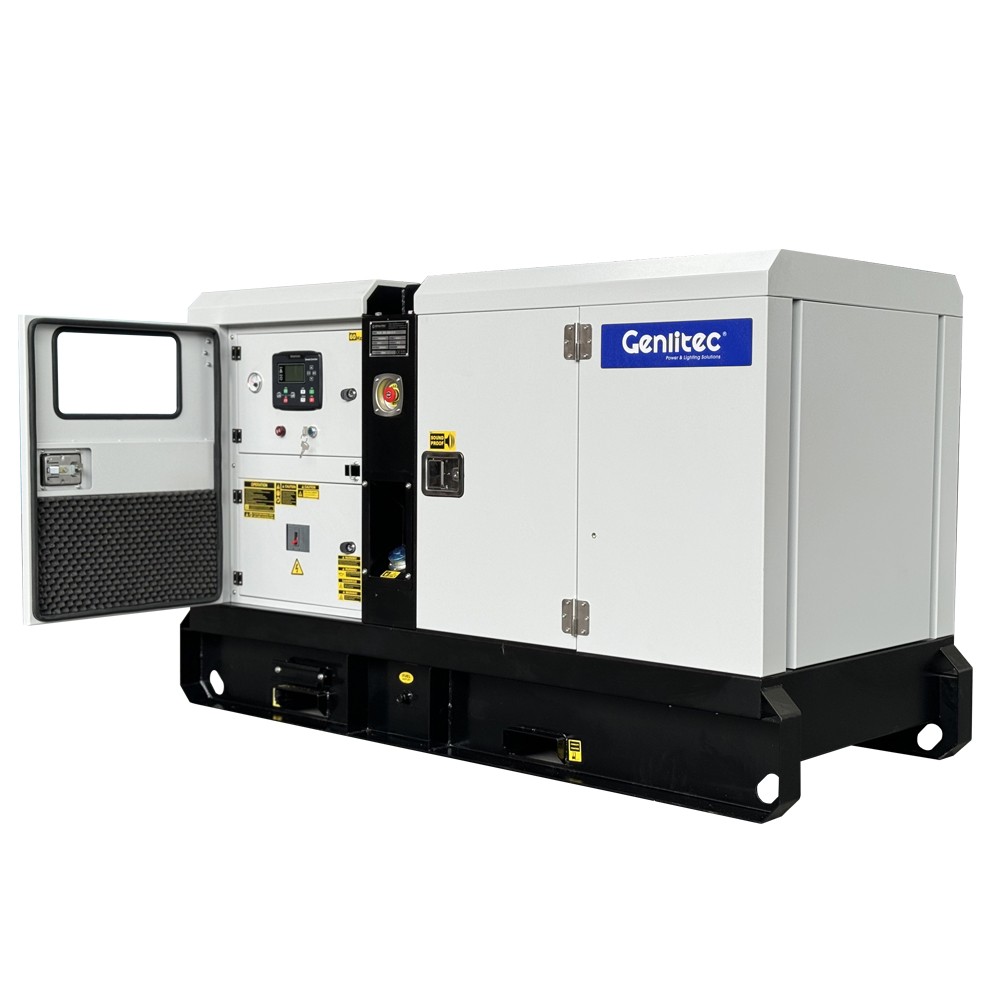

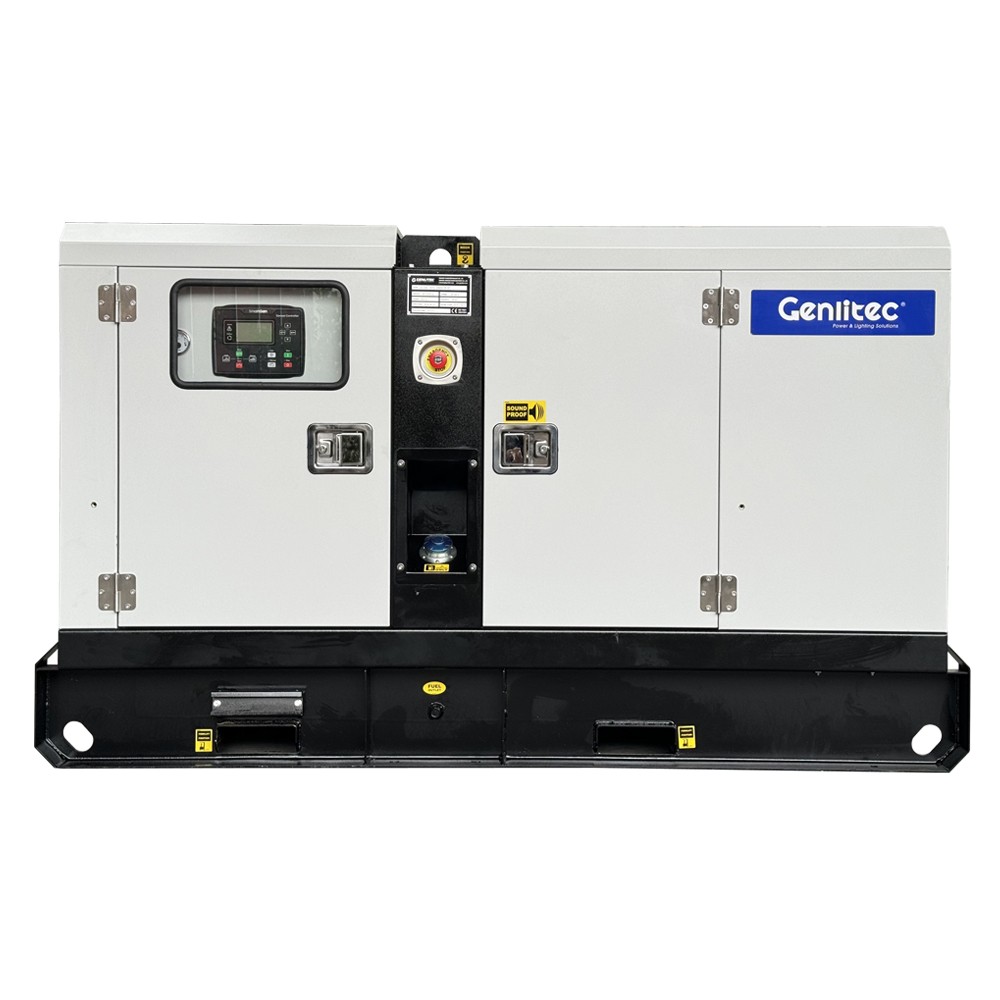

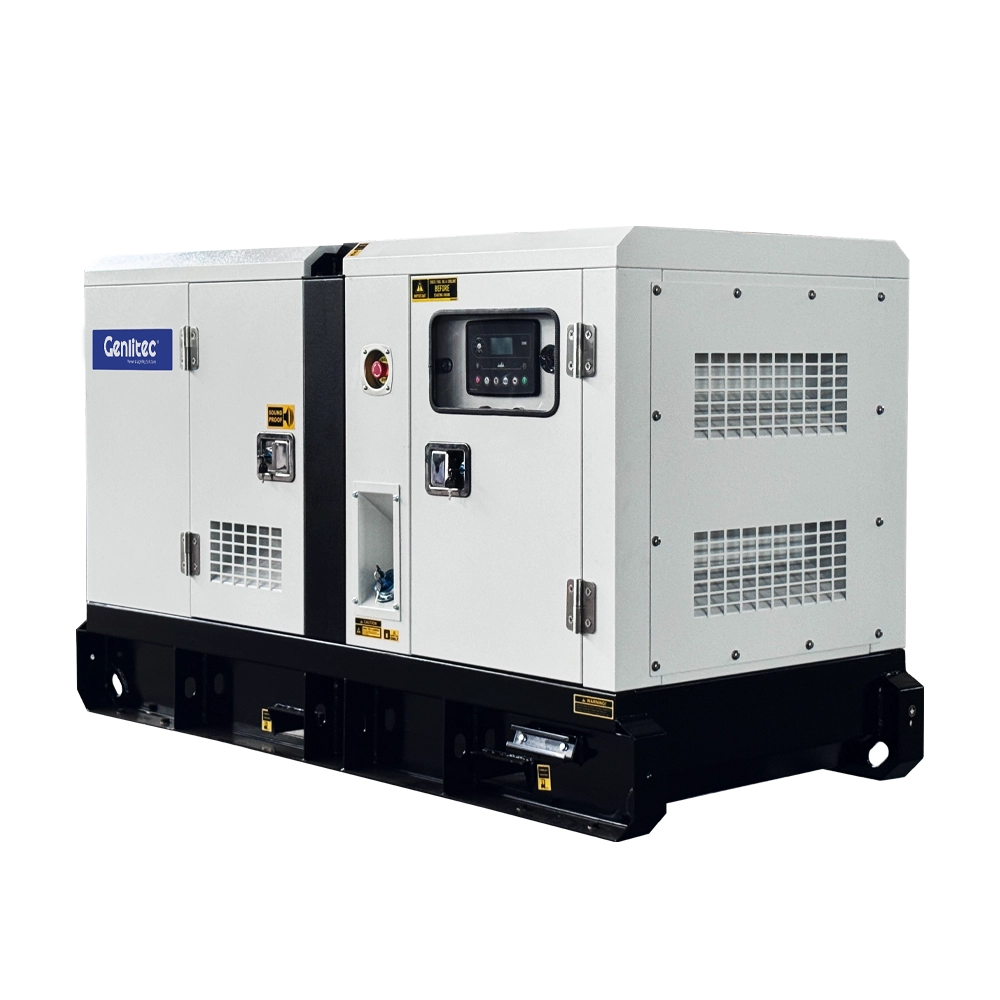

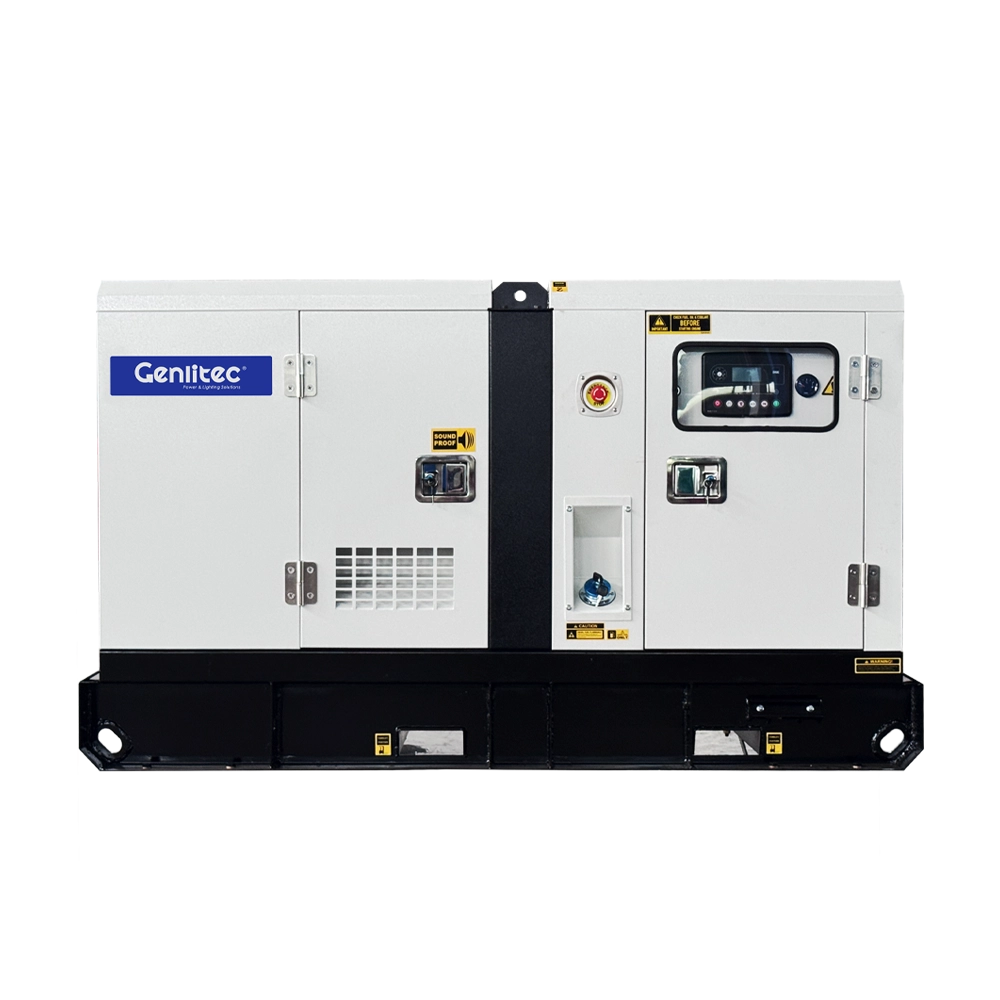

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS (for automatic start & stop when electricity power off & on)
○ Single axle trailer
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
