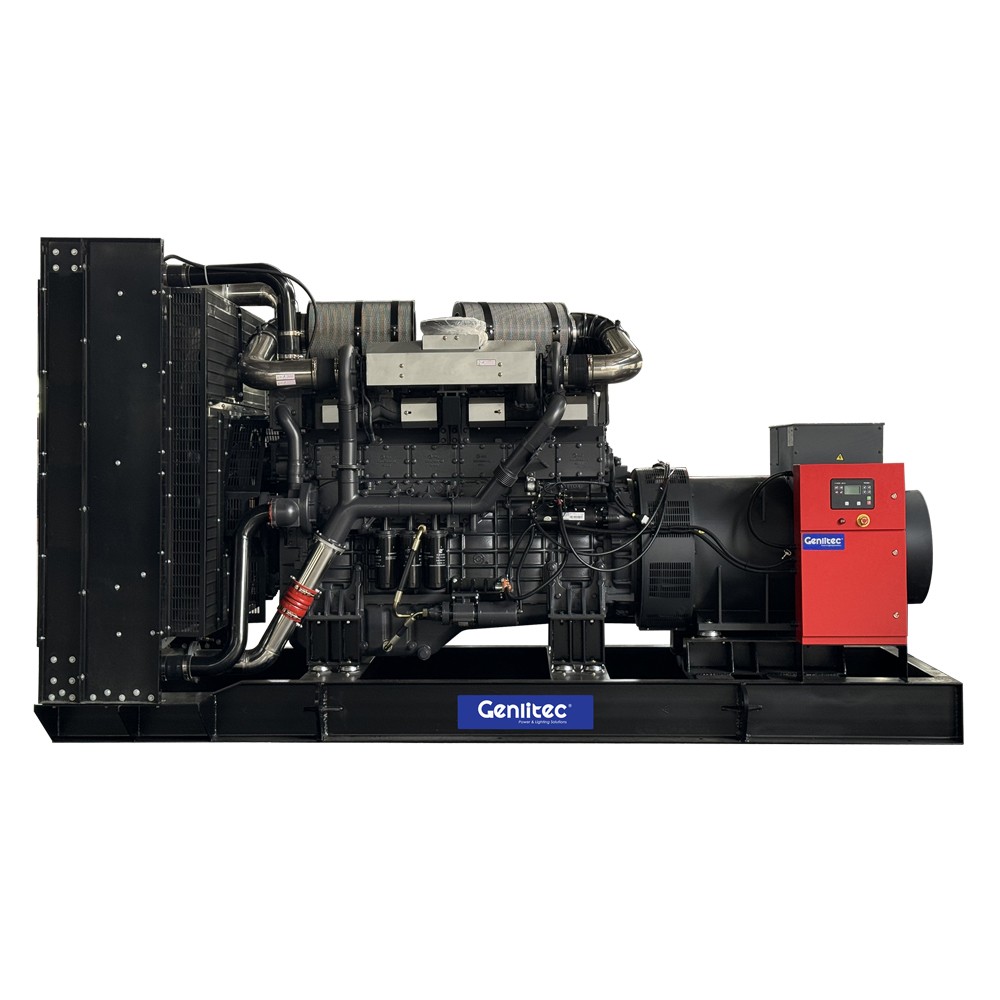

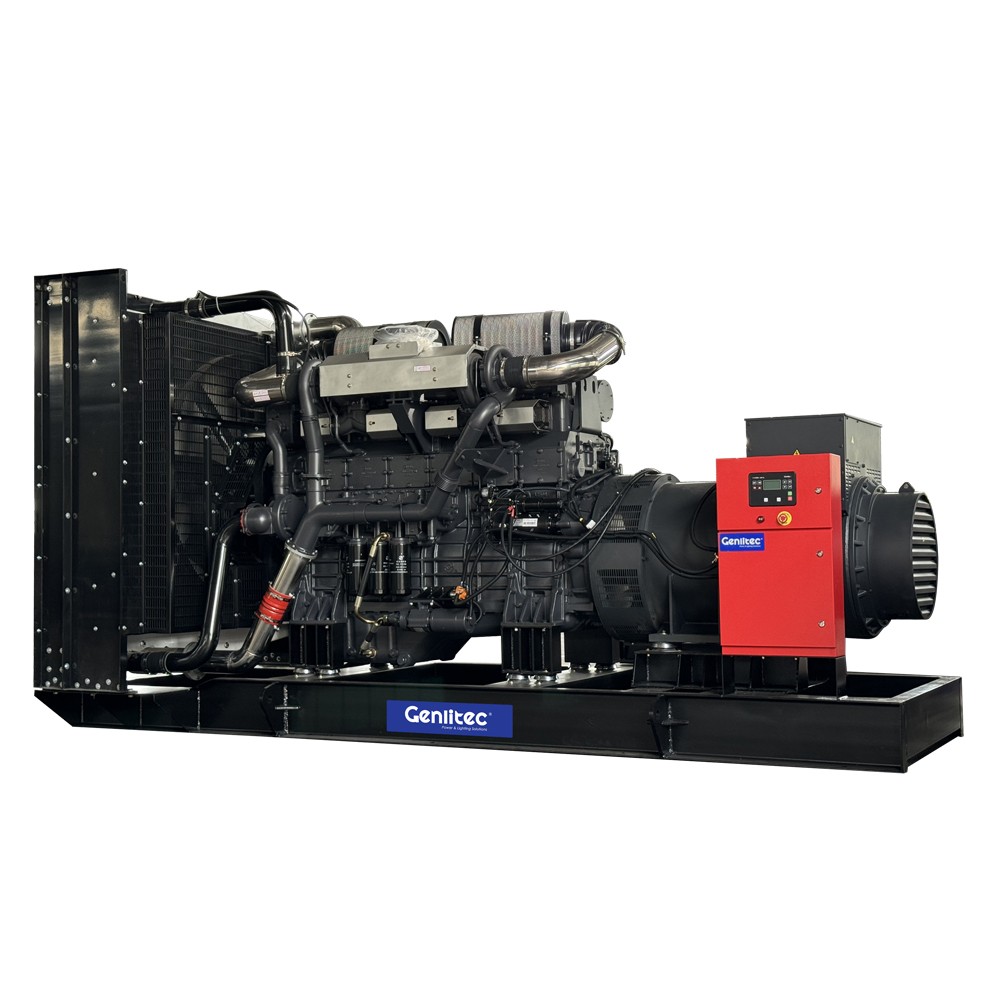

● GENLITEC POWER® 1000KW/1250KVA SDEC DIESEL GENERATOR SET FEATURES

○ Brand new original SDEC 6WTAA35-G311 brand water cooled diesel engine

○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

Open Type Model	GSC1250D5
Silent Type Model	GSC1250S5
Prime Power	1000KW/1250KVA
Standby Power	1100KW/1375KVA
Phase & Wire	3 Phase, 4 Wires
Power Factor	0.8
Frequency	50Hz
Rated Voltage	220/230V, 230/400V, 240/415V
Fuel Tank Capacity	1880L

● DIESEL ENGINE

Engine Model	SDEC 6WTAA35-G311
Cylinder Number	6
Aspiration System	Turbocharged, Air to Air Intercooled
Cooling Method	Water Cooled
Governor Type	ECU
Bore x Stroke	186 x 215 mm
Compression Ratio	15:1
Rated Speed	1500 RPM
Displacement	35.1L
Rated Power	1118KW
Standby Power	1230KW
Fuel System	Direct Injection
Oil Capacity	10L
Coolant Capacity	4.1L (Engine Only)
Electric Starting System	DC 12V

● FUEL CONSUMPTION

100% Prime Load	286L/H
75% Prime Load	209.6L/H
50% Prime Load	138.7L/H
25% Prime Load	77.5L/H

● ALTERNATOR

Number of Phase	3
Rated Power	1000KW/1250KVA
Frequency	50Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	6/12
Insulation Class	H
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

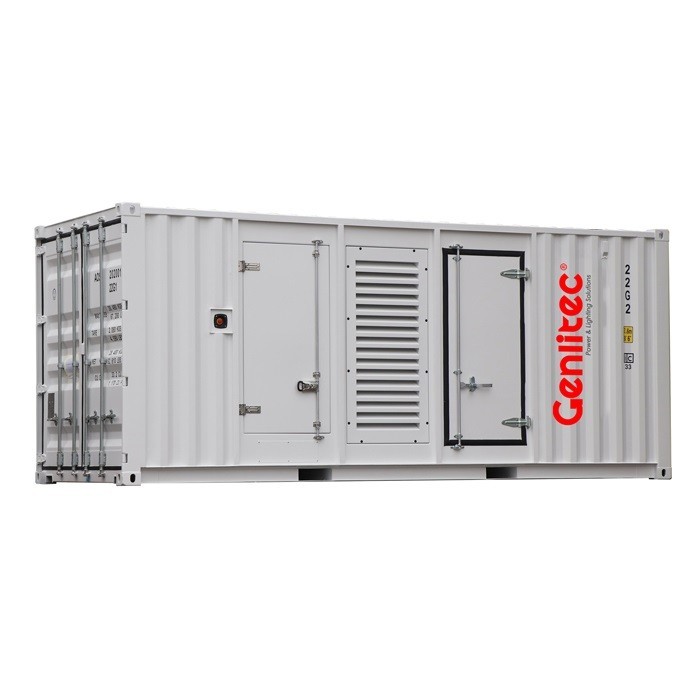

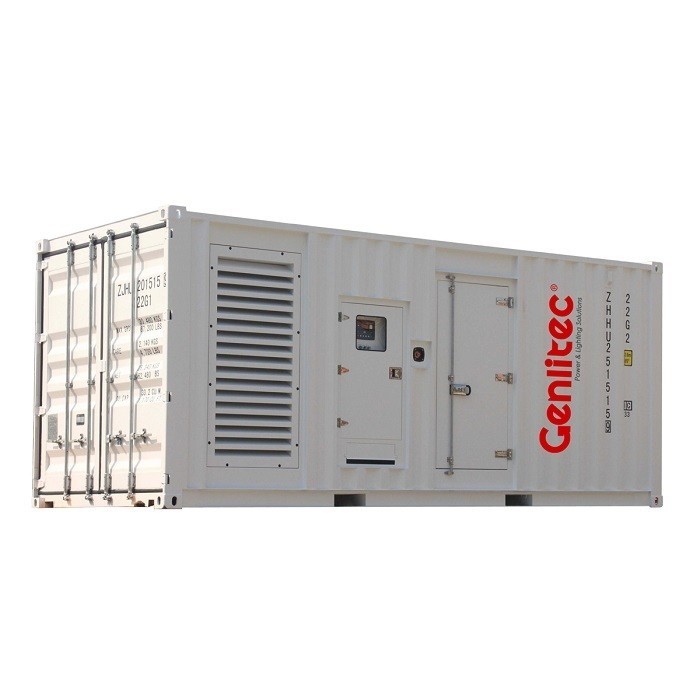

● GENLITEC POWER® SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

○ Brand New ISO 20'' Containerized Enclosure with CSC Certification

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS (for automatic start & stop when electricity power off & on)

○ Synchronization Panel

○ Heaters

○ Remote & Monitoring System
