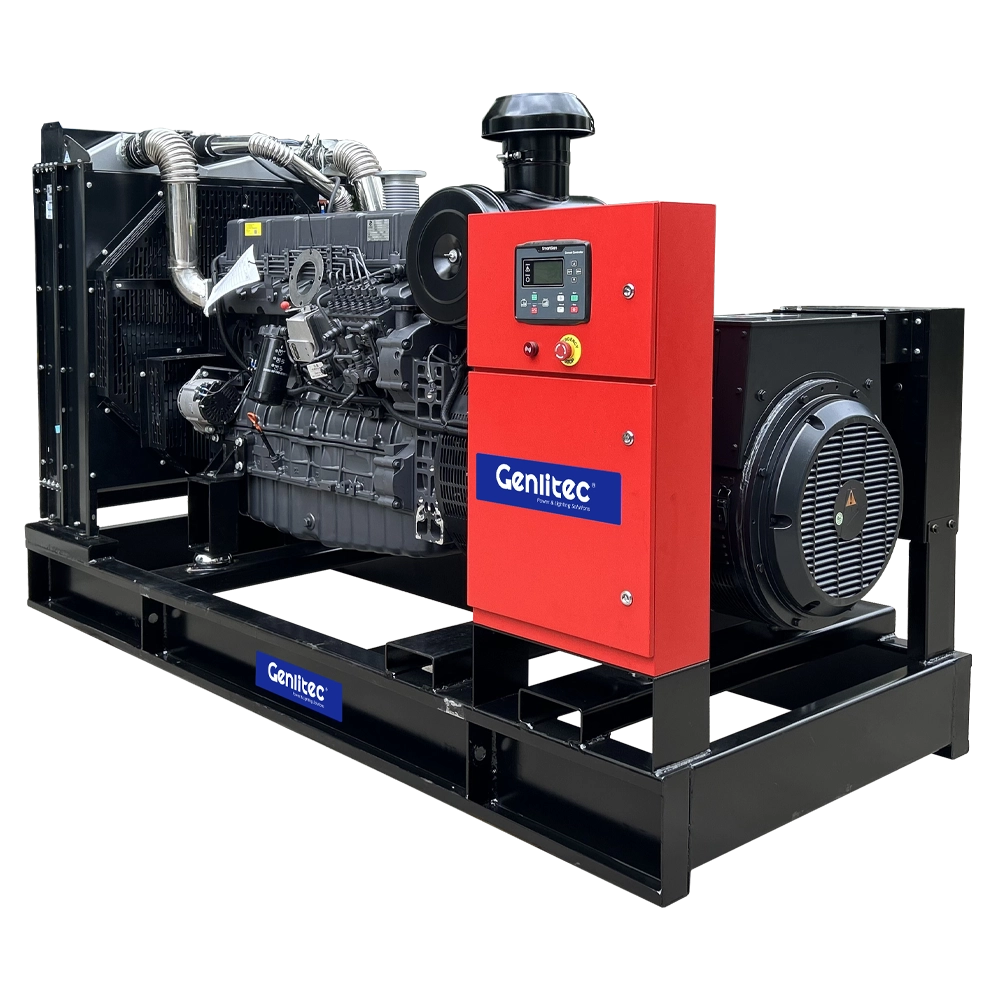

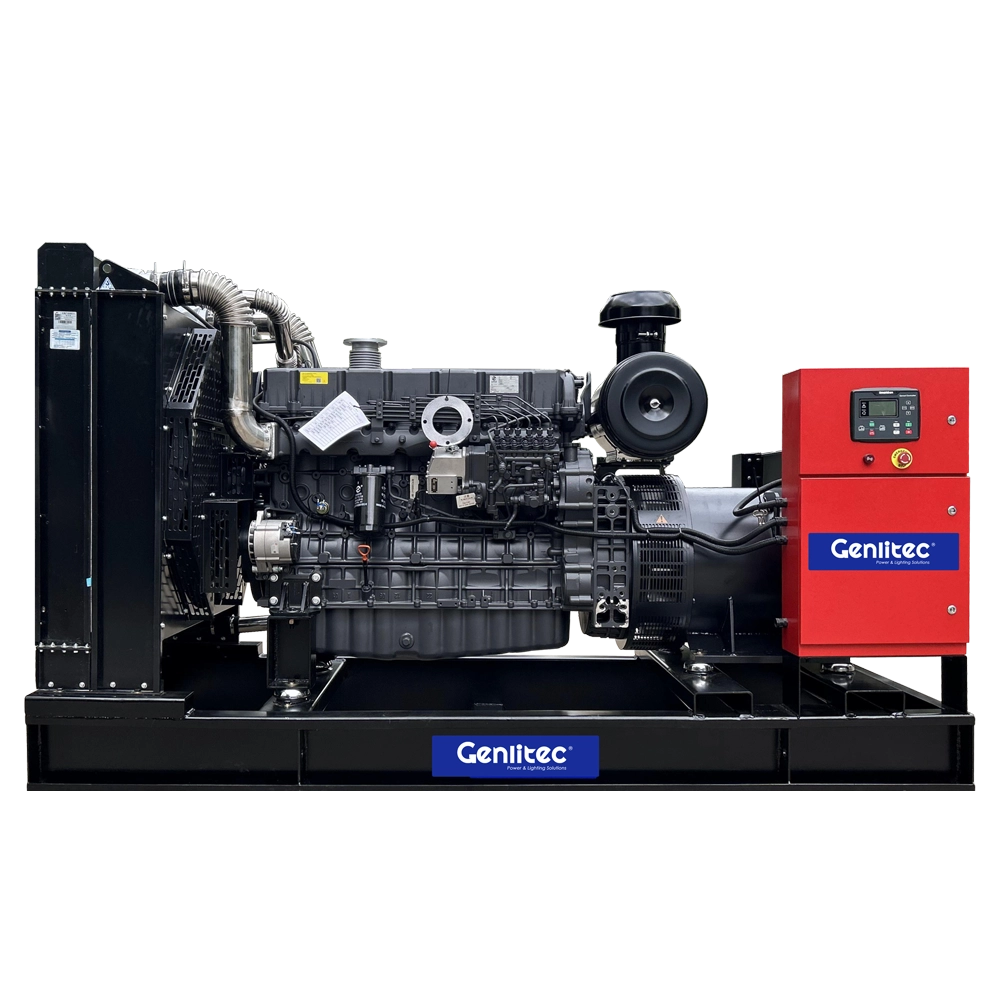

● GENLITEC POWER® 300KW/375KVA SDEC DIESEL GENERATOR SET FEATURES

○ Brand new original SDEC SC15G500D2 brand water cooled diesel engine

○ STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 230/400V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

Open Type Model	GSC375D5
Silent Type Model	GSC375S5
Frequency	50Hz
Phase & Wires	3 Phase, 4 Wires
Power Factor	0.8
Prime Power	300KW/375KVA
Standby Power	330KW/413KVA
Rated Voltage	380~415V
Fuel Tank Capacity	650L

● DIESEL ENGINE

Engine Model	SDEC SC15G500D2
Cylinder Number	6
Aspiration System	Turbocharged, Intercooled
Cooling System	Water Cooled
Governor Type	Electronic
Bore x Stroke	135 x 165 mm
Compression Ratio	15.55:1
Rated Speed	1500RPM
Displacement	11.8L
Rated Power	330KW
Standby Power	373KW
Coolant Capacity	25.5L (Engine Only)
Oil Capacity	33~41L
Fuel System	Direct Injection
Electric Starting System	DC 24V

● FUEL CONSUMPTION

100% Prime Load	81.2L/H
75% Prime Load	59.8L/H
50% Prime Load	41.1L/H
25% Prime Load	21.9L/H

● ALTERNATOR

Number of Phase	3
Rated Power	300KW/375KVA
Frequency	50Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	6/12
Insulation Class	H
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage	A.V.R
Coupling	Flexible Disc

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

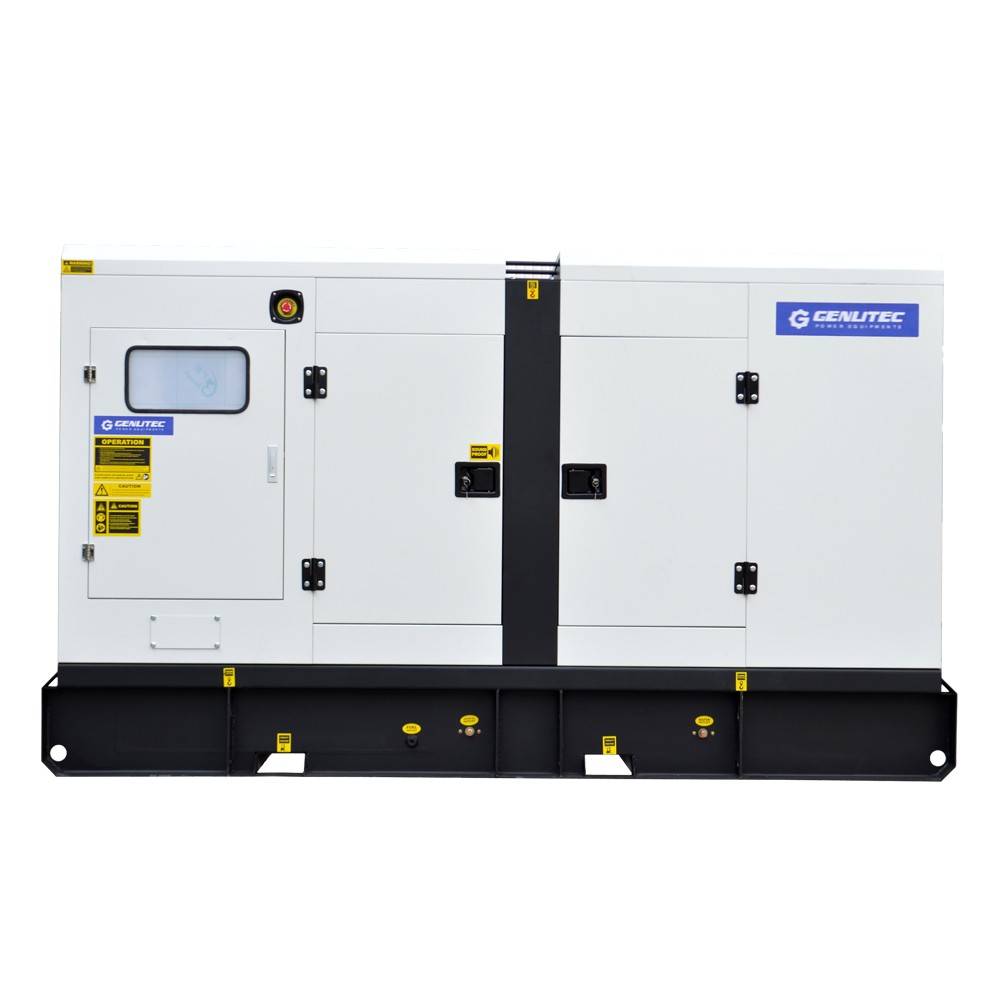

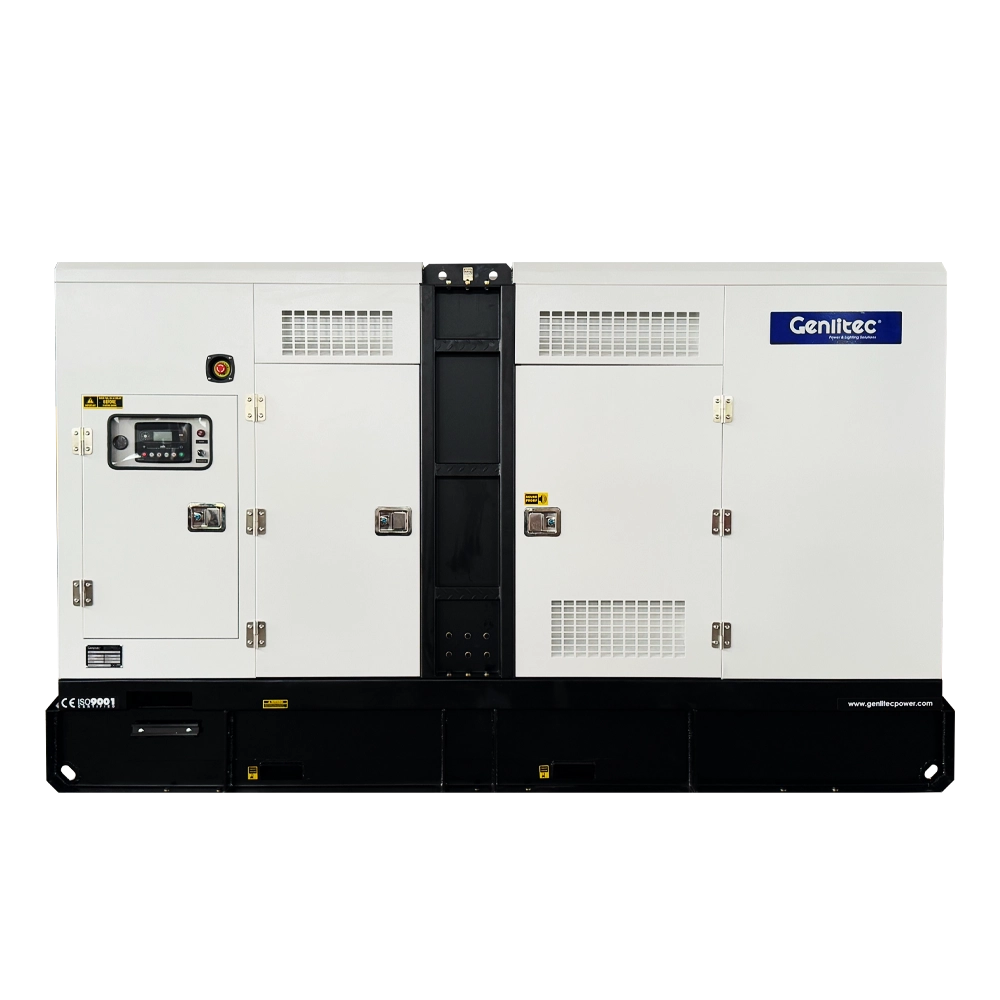

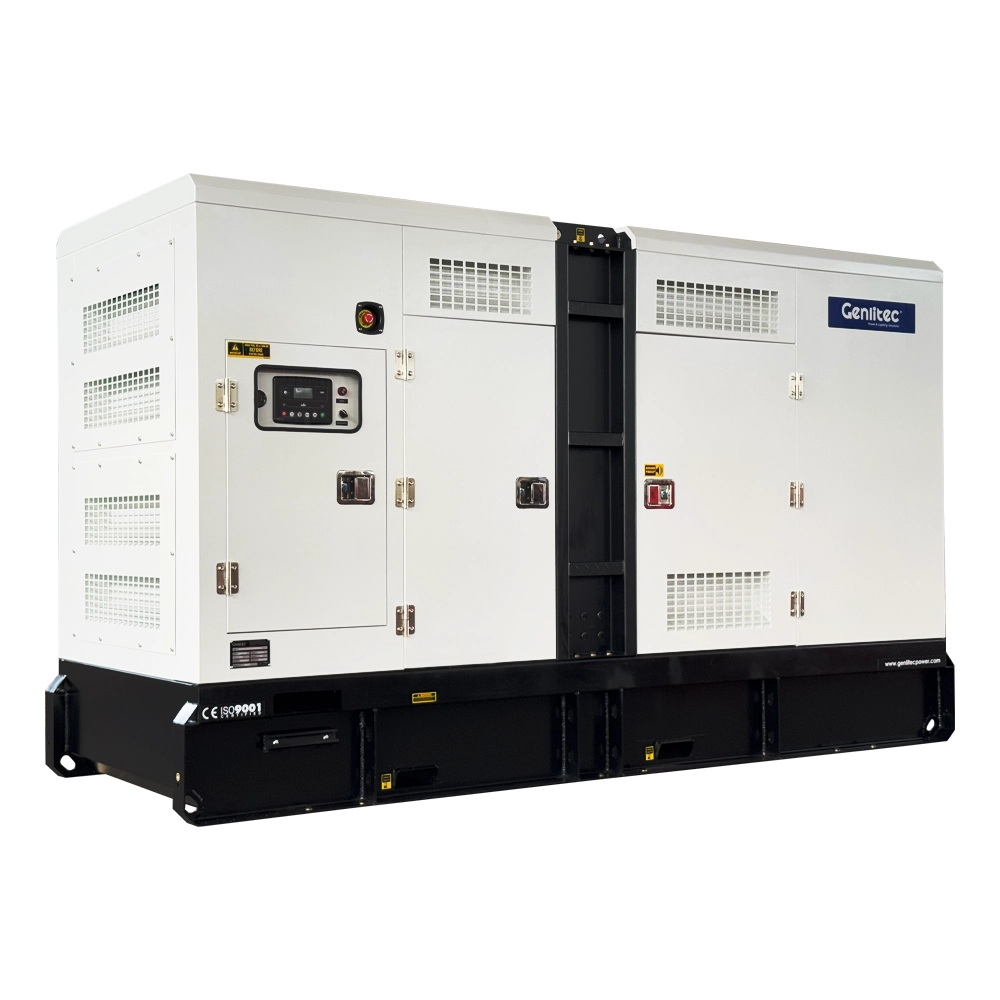

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS (for automatic start & stop when electricity power off & on)

○ Synchronization Panel

○ Heavy-Duty trailer

○ 12 hours fuel tank

○ 24 hours fuel tank

○ Power Sockets (CEE or AUS standard)

○ Heaters

○ Remote & Mornitoring System
