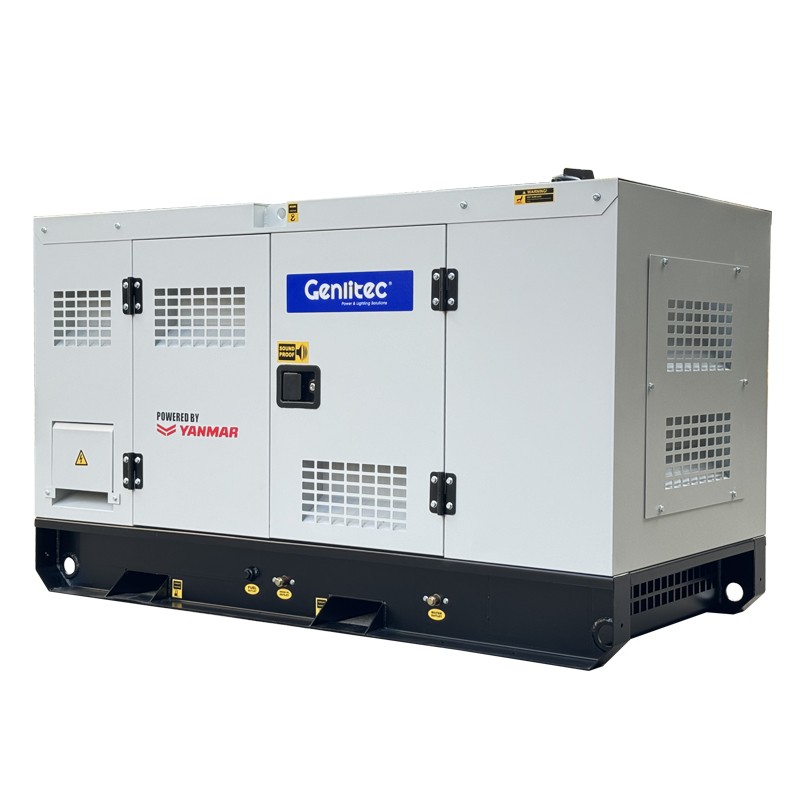

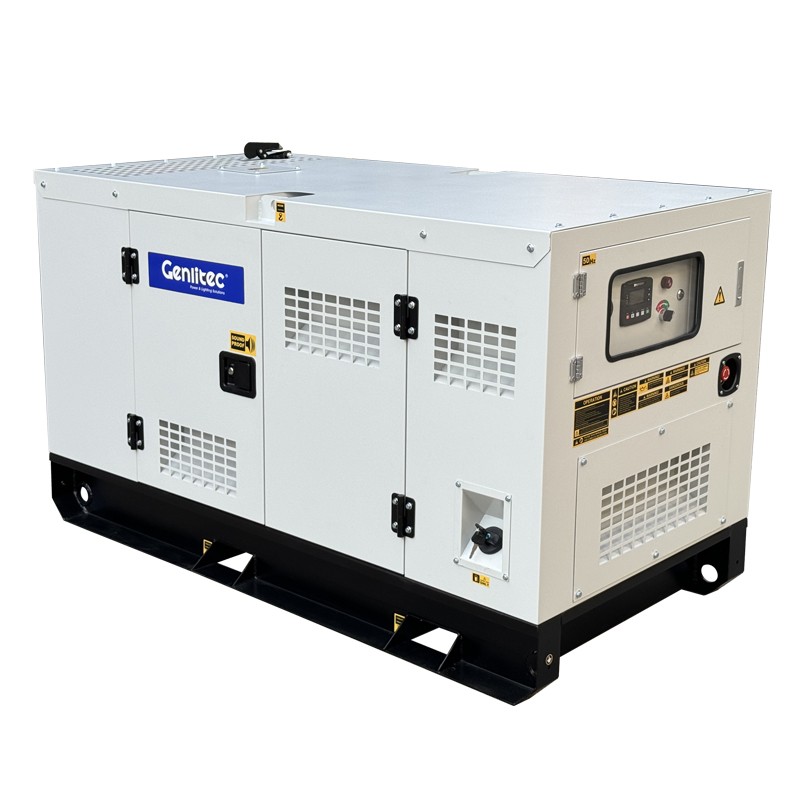

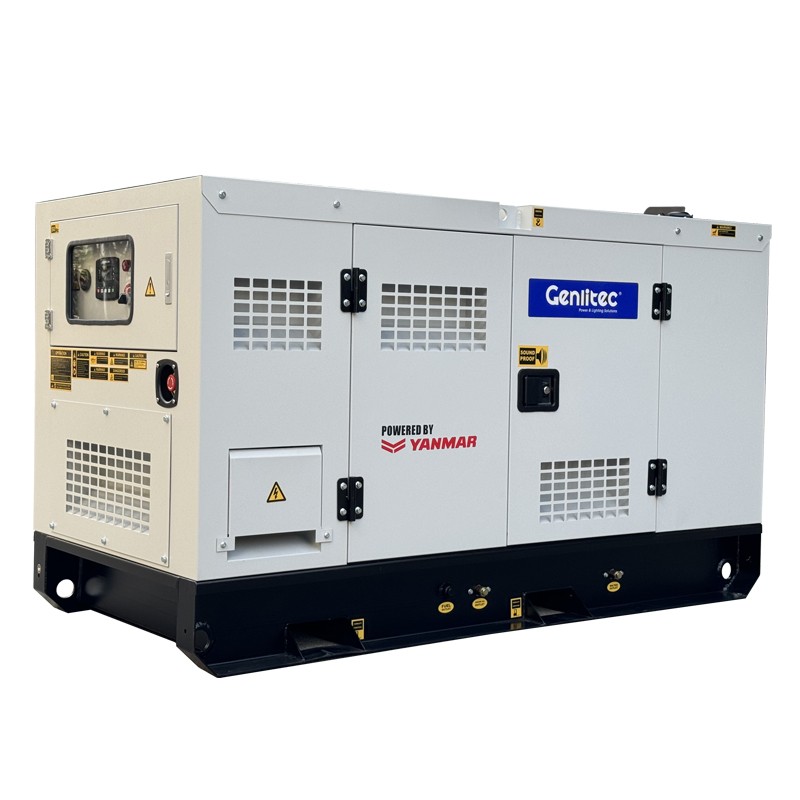

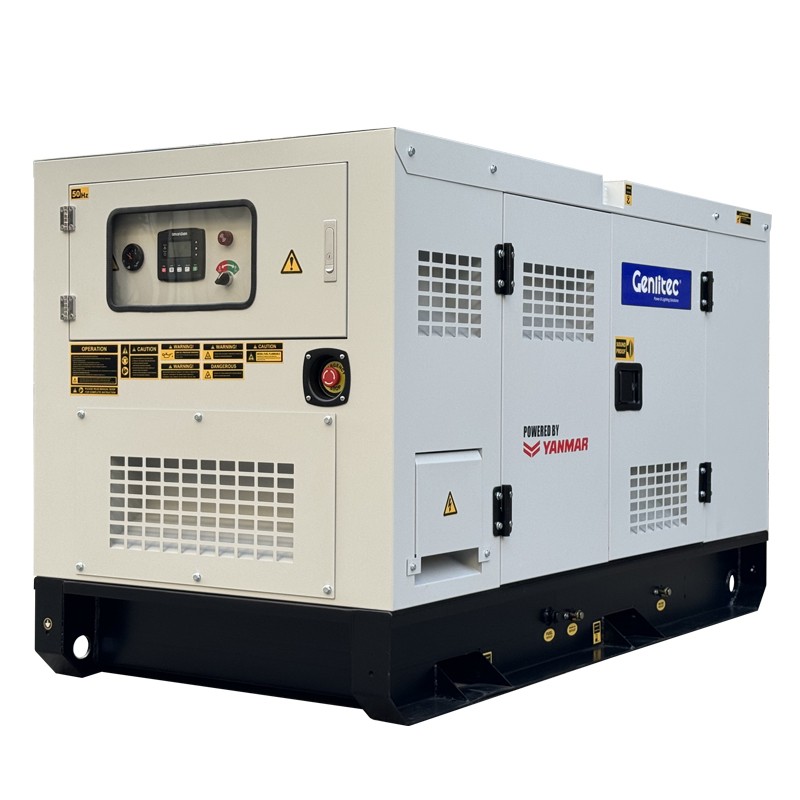

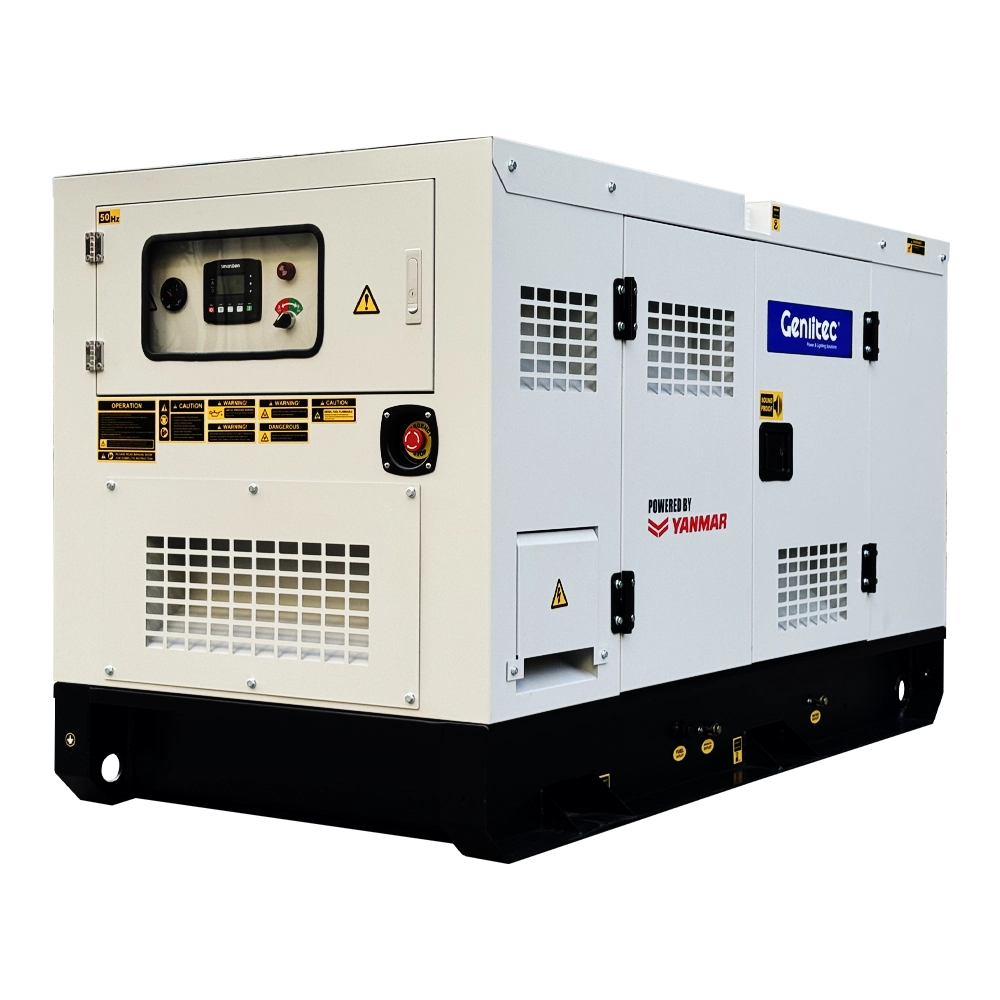

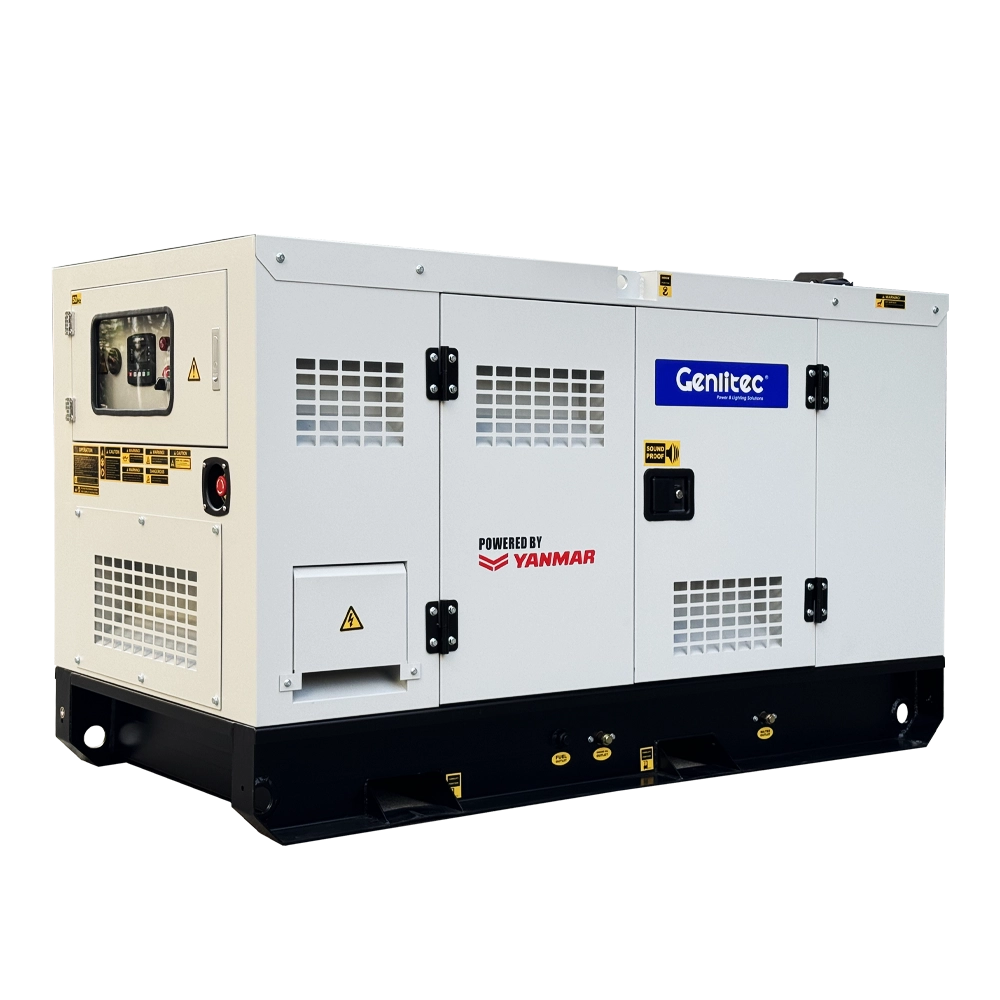

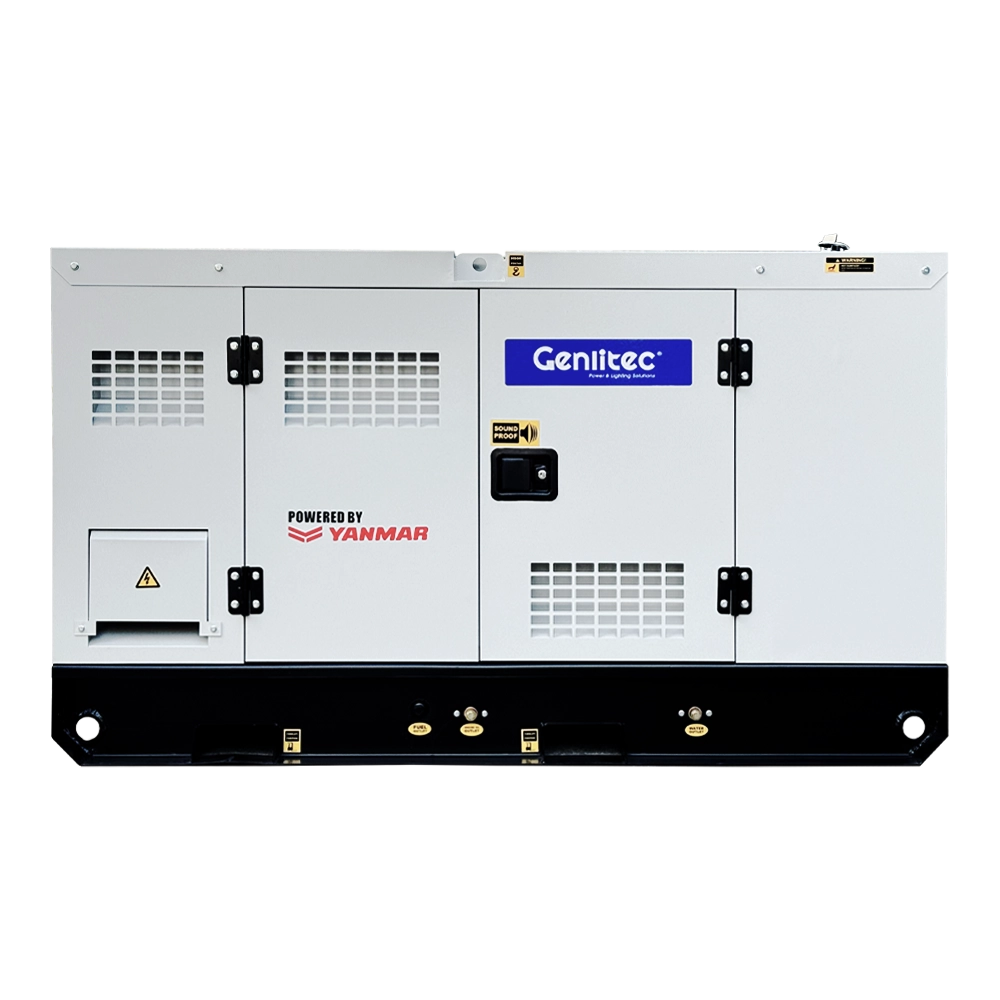

6.5KW/8.0KVA Yanmar Diesel Generator-50Hz
● GENLITEC POWER® 6.5KW/8.0KVA YANMAR DIESEL GENERATOR SET FEATURES
○ Brand new original YANMAR 3TNV76-GGE water cooled diesel engine
○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 380/400/415V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 12V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system
○ CE, ISO9001：2015
● GENERATOR SET
Open Type Model
GYM8D5
Silent Type Model
GYM8S5
Prime Power
6.5KW/8.0KVA
Standby Power
7.2KW/9.0KVA
Phase & Wire
3 Phase, 4 Wires
Power Factor
0.8
Frequency
50Hz
Rated Power
220/380V, 230/400V, 240/415V
Fuel Tank Capacity
20L
● DIESEL ENGINE
Model
YANMAR 3TNV76-GGE
Aspiration System
Natuarl
Cooling Method
Water Cooled
Governor Type
Mechanical
Bore x Stroke
76 x 82 mm
Compression Ratio
17.5:1
Rated Speed
1500 RPM
Displacement
1.116L
Rated Power
8.2KW
Standby Power
9.0KW
Fuel System
Ball-Type Swirl Chamber
Oil Capacity
3.4L
Coolant Capacity
0.9L
Electric Starting System
DC 12V
Cylinder Number
3
● FUEL CONSUMPTION
100% Prime Load
2.5L/H
75% Prime Load
-
50% Prime Load
-
25% Prime Load
-
● ALTERNATOR
Number of Phase
3
Rated Power
8.0KW/10KVA
Frequency
50Hz
Power Factor
0.8
Poles
4
Temp. Rise
125K
Terminals
6/12
Insulation Type
H Class
Ambient Temo.
40℃
IP Rating
IP23
Excitation System
Self-Excited
Bearing
Single Bearing
Coating
Vacuum Impregnation
Voltage Regulator
A.V.R
Coupling
Flexible Disc
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

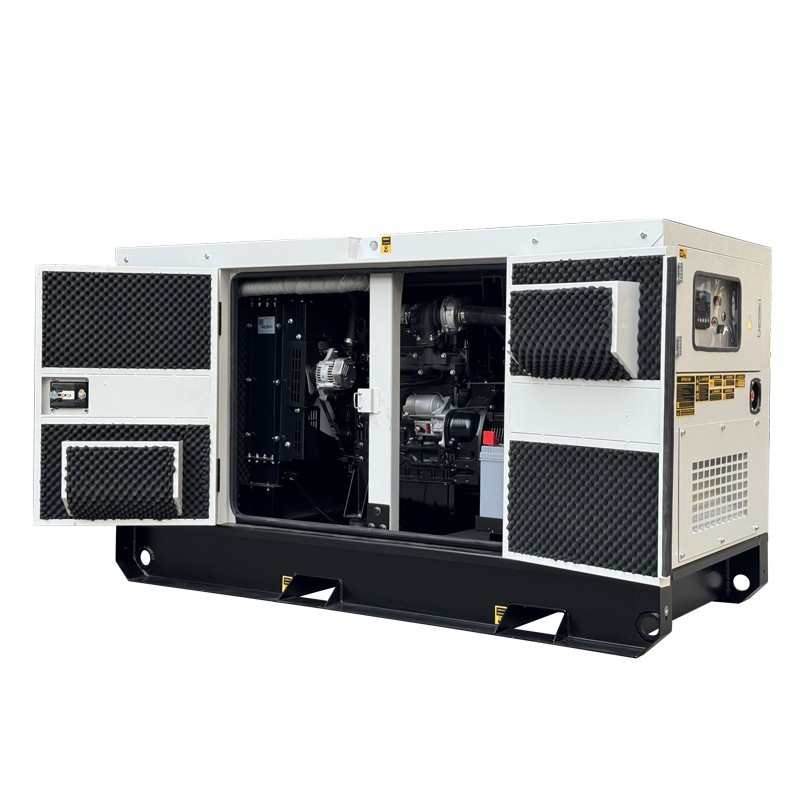

● GENLITEC POWER® D-TYPE SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS (for automatic start & stop when electricity power off & on)
○ Single axle trailer
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
○ Remote Monitoring System (4G, WIFI)
