● GENLITEC POWER® 22KW/22KVA KUBOTA DIESEL GENERATOR SET FEATURES

○ Brand new original KUBOTA V3300-E2BG2 brand water cooled diesel engine

○ STAMFORD or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 230V, Single Phase, 50Hz, 1500RPM, 1.0PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 12V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

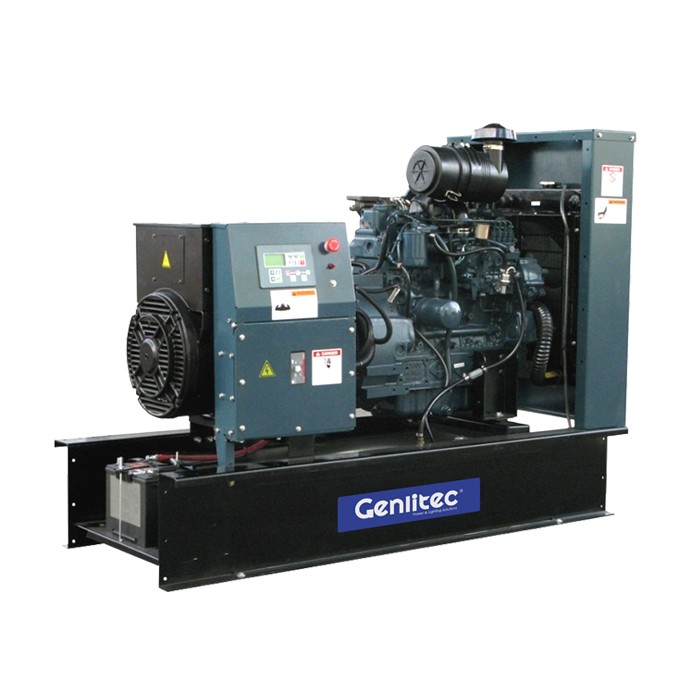

Open Type Model	GPK22D5-1P
Silent Type Model	GPK22S5-1P
Frequency	50Hz
Phase & Wires	Single Phase, 2 Wires
Power Factor	1.0
Prime Power	22KW/22KVA
Standby Power	24KW/24KVA
Rated Voltage	220~240V
Fuel Tank Capacity	50L

● DIESEL ENGINE

Engine Model	Kubota V3300-E2BG2
Aspiration System	Natural
Cooling Method	Water Cooled
Combustion System	E-TVCS
Bore x Stroke	98 x 110mm
Compression Ratio	23:1
Rated Speed	1500 RPM
Displacement	3.318L
Rated Power	26.3KW
Standby Power	28.9KW
Fuel Injection Pump	Bosch Type PFR MD Pump
Cylinder Number	4
Oil Capacity	13.2L
Charger Alternator Capacity	12V
Electric Starting System	DC 12V

● FUEL CONSUMPTION

100% Prime Load	-
75% Prime Load	5.3L/H
50% Prime Load	-
25% Prime Load	-

● ALTERNATOR

Coupling	Flexible Disc
Number of Phase	Single
Rated Power	22KW/22KVA
Frequency	50Hz
Power Factor	1.0
Poles	2
Temp. Rise	125K
Insulation Class	H
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-excited
Bearing	Single
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

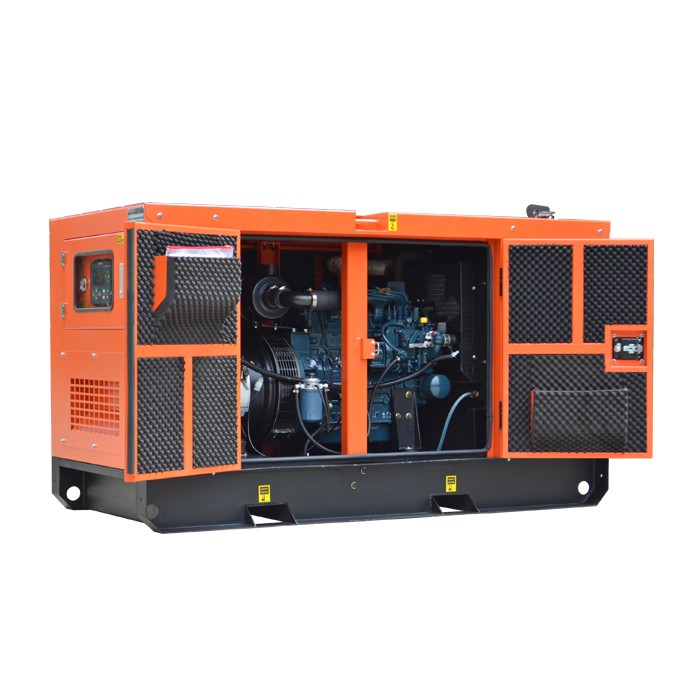

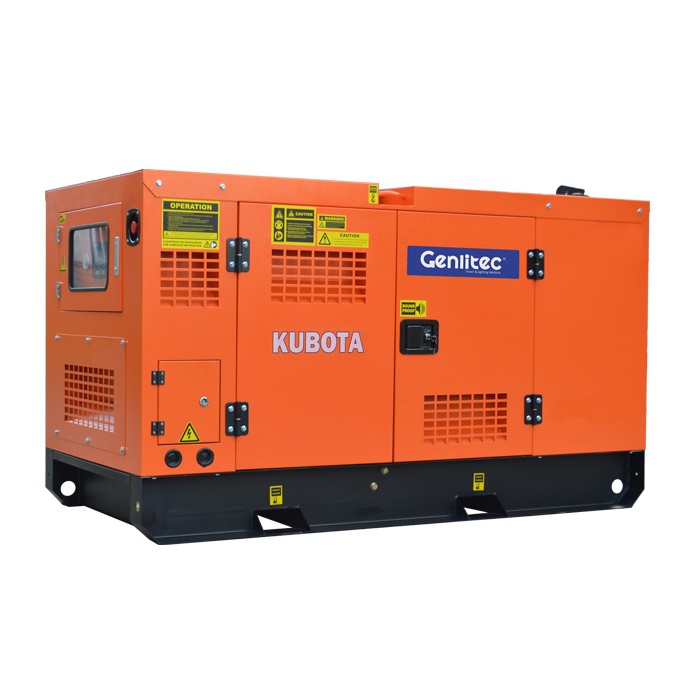

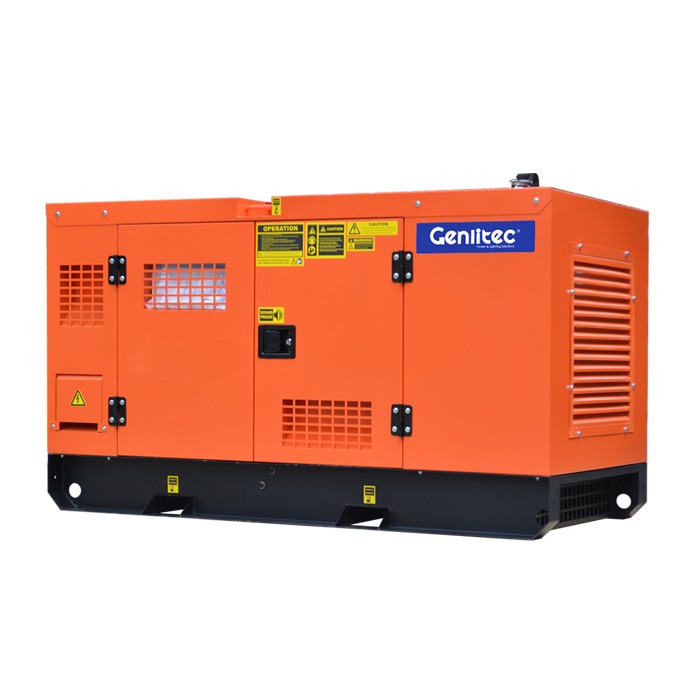

● GENLITEC POWER® D-TYPE SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS (for automatic start & stop when electricity power off & on)

○ Heavy-Duty trailer

○ 12 hours fuel tank

○ 24 hours fuel tank

○ Power Sockets (CEE or AUS standard)

○ Heaters

○ Remote & Monitoring System
