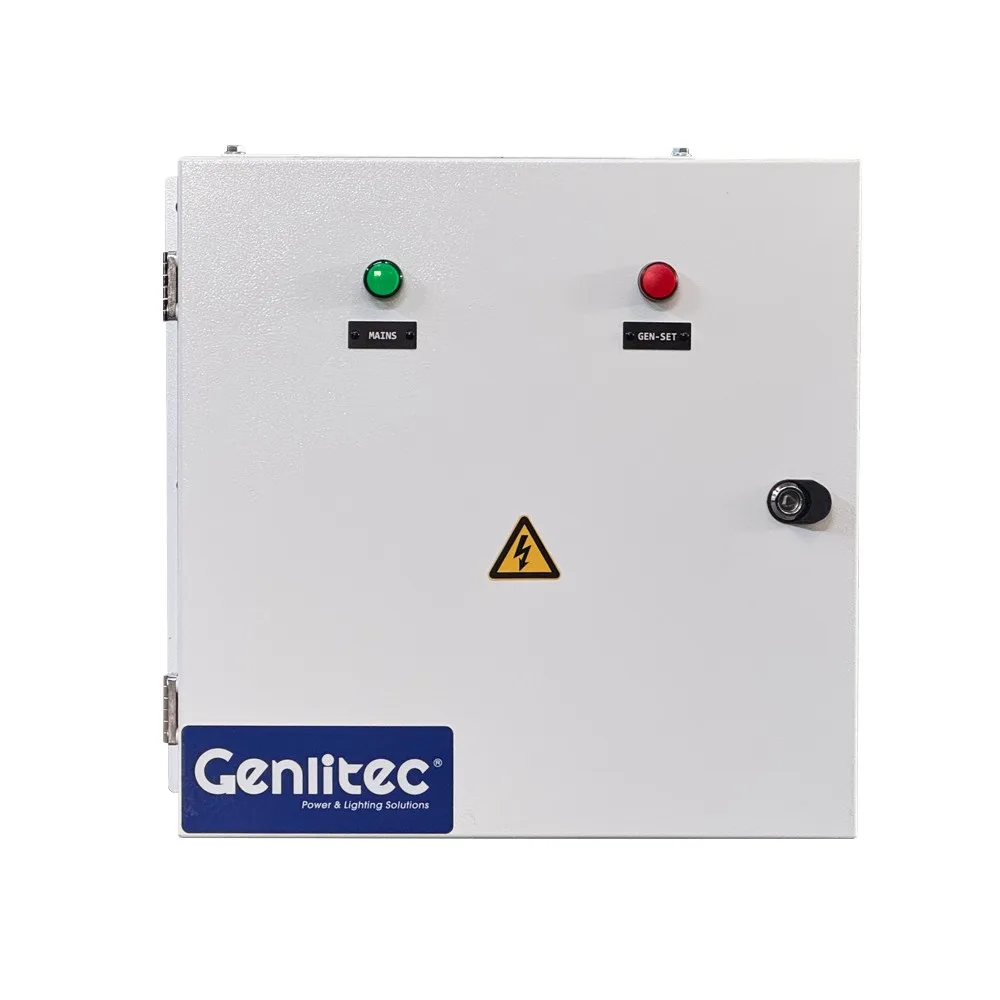

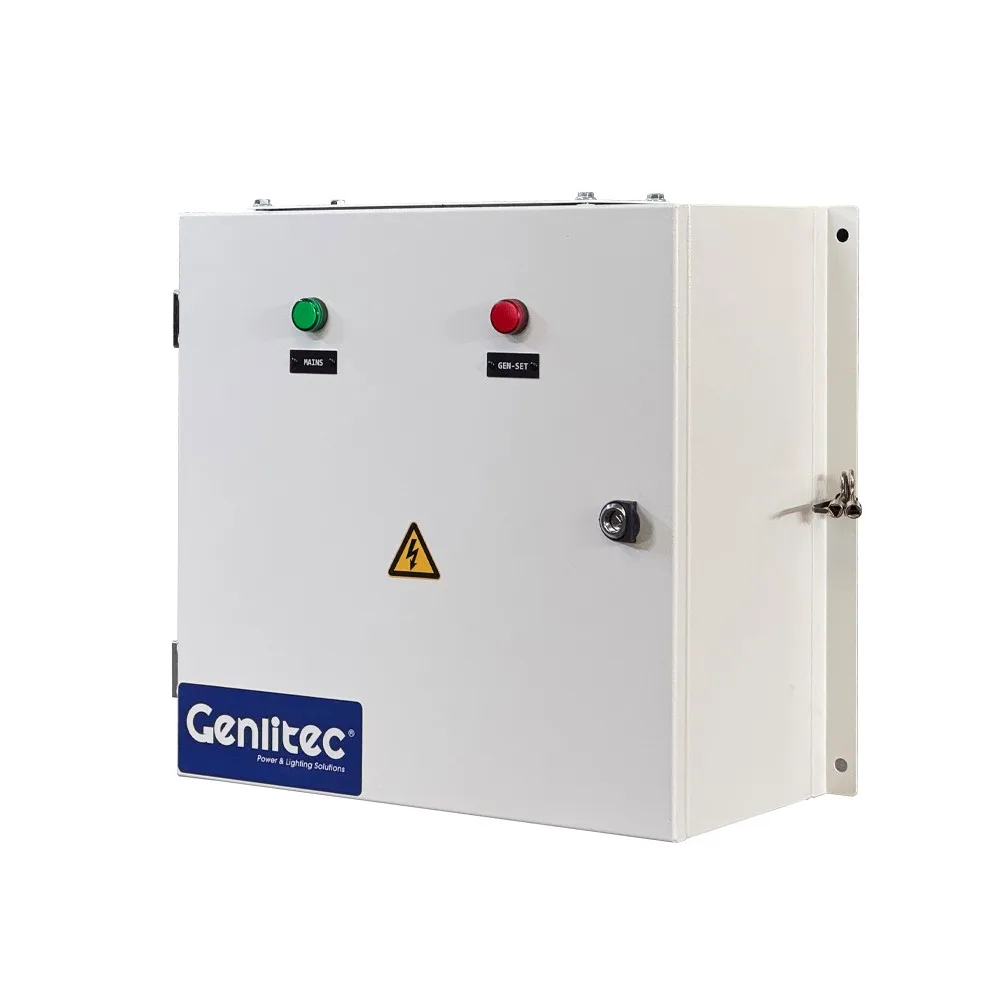

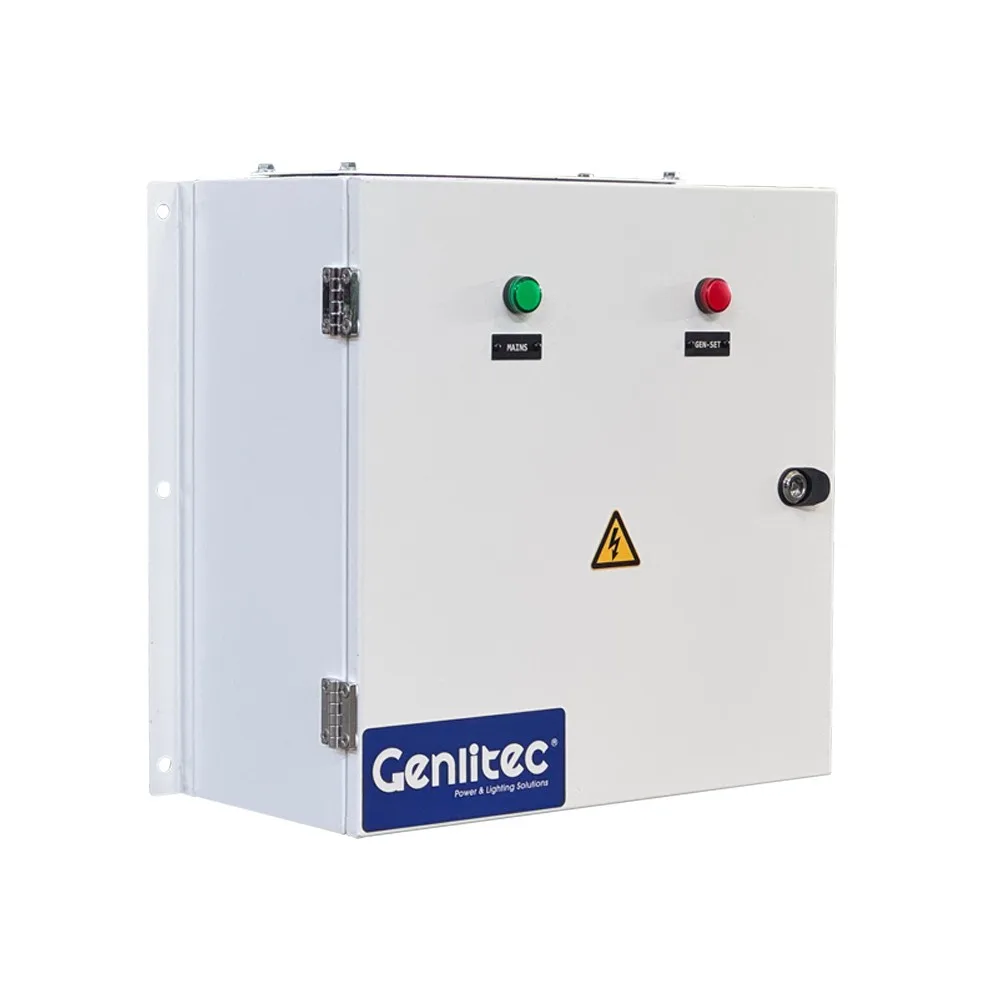

GENLITEC POWER® 125A Automatic Transfer Switch (ATS) Panel

GTS125 125A Automatic Transfer Switch (ATS) Panel

Short Description:

GENLITEC POWER® 125A Automatic Transfer Switch (ATS) Panel is designed to provide seamless power transfer between the main utility supply and backup generators. This ATS panel ensures uninterrupted power supply, making it an ideal choice for industrial, commercial, and residential applications....

Model: GTS125
Operation Current: 125A
Frequency: 50/60Hz
Phase: 3-Phase (Single phase for option)
Voltage: 208V, 220V, 380V, 400V, 415V

Send email to us Download as PDF

Product Details

Product Tags

GENLITEC POWER® Automatic Transfer Switch (ATS) panels, also referred to as automatic main failure (AMF) panels, the power switch to emergency standby generators in the event of a significant loss of mains power or total blackout. Without ATS panels, generators need to be operated manually and that can mean lost data, potential damage to electrical equipment and huge amounts of disruption.

These panels are used for controlling power supply in various industries like processing plants, hospitals etc. On the request of the clients, we customized these panels (both automatic and manual modes) to meet client-specific requirements.

GENLITEC POWER® GTS125 ATS PANEL FEATURES

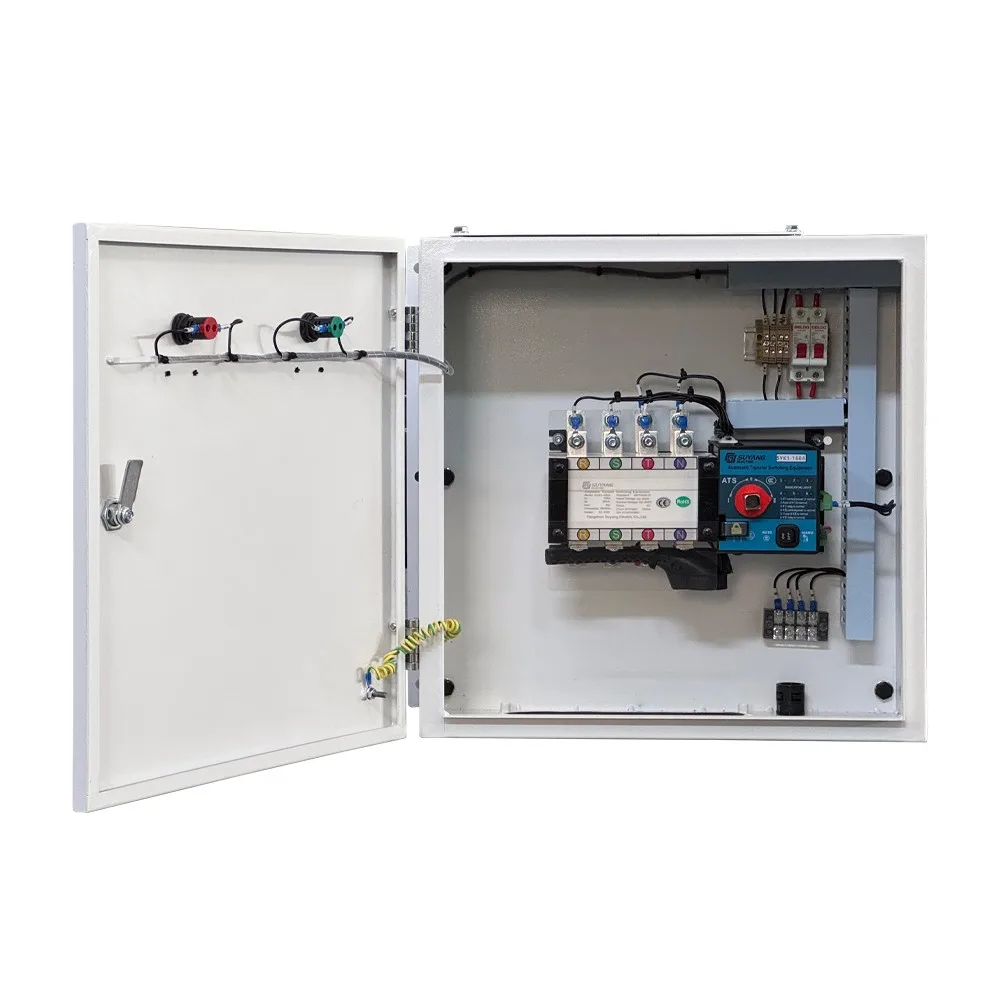

● 1 x 4 pole load transfer switch

● 1 x 3 phase and neutral mains detector with hysteresis

● 2 x lamp indicators

PARAMETERS

ATS switch model (AISIKAI or SUYANG brand)	SKT2-125A/4P
Rated current (In)	125A
Conventional thermal current (Ith)	125A
Rated insulation voltage of copper bar (Ui)	1000V
Rated impulse withstands voltage (Uimp)	12KV
Rated operating voltage of the copper bar (Ue)	AC 440V
Use category	AC 33A
Rated limiting short-circuits current	17KA
Rated limiting short-circuits current - Fuses for protection (Iq)	100KA
Rated limiting short-circuits current - Breaker for protection (Iq)	50KA
Transferring time (I - II or II - I)	1.2S
Control input voltage	AC 220V
Rated control voltage - Start	40W
Rated control voltage - Normal	18W

BENEFITS

● Enhanced safety. Double-throw contacts with inherent mechanical interlocking to prevent connection of generator and utility sources.

● High reliability, over 8000 times use. Electrically operated, mechanically held by a simple, over-center mechanism. The main components are worldwide famous brands.

● High electromagnetic compatibility, strong anti-interference ability.

● Automatization. No external connection of control components needed.

● Small sized and light.

OPTIONS

● SMARTGEN HAT560N ATS controller

● ABB ATS switch

● Schneider ATS switch

● Socomec ATS switch

DIMENSION
