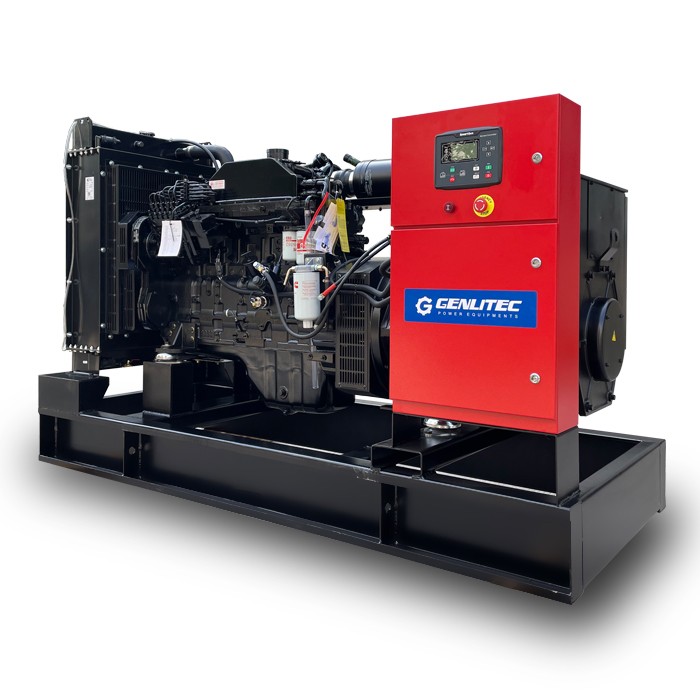

275KVA Cummins (6LTAA9.5-G3) Diesel Generator-50Hz

275KVA Cummins (6LTAA9.5-G3) Diesel Generator-50Hz
  • 275KVA Cummins (6LTAA9.5-G3) Diesel Generator-50Hz
  • 275KVA Cummins (6LTAA9.5-G3) Diesel Generator-50Hz
  • 275KVA Cummins (6LTAA9.5-G3) Diesel Generator-50Hz
  • 275KVA Cummins (6LTAA9.5-G3) Diesel Generator-50Hz
  • 275KVA Cummins (6LTAA9.5-G3) Diesel Generator-50Hz

Short Description:

GENLITEC POWER® GPC275D5-I (open type), GPC275S5-I (silent type) diesel generator sets powered by original CUMMINS 6LTAA9.5-G3, with prime power 220KW/275KVA and standby power 240KW/300KVA....


  • Open Type Model: GPC275D5-I
  • Silent Type Model: GPC275S5-I
  • Engine: CUMMINS 6LTAA9.5-G3
  • Prime Power: 220KW/275KVA
  • Standby Power: 240KW/300KVA

Product Details

Product Tags

Product Video


GENLITEC POWER® 220KW/275KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS 6LTAA9.5-G3 brand water cooled diesel engine

STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC275D5-I
Silent Type Model GPC275S5-I
Prime Power 220KW/275KVA
Standby Power 240KW/300KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Freuquency 50Hz
Rated Voltage 220/380V, 230/400V, 240/415V
Fuel Tank Capacity 420L

● DIESEL ENGINE


Model CUMMINS 6LTAA9.5-G3
Number of Cylinder 6
Aspiration System Turbo Charged, Air-Cooled
Cooling Method Water Cooled
Governor Type Electronic
Bore x Stroke 116 x 148 mm
Compression Ratio 16.6:1
Rated Speed 1500RPM
Displacement 9.5L
Rated Power 250KW
Standby Power 280KW
Fuel System Direct Injection
Oil Capacity 28.1L
Coolant Capacity 11.1L (Engine Only)
Electric Starting System DC 24V

● FUEL CONSUMPTION

100% Prime Load 58L/H
75% Prime Load 44L/H
50% Prime Load 30L/H
25% Prime Load 16L/H

ALTERNATOR


Number of Phase 3
Rated Power 220KW/275KVA
Frequency 50Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 12
Insulation Type H Class
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL


Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE


Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS Panel (for automatic start & stop when electricity power off & on)

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)

○ 4G/Wifi Remote & Monitoring System

○ Sychronization Panel
