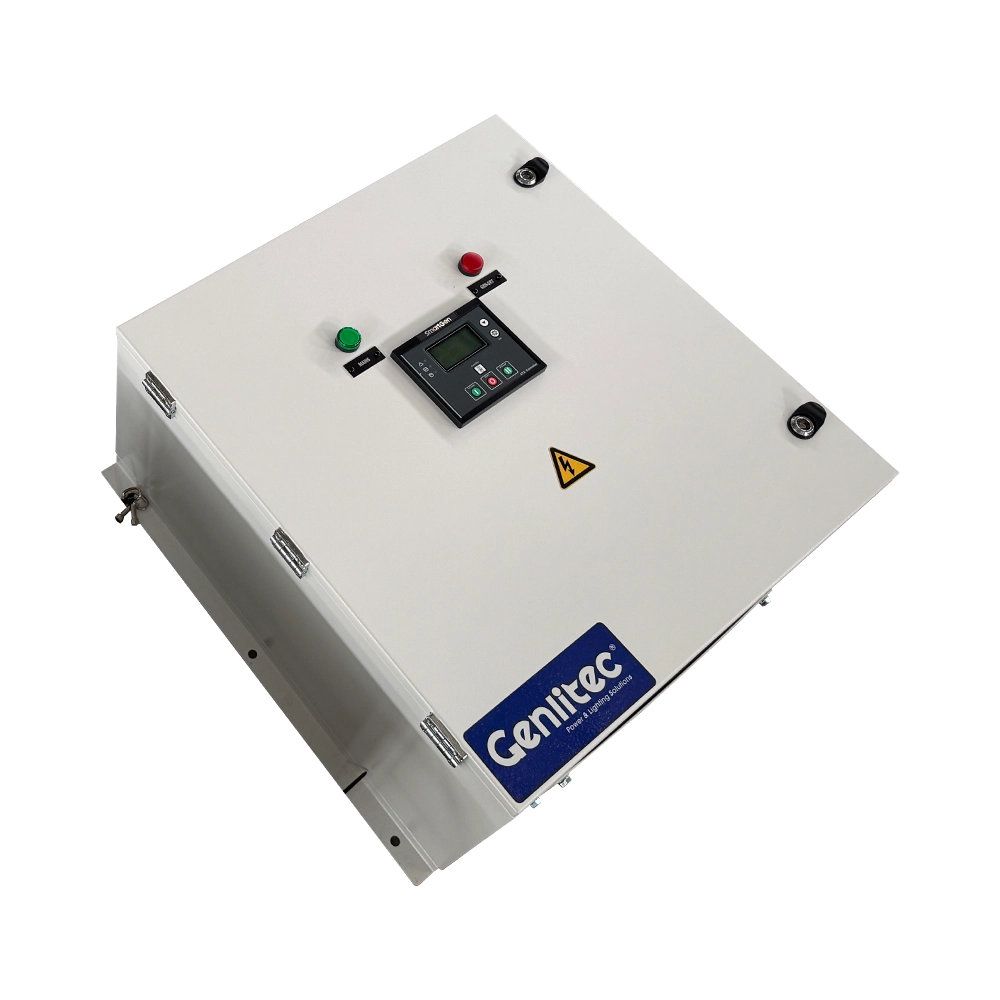

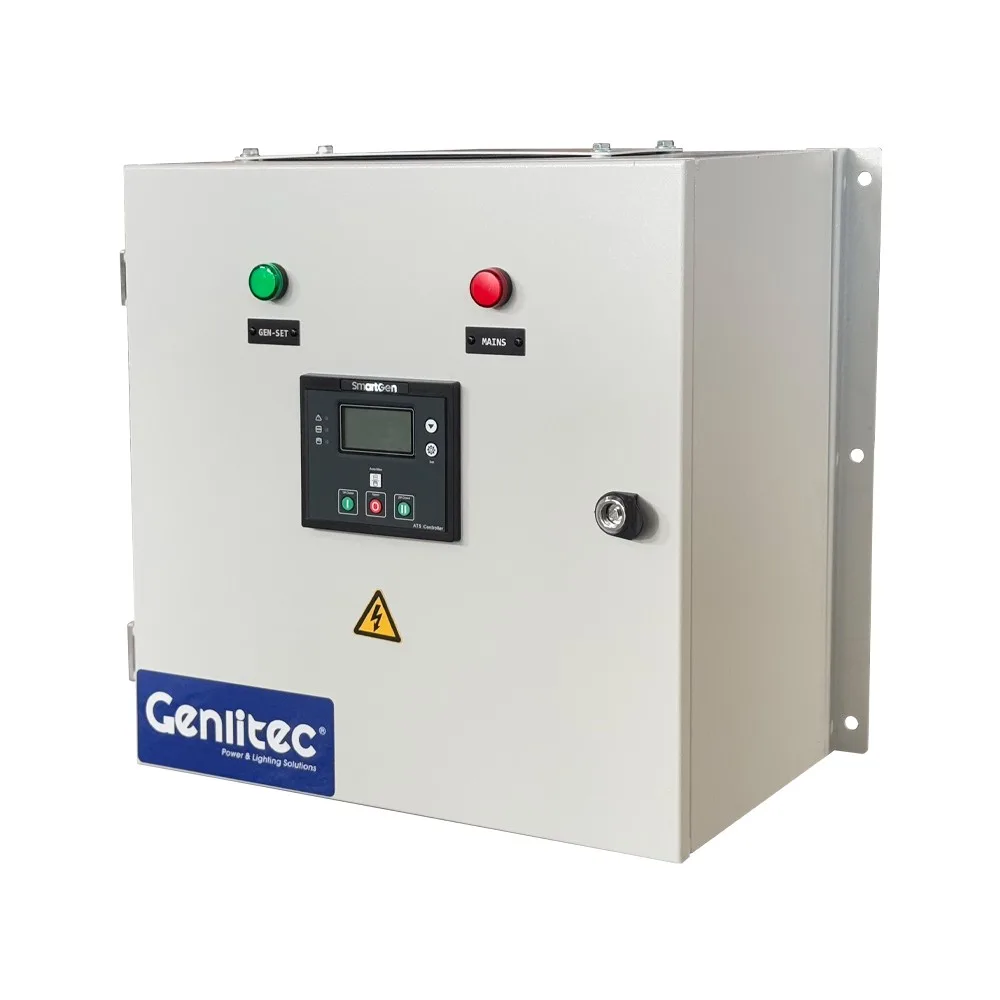

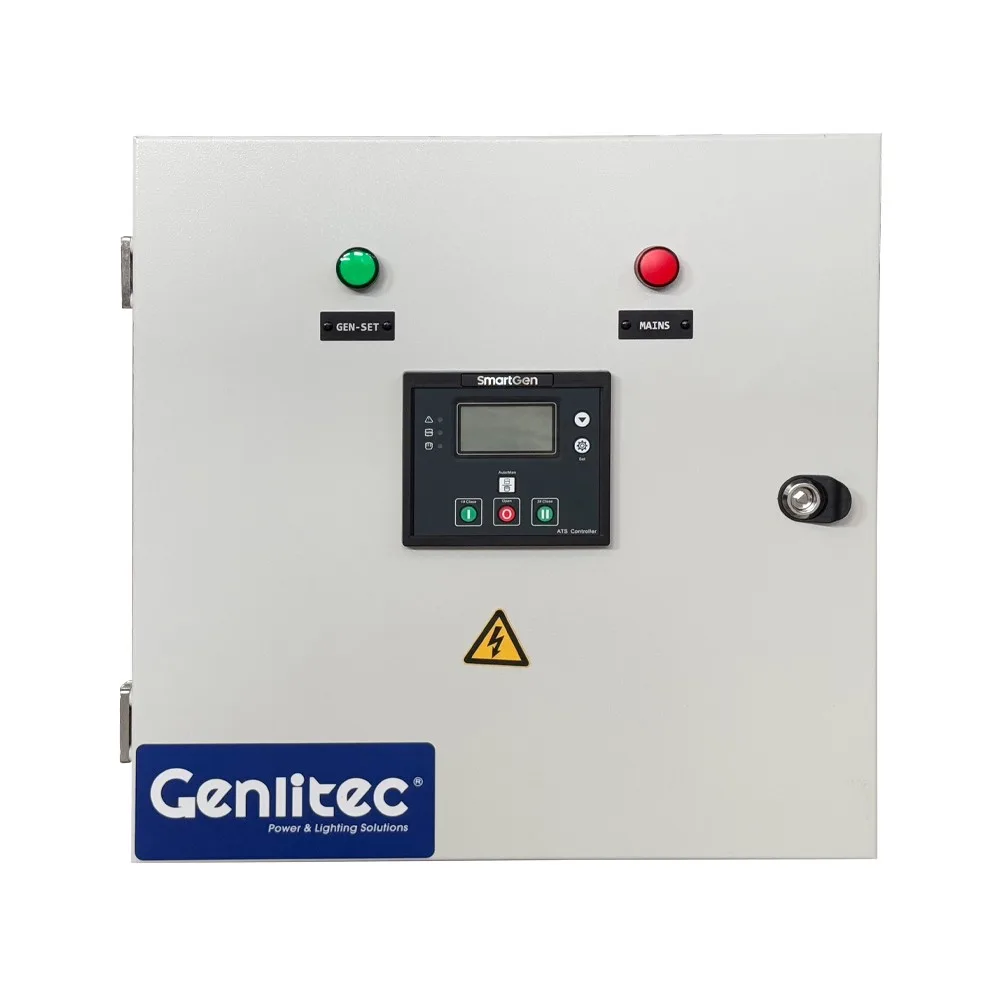

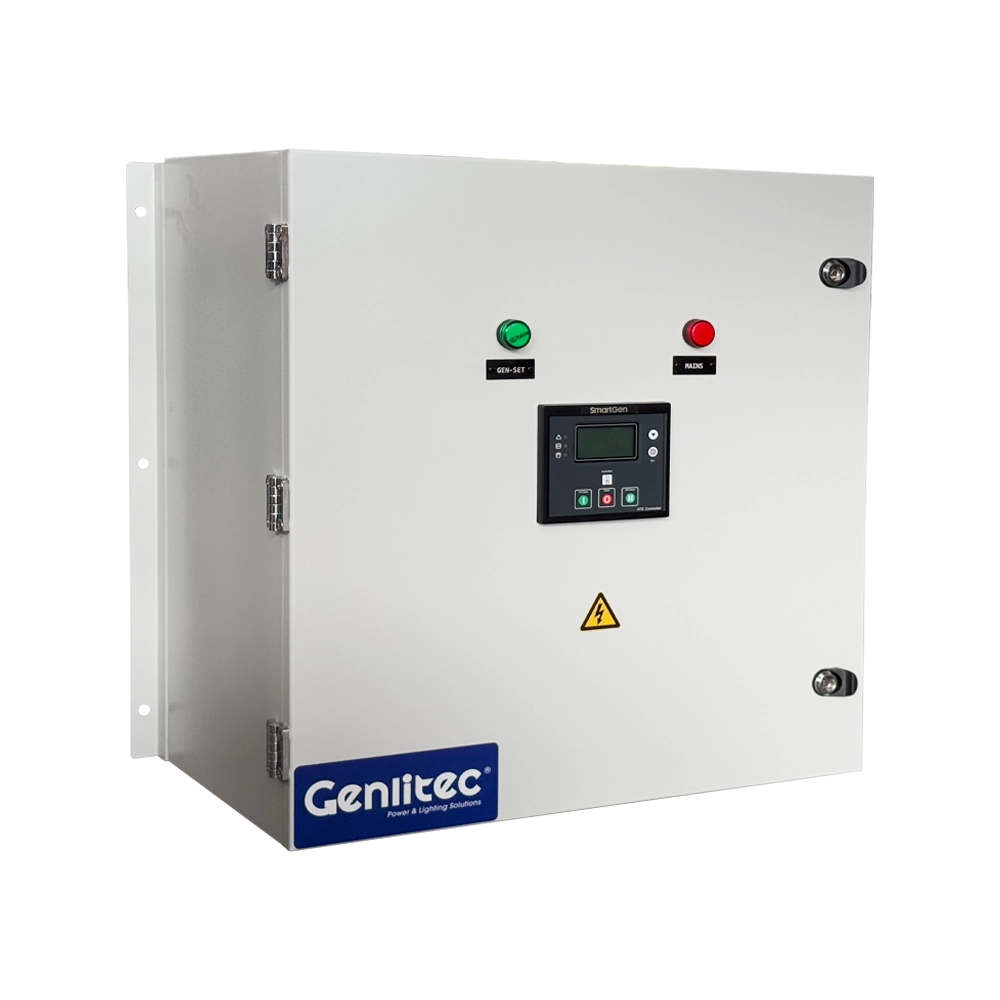

GENLITEC POWER® 630A Automatic Transfer Switch (ATS) Panel

GTS630 630A Automatic Transfer Switch (ATS) Panel

Short Description:

GENLITEC POWER® GTS630 630A Automatic Transfer Switch (ATS) Panel is designed for seamless and automatic power switching between the main utility supply and backup generators. Engineered for high-power applications, this ATS ensures uninterrupted power supply, reducing downtime and enhancing operational stability in mission-critical environments such as industrial plants, commercial facilities, da...

Model: GTS630
Operation Current: 630A
Frequency: 50/60Hz
Phase: 3-Phase (Single phase for option)
Voltage: 208V, 220V, 380V, 400V, 415V

Send email to us Download as PDF

Product Details

Product Tags

GENLITEC POWER® Automatic Transfer Switch (ATS) panels, also referred to as automatic main failure (AMF) panels, the power switch to emergency standby generators in the event of a significant loss of mains power or total blackout. Without ATS panels, generators need to be operated manually and that can mean lost data, potential damage to electrical equipment and huge amounts of disruption.

These panels are used for controlling power supply in various industries like processing plants, hospitals etc. On the request of the clients, we customized these panels (both automatic and manual modes) to meet client-specific requirements.

GENLITEC POWER® GTS630 ATS PANEL FEATURES

● 1 x 4 pole load transfer switch

● 1 x 3 phase and neutral mains detector with hysteresis

● 2 x lamp indicators

PARAMETERS

ATS switch model (AISIKAI or SUYANG brand)	SKT1-630A/4P
Rated current (In)	630A
Conventional thermal current (Ith)	630A
Rated insulation voltage of copper bar (Ui)	1000V
Rated impulse withstands voltage (Uimp)	12KV
Rated operating voltage of the copper bar (Ue)	AC 440V
Use category	AC 33A
Rated limiting short-circuits current	67.2KA
Rated limiting short-circuits current - Fuses for protection (Iq)	100KA
Rated limiting short-circuits current - Breaker for protection (Iq)	65KA
Transferring time (I - II or II - I)	0.6S
Control input voltage	AC 220V
Rated control voltage - Start	325W
Rated control voltage - Normal	62W

BENEFITS

● Enhanced safety. Double-throw contacts with inherent mechanical interlocking to prevent connection of generator and utility sources.

● High reliability, over 8000 times use. Electrically operated, mechanically held by a simple, over-center mechanism. The main components are worldwide famous brands.

● High electromagnetic compatibility, strong anti-interference ability.

● Automatization. No external connection of control components needed.

● Small sized and light.

OPTIONS

● SMARTGEN HAT560N ATS controller

● ABB ATS switch

● Schneider ATS switch

● Socomec ATS switch

DIMENSION
