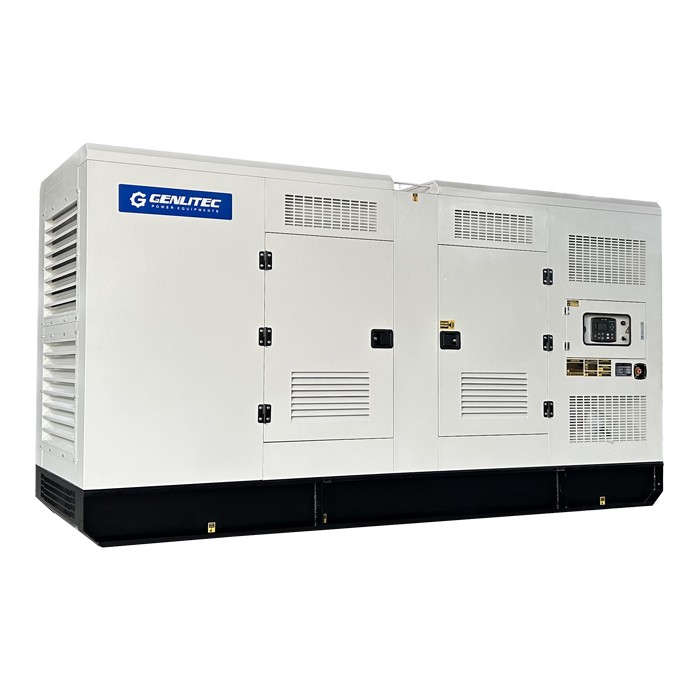

● GENLITEC POWER® 460KW/575KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS KTAA19-G6 brand water cooled diesel engine

○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

Open Type Model	GPC575D5
Silent Type Model	GPC575S5
Prime Power	460KW/575KVA
Standby Power	520KW/650KVA
Phase & Wires	3 Phase, 4 Wires
Power Factor	0.8
Frequency	50Hz
Rated Voltage	220/380V, 230/400V, 240/415V
Fuel Tank Capacity	870L

● DIESEL ENGINE

Model	CUMMINS KTAA19-G6
Cylinder Number	6
Aspiration System	Turbocharged, Air to Air Cooled
Cooling Method	Water Cooled
Governor Type	Electronic
Bore x Stroke	159 x 159 mm
Compression Ratio	13.9:1
Rated Speed	1500RPM
Displacement	19L
Rated Power	520KW
Standby Power	570KW
Coolant Capacity	26.5L (Engine Only)
Oil Capacity	37.9L
Fuel System	CUMMINS PT Pump
Electric Starting System	DC 24V

● FUEL CONSUMPTION

100% Prime Load	112KG/H
75% Prime Load	85KG/H
50% Prime Load	56KG/H
25% Prime Load	32KG/H

● ALTERNATOR

Number of Phase	3
Rated Power	460KW/575KVA
Frequency	50Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	12
Insulation Class	H Class
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexble Disc

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

● SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS Panel (for automatic start & stop when electricity power off & on)

○ Single axle trailer

○ 12 hours fuel tank

○ 24 hours fuel tank

○ Power Sockets (CEE or AUS standard)

○ Remote & Mornitoring System (4G or Wifi)

○ Sychronization Panel
